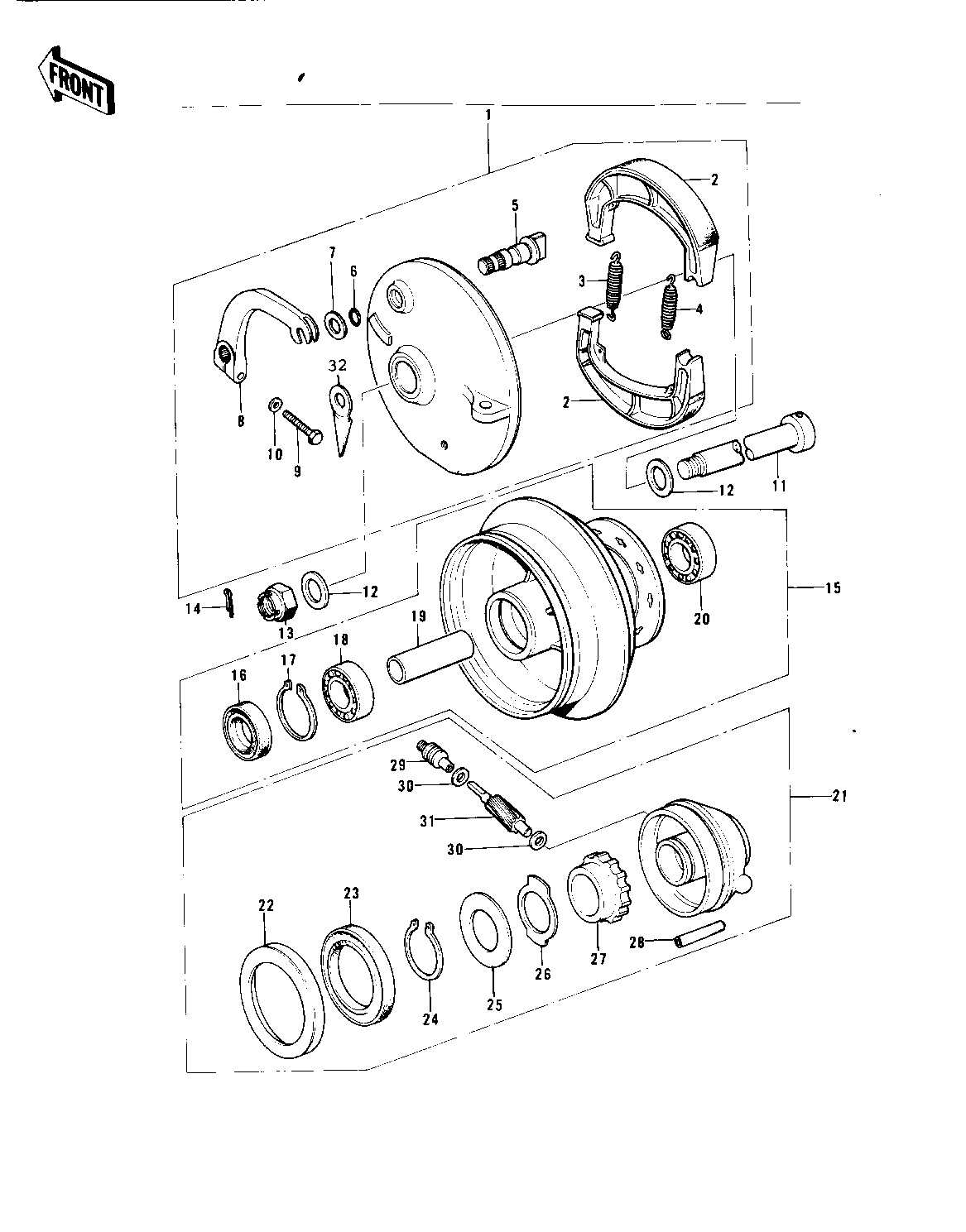

1975 KT250-A - FRONT HUB/BRAKE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PANEL-ASY,FR BRK BLK 1 41035-064-80 1 BUFF FINISH
PANEL ASY,FR BK,BUFF 1 41035-078-80 1 BUFF FINISH
SHOE,BRAKE 2 41048-015 2
SPRING,BRAKE SHOE 3 92081-1766 1
SPRING,BRAKE SHOE 4 92081-1550 1
CAM SHAFT-FRONT BRAKE 5 41050-018 1
"0" RING,11MM 6 92055-004 1
WASHER BRAKE CAM SHT 7 41052-001 1
LEVER,FRONT BRAKE CAM 8 41053-024 1
LEVER,FRNT BRAKE CAM 8 41053-026 1 KT250A-2
BOLT-UPSET,6X20 9 112G0620 1
BOLT-UPSET 9 112G0625 1 KT250A-2
WASHER PLAIN 6MM 10 410B0600 1
AXLE,FRONT 11 41068-047 1
WASHER PLAIN 12MM 1 411B1200 2
NUT-CASTLE 13 320G1200 1
PIN COTTER 3.0X25 14 550D3025 1
DRUM-ASSY,FR BRK,BUFF 15 41034-031-80 1 BUFF FINISH
OIL SEAL,FR BK DRUM 16 92050-059 1
CIRCLIP.37MM 17 481J3700 1
BEARING BALL #6301 18 601B6301 1
SPACER,FR HUB BEARING 19 41039-025 1
BEARING BALL #6201 20 601B6201 1
CASE ASSY,SPEED GEAR 21 41078-009 1
CASE ASSY,SPEED GEAR 21 41078-009 1 KT250A-2
DUST COVER 22 41042-013 1
OIL SEAL 23 654A405208 1
CIRCLIP,19MM 24 480J1900 1
WASHER,THRUST 25 41065-004 1
RECEIVER,SPEED GEAR 26 41064-011 1
GEAR,SPEEDOMETER 27 41059-024 1 24T
PIN,SPRING 28 41082-001 1
BUSH,SPEEDMETER CABLE 29 41062-005 1
WASHER THRST SPD PINI 30 41063-001 2
PINION,SPEEDOMETER 31 41060-015 1
INDICATOR,FR BK SHOE 32 41085-018 1 KT250A-2
