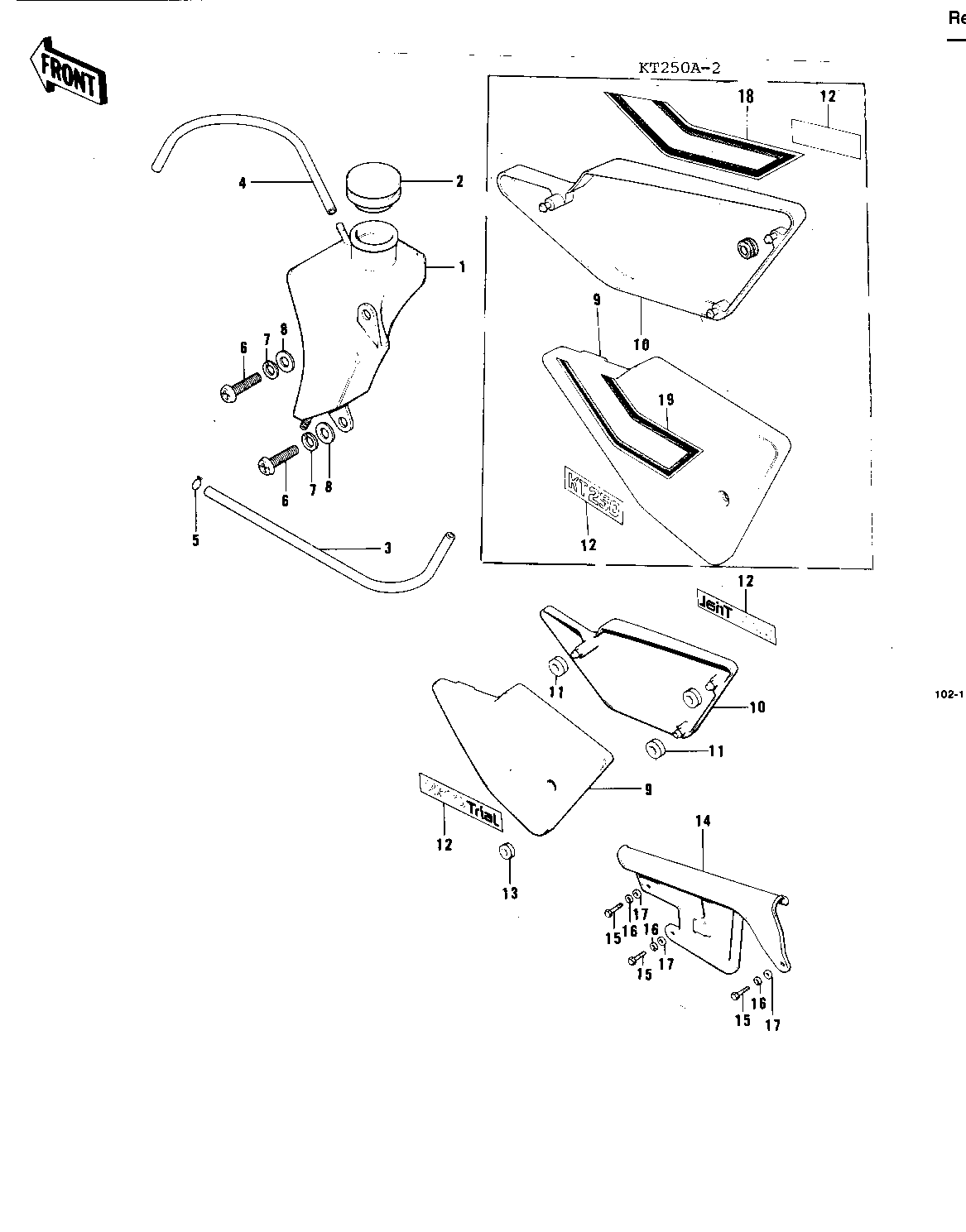

1975 KT250-A - SIDE COVERS/OIL TANK/CHAIN COVER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK,OIL | 1 | 52001-044 | 1 | ||
| CAP-OIL TANK | 2 | 51049-1004 | 1 | ||
| PIPE,OIL TANK | 3 | 92059-115 | 1 | ||
| TUBE-VINYL,5X400 | 4 | 700Q05400 | 1 | ||
| CLAMP-PIPE | 5 | 92037-072 | 2 | ||
| SCREW PAN HEAD 6X14 | 6 | 220B0614 | 2 | ||
| WASHER SPRING 6MM | 7 | 461F0600 | 2 | ||
| WASHER 6.5X20X1.6T | 8 | 92022-125 | 2 | ||
| COVER,L.H SIDE,L.GREN | 9 | 36001-050-2G | 1 | ||
| COVER,L.H SIDE,LIME | 9 | 36001-050-1Y | 1 | KT250A-2 | |
| COVER,RH SIDE,LIME | 10 | 36007-044-1Y | 1 | ||
| COVER,RH SIDE,LIME | 10 | 36007-044-1Y | 1 | KT250A-2 | |
| GROMMET | 11 | 92071-056 | 6 | ||
| EMBLEM,SIDE COVER | 12 | 56018-191 | 2 | ||
| DECAL,SIDE COVER | 12 | 56018-230-SP | 2 | KT250A-2 | |
| DECAL,SIDE COVER | 12 | 56018-230-SP | 2 | KT250A-2 | |
| GROMMET,L.H SIDE COV | 13 | 92071-080 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 14 | 36014-060-21 | 1 | ||
| CASE-CHAIN,M SILVER | 14 | 36014-060-1W | 1 | KT250A-2 | |
| SCREW PAN HEAD 6X14 | 15 | 220B0614 | 3 | ||
| WASHER SPRING 6MM | 16 | 461F0600 | 3 | ||
| WASHER PLAIN | 17 | 92022-024 | 3 | ||
| EMBLEM,SIDE COVER,R.H | 18 | 56027-396 | 1 | KT250A-2 | |
| EMBLEM,SIDE COVER,L.H | 19 | 56027-395 | 1 | KT250A-2 |
