Parts Diagrams |

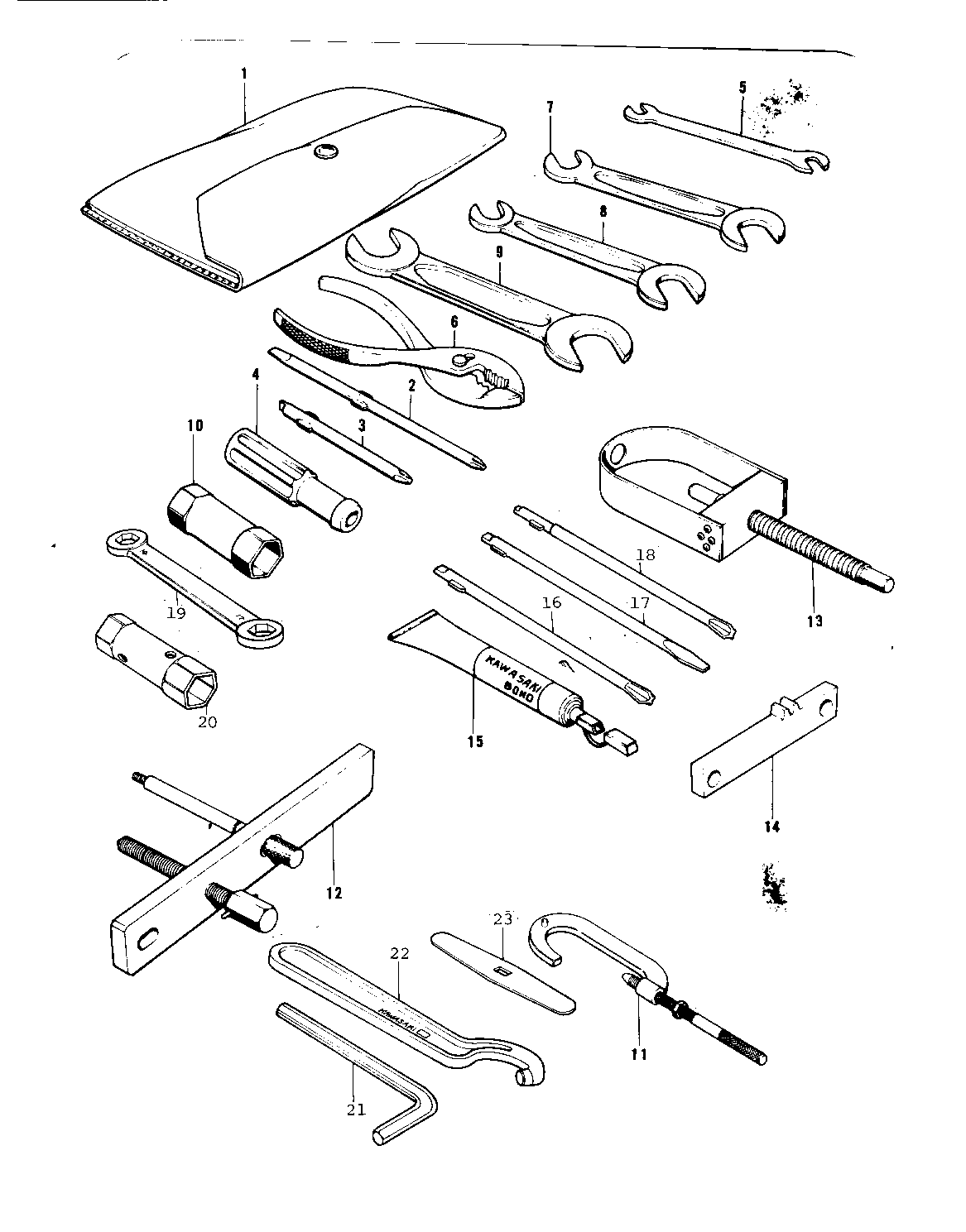

1975 KT250-A - OWNER TOOLS/SPECIAL SERVICE TOOLS
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BAG,TOOL | 1 | 56008-008 | 1 | ||
| TOOL-DRIVER | 2 | 92107-1052 | 1 | ||
| SCREW DRIVER #3 PHLIP | 3 | 92107-005 | 1 | ||
| 92106-1001 (Canada) | 4 | 92106-002 | 1 | ||
| 92106-1001 (Canada) | 4 | 92106-004 | 1 | KT250A-2 | |
| TIGHTENER,SPOKE | 5 | 92108-011 | 1 | ||
| PLIERS,160MM | 6 | 92112-003 | 1 | ||
| WRENCH,OPEN,8X10 | 7 | 92126-001 | 1 | ||
| WRENCH,OPEN END,12X13 | 8 | 92126-002 | 1 | ||
| WRENCH,OPN END,19X21 | 9 | 92126-008 | 1 | ||
| 92110-1022 (Canada) | 10 | 92108-009 | 1 | ||
| 57001-1243 (Canada) | 11 | 56019-040 | 1 | ||
| 57001-1098 (Canada) | 12 | 57001-153 | 1 | ||
| 57001-910 (Canada) | 13 | 57001-231 | 1 | ||
| 57001-1243 (Canada) | 14 | 57001-301 | 1 | ||
| LIQUID GASKET | 15 | 92104-002 | 1 | ||
| TOOL-DRIVER | 16 | 92107-1052 | 2 | KT250A-2 | |
| 92107-1052 (Canada) | 17 | 92107-007 | 1 | KT250A-2 | |
| 92107-1002 (Canada) | 18 | 92107-008 | 1 | KT250A-2 | |
| WRENCH,BOX,14X17 (Canada) | 19 | 92108-012 | 1 | KT250A-2 | |
| WRENCH,BOX,17X21 | 20 | 92110-012 | 1 | KT250A-2 | |
| WRENCH,ALLEN,6MM | 21 | 92127-003 | 1 | KT250A-2 | |
| 92110-1035 (Canada) | 22 | 92108-007 | 1 | KT250A-2 | |
| LEVER,SCREW DRIVER | 23 | 92111-006 | 1 | KT250A-2 |
