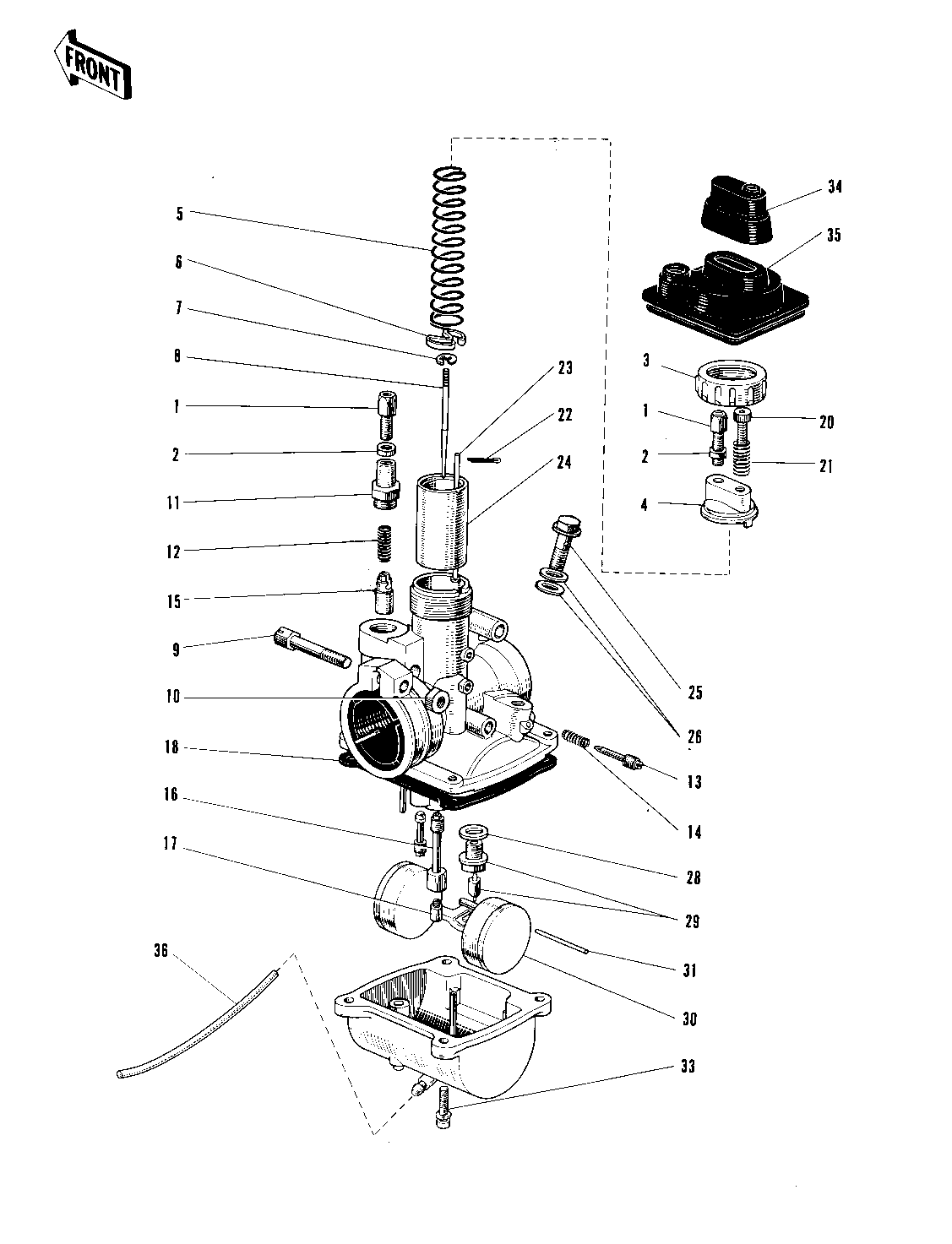

1967 Roadrunner - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1~33 16001-025 (1
CARBURETOR ASSY 1~33 16001-024 1
CABLE ADJUSTER 1 16002-002 2
NUT CABLE ADJUST LOCK 2 16003-004 2
CAP MIXING CHAMBER 3 16004-001 1
TOP MIXING CHAMBER 4 16005-004 1
SPRING THROTTLE VALVE 5 16006-003 1
SPRING SEAT THRTL VLV 6 16007-003 1
CIRCLIP 7 16008-010 1
JET NEEDLE 4J-9 8 16009-009 (1
JET NEEDLE 4H7 8 16009-008 1
SCREW CLAMP 9 16010-004 1
NUT 6MM 10 311B0600 (1
NUT 6MM 10 311B0600 1
CAP STARTER PLUNGER 11 16012-004 1
SPRING-PLUNGER 12 16013-003 1
SCREW PILOT AIR ADJST 13 16014-002 1
SPRING-THR STOP SCREW 14 16022-007 1
PLUNGER-ENRICHNER 15 16016-002 1
NEEDLE JET E-4 16 16017-025 (1
NEEDLE JET E-2 16 16017-024 1
JET-MAIN NO 160A 17 92063-017 (1
JET-MAIN NO 120A 17 92063-013 1
GASKET FLOAT CHAMBER 18 16019-003 1
SCREW,THROTTLE STOP 20 16021-002 1
SPRING THR STOP SCREW 21 16022-005 1
UNAVAILABLE IN PRICE BOOK 22 16023-001 1
ROD-THROTTLE VLV STOP 23 16024-010 1
VALVE THROTTLE CA2.5 24 16025-006 1 CA2.5
BOLT BANJO 25 92001-011 1
GASKET 8MM 26 751P0800 2
WASHER VALVE SEAT 28 16029-002 1
FLOAT VALVE ASSY 29 16030-002 (1
FLOAT VALVE ASSY 29 16030-009 1
FLOAT 30 16031-003 1
FLOAT PIN 31 16032-003 1
SCREW FLOAT CHAMBER 33 16033-002 4 OLD JIS THREAD
SCREW FLOAT CHAMBER 33 16033-008 AL OLD JIS THREAD
SCREW-FLOAT CHAMBER 33 16033-012 4 I.S.O. THREAD
GROMMET CARB CAP 34 14038-001 1
CAP CARBURETOR RUBBER 35 14038-003 1
PIPE FUEL OVERFLOW 36 92059-005 1 FOR 16001-024
