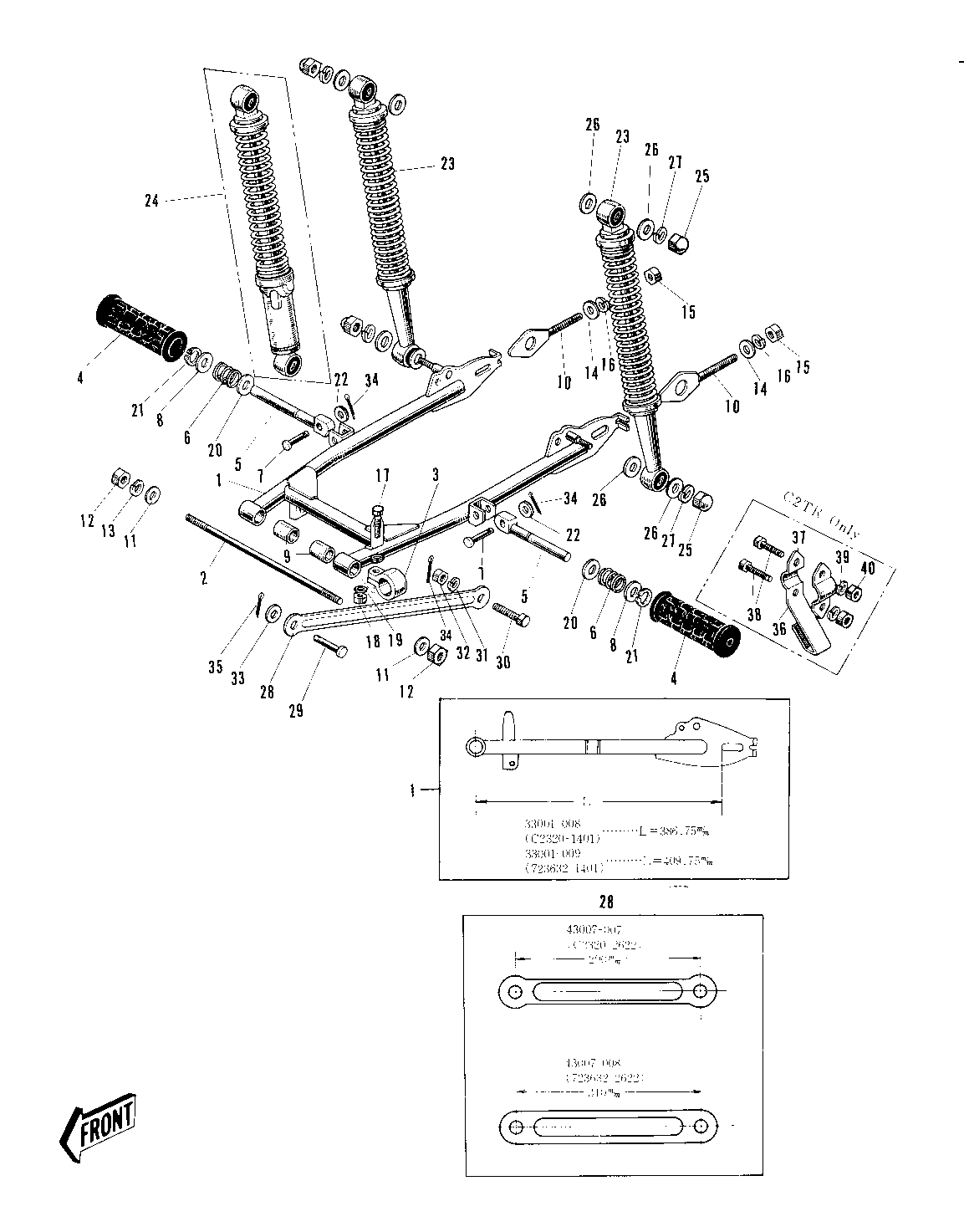

1967 Roadrunner - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1 33001-008 1
ARM SWING 1 33001-009 1 '69 MODEL
SHAFT SWING ARM PIVOT 2 33032-008 1
UNAVAILABLE IN PRICE BOOK 3 33042-008 1
RUBBER REAR FOOTREST 4 92076-007 2
FOOTREST ASSY REAR 5,6,8, 34027-004 2
SPRING FOOTREST FOLD 6 34031-001 2
PIN FOOTREST FIT 7 92043-047 2
WASHER FOLDING PEG 8 92022-050 2
BUSH SWING ARM SHAFT 9 92092-006 2
ADJUSTER CHAIN 10 33040-008 2
WASHER PLAIN 10MM 11 411B1000 2
NUT,10MM 12 314B1000 2
WASHER SPRING 10MM 13 461F1000 1
WASHER PLAIN 6MM 14 410B0600 2
NUT 6MM 15 311B0600 2
WASHER SPRING 6MM 16 461F0600 2
SCREW PAN HEAD 5X16 17 220B0516 1 OLD JIS THREAD
SCREW PAN HEAD 5X16 17 220B0516A 1 I.S.O. THREAD
NUT,5MM 18 311B0500 1 OLD JIS THREAD
NUT,5MM 18 311B0500 1 I.S.O. THREAD
WASHER PLAIN 5MM 19 410B0500 1
WASHER PLAIN 14MM 20 410B1400 2
CIRCLIP 14MM 21 480J1400 2
WASHER PLAIN 8MM 22 410B0800 2
UNAVAILABLE IN PRICE BOOK 23 45014-018 2
SHOCK ABSBR RR 24 45014-036 2
NUT SHOCK ABSBR FIT 25 92020-005 4 OLD JIS THREAD
NUT 12MM 25 92020-014 4 I.S.O. THREAD
WASHER PLAIN 12MM 26 411B1200 8
WASHER SPRING 12MM 27 461F1200 4
TORQUE LINK REAR BRK 28 43007-007 1
TORQUE LINK REAR BRK 28 43007-008 1 '69 MODEL
PIN REAR TORQUE LINK 29 43009-001 1
BOLT HEX HEAD 10X25 30 92003-003 1
WASHER SPRING 10MM 31 461F1000 1
NUT,10MM 32 314B1000 1
WASHER PLAIN 10MM 33 410B1000 1
PIN COTTER 2.5X20 34 550D2520 3
PIN COTTER 2.0X15 35 550D2015 1
