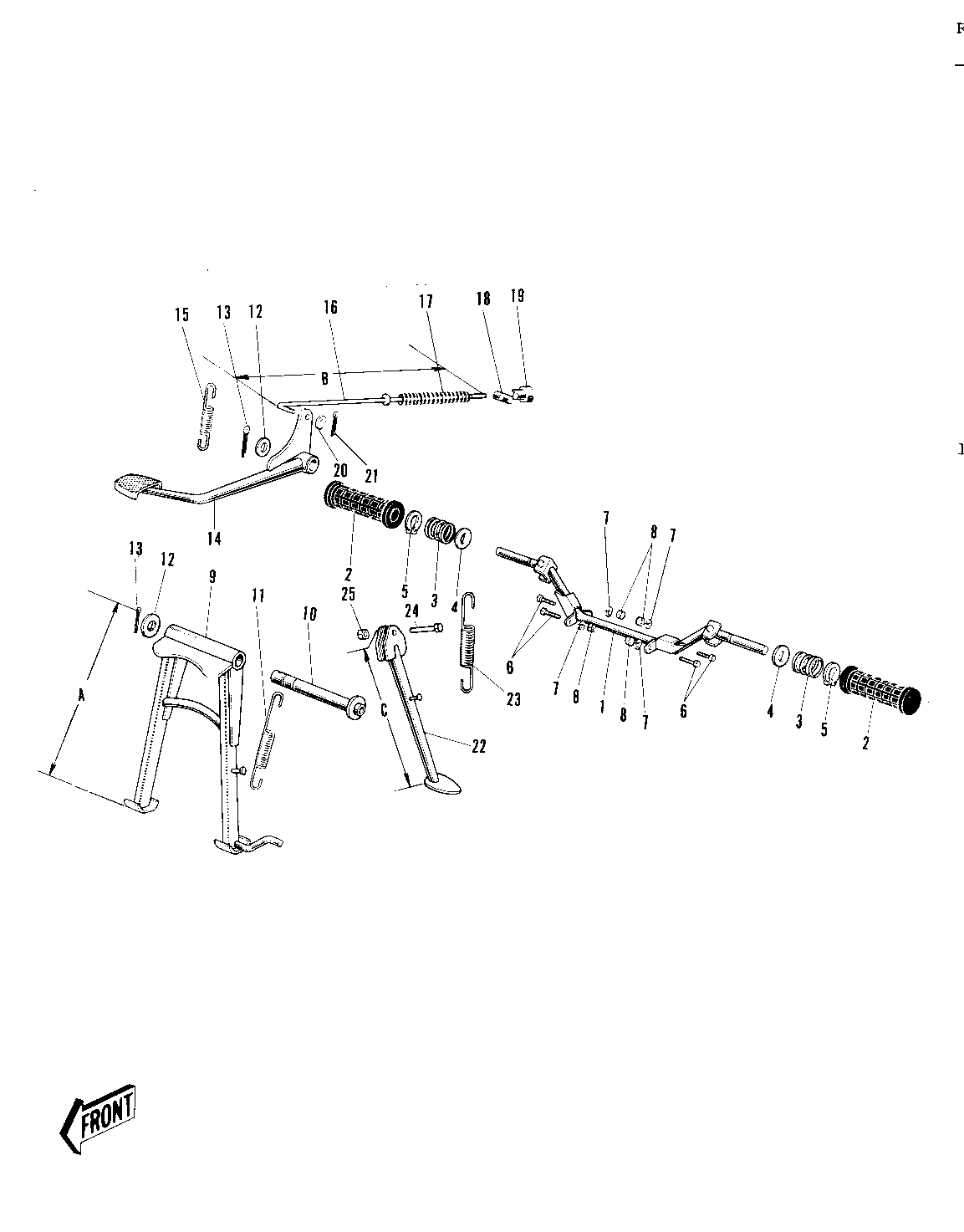

1967 Roadrunner - FOOTRESTS/STANDS/BRAKE PEDAL

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BAR FOOTREST 1 34002-017 1
BAR FOOTREST 1 34002-026 1 '69 MODEL
RUBBER FOOTREST 2 92076-006 2
SPRING FOOTREST PEG 3 34006-002 2
WASHER FOLDING PEG 4 92022-049 2
CIRCLIP 16MM 5 480J1600 2
BOLT-SMALL-UPSET,8X16 6 115G0816 4
WASHER SPRING 8MM 7 461F0800 4
NUT,8MM 8 311B0800 4
STAND-MAIN 9 34011-009 1 A=250 M/M
STAND-MAIN 9 34011-010 1 A=275 M/M
SHAFT MAIN STAND 10 34019-005 1
SPRING MAIN STAND 11 34023-005 1
WASHER BRAKE PEDAL 12 92022-085 2
PIN COTTER 3.0X30 13 550D3030 2
PEDAL BRAKE 14 43001-013 1
SPRING BRAKE PEDAL 15 43005-005 1
BRAKE ROD ASSY 16~20 43010-5003 1 D=6 M/M
ROD ASSY BRAKE 16~20 43010-007 1 '69 MODEL B=500 M/M
SPRING,BRAKE ROD 17 43012-001 1
PIN BRAKE 18 92043-039 1
NUT BRAKE ROD ADJUST 19 92015-002 1 D=5 M/M
NUT-BRAKE ROD ADJUST 19 92015-042 1 D=6 M/M
WASHER PLAIN 5MM 20 410B0500 1 43010-001 (000-2600)
WASHER PLAIN 6MM 20 410B0600 1 43010-004 (C2320-2600)
PIN COTTER 2.0X15 21 550D2015 1
STAND SIDE 22 34024-011 1 C=208 M/M
STAND SIDE 22 34024-012 1 '69 MODEL C=228 M/M
SPRING,SIDE STAND 23 34025-001 1
BOLT,HEX HEAD,10X25 24 113G1025 1
NUT 10MM 25 315B1000 1
