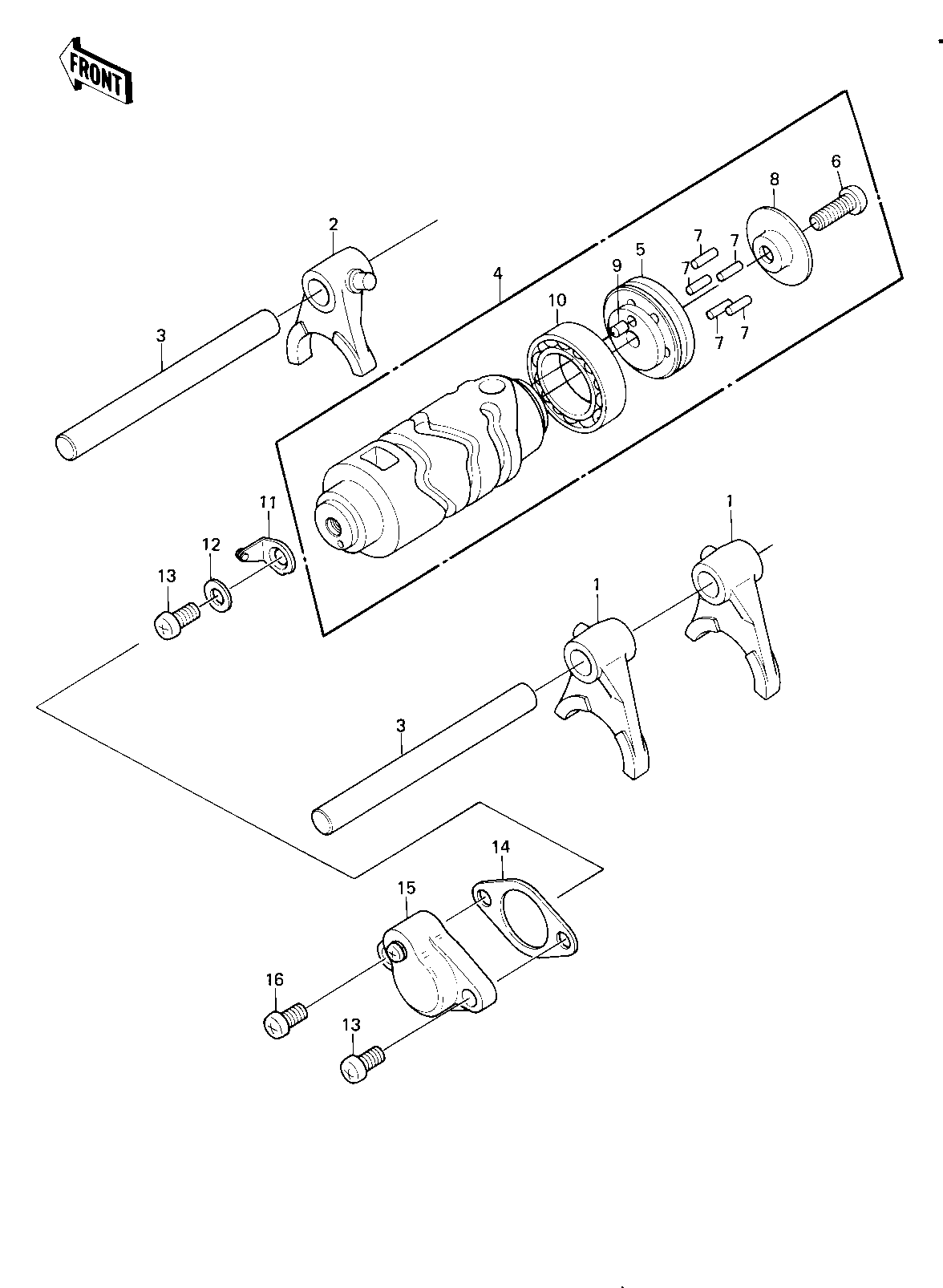

1980 KE175 - GEAR CHANGE DRUM & FORKS ('80-'81 KE175-
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FORK,SHIFT,LOW,2ND,3R | 1 | 13140-1013 | 2 | ||
FORK,SHIFT 4TH&TOP | 2 | 13140-1014 | 1 | ||
ROD-SHIFT,10X102 | 3 | 49047-1060 | 2 | ||
DRUM ASSY,GEAR CHANGE | 4 | 13239-1029 | 1 | ~E/NO.007908 | |
DRUM ASSY,GEAR CHANGE | 4 | 13239-1039 | 1 | E/NO.007909~ | |
HOLDER,CHANGE DRM PIN | 5 | 13091-1070 | 1 | ~E/NO.007908 | |
HOLDER,DRUM PIN | 5 | 13091-1082 | 1 | E/NO.007909~ | |
SCREW PAN HEAD 6X30 | 6 | 220B0630 | 1 | ~E/NO.007908 | |
BOLT,SOCKET,6X30,BLAC | 6 | 120S0630 | 1 | E/NO.007909~ | |
PIN,GEAR CHANGE DRUM | 7 | 92042-042 | 5 | ||
PLATE CHANGE DRUM PIN | 8 | 13142-008 | 1 | ||
PIN-DOWEL,4X6 | 9 | 610A0406 | 1 | ||
BEARING,BALL,#6905 | 10 | 92045-036 | 1 | ~E/NO.007908 | |
BEARING BALL #6004 | 10 | 601B6004 | 1 | E/NO.007909~ | |
ROTOR,NEUTRAL INDICTR | 11 | 21007-1003 | 1 | ||
WASHER PLAIN 6MM | 12 | 410B0600 | 1 | ||
SCREW PAN HEAD 6X16 | 13 | 220B0616 | 1 | ||
GASKET NEUTRAL SWITCH | 14 | 13146-002 | 1 | ||
SWITCH,NEUTRAL | 15 | 13151-1001 | 1 | ||
SCREW PAN HEAD 6X16 | 16 | 220B0616 | 2 |
