Parts Diagrams |

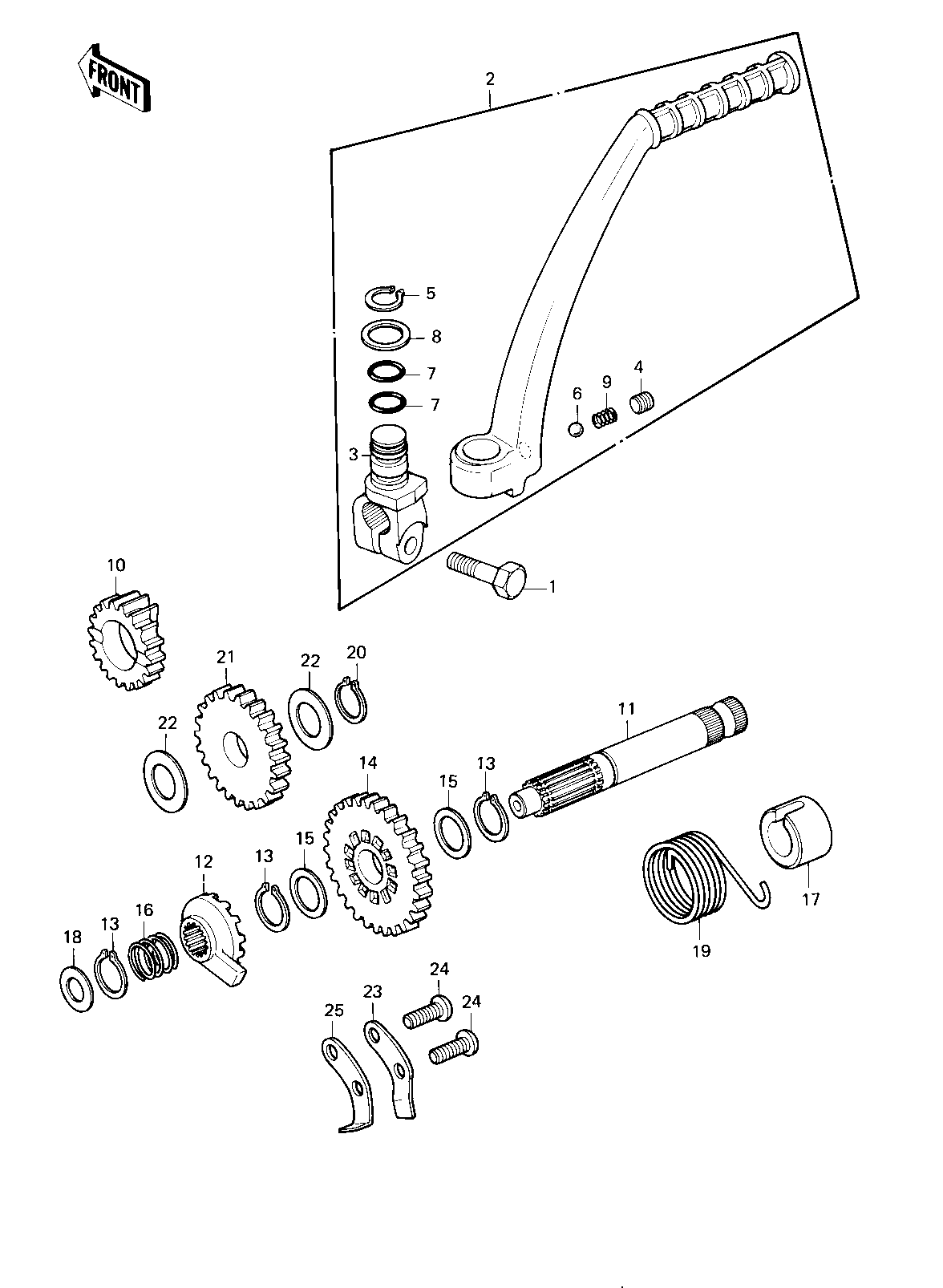

1980 KE175 - KICKSTARTER MECHANISM ('80-'81 KE175-D2/
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SMALL-UPSET 8X25 | 1 | 115G0825 | 1 | ||
PEDAL ASSY,KICK | 2 | 13064-1027 | 1 | ||
PEDAL ASSY,KICK | 2 | 13064-1027 | 1 | ||
BOSS,KICK PEDAL | 3 | 13061-5001 | 1 | ||
BOSS,KICK PEDAL | 3 | 13061-5001 | 1 | ||
SCREW,8X8 | 4 | 290Q0808 | 1 | ||
CIR CLIP | 5 | 482K0100 | 1 | ||
BALL STEEL 1/4' | 6 | 600A0800 | 1 | ||
"O" RING,12MM | 7 | 670B2012 | 2 | ||
WASHER,PLAIN | 8 | 92022-1019 | 1 | ||
SPRING KICK PEDAL | 9 | 92081-020 | 1 | ||
PINION-KICKSTARTER | 10 | 13075-006 | 1 | ||
SHAFT,KICK | 11 | 13066-1006 | 1 | ||
RATCHET | 12 | 13078-1001 | 1 | ||
CIRCLIP 16MM | 13 | 480J1600 | 3 | ||
GEAR,KICKSTARTER,34T | 14 | 59051-1010 | 1 | ||
WASHER,PLAIN | 15 | 92022-315 | 2 | ||
SPRING,RATCHET | 16 | 92081-122 | 1 | ||
GUIDE,KICK SPRING | 17 | 13070-1007 | 1 | ||
WASHER,PLAIN | 18 | 92022-269 | 1 | ||
SPRING,KICKSTARTER | 19 | 92082-005 | 1 | ||
CIRCLIP 15MM | 20 | 480J1500 | 1 | ||
GEAR,IDLE,29T | 21 | 59051-1019 | 1 | ||
WASHER-PLAIN | 22 | 92022-169 | 2 | ||
GUIDE,KICK | 23 | 13206-1002 | 1 | ||
SCREW PAN HEAD 6X16 | 24 | 220B0616 | 2 | ||
STOPPER,KICK | 25 | 32085-1027 | 1 |
