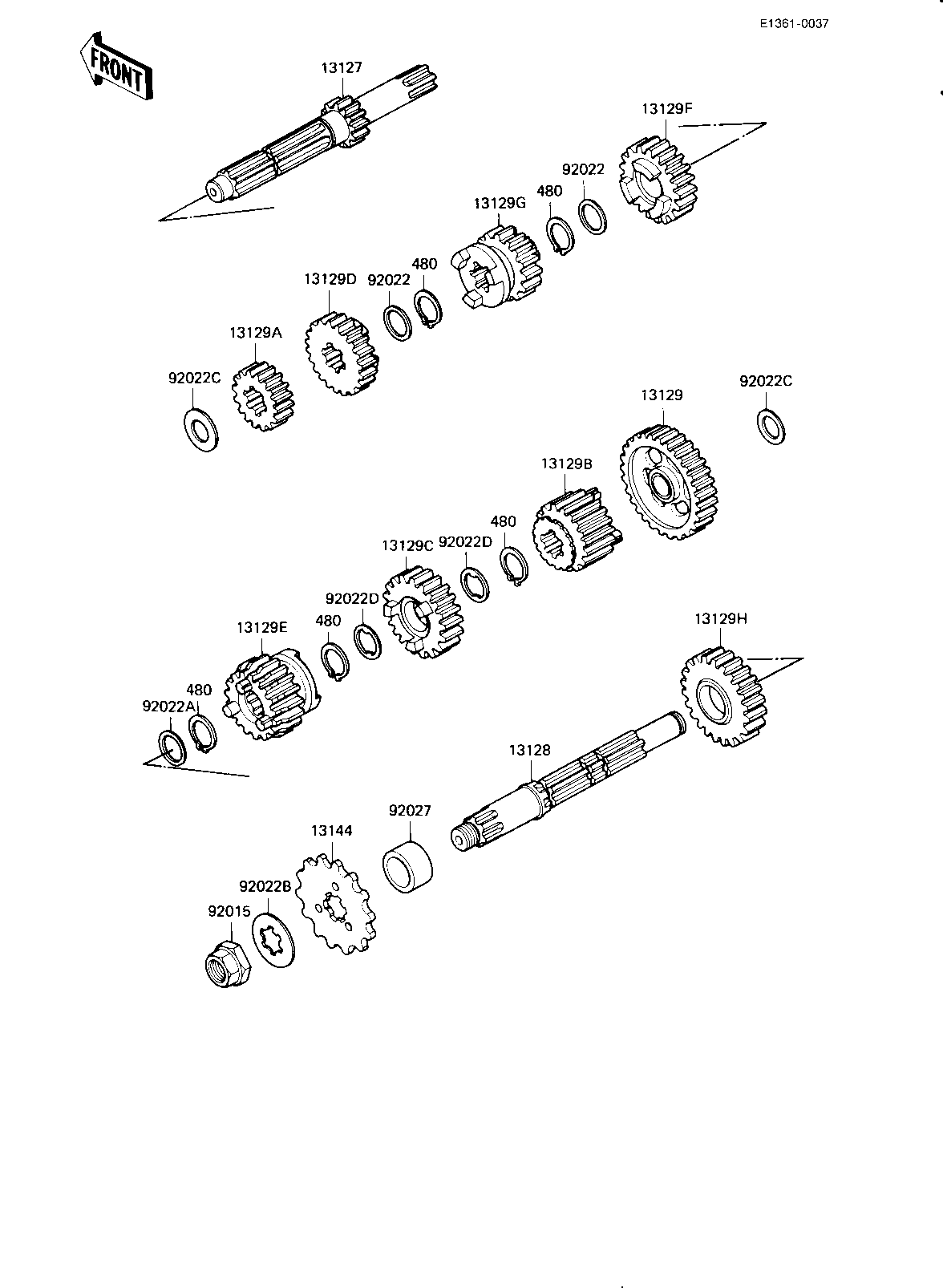

1982 KE175 - TRANSMISSION ('82-'83 KE175-D4/D5)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,DRIVE,12T | 13127 | 13127-1006 | 1 | ||
| SHAFT,OUTPUT | 13128 | 13128-1008 | 1 | ||
| LOW GEAR,OUTPUT SHAFT | 13129 | 13129-051 | 1 | ||
| 2ND GEAR,DRIVE,17T | 13129A | 13129-1075 | 1 | ||
| TOP GEAR,DRIVEN,20T | 13129B | 13129-1134 | 1 | ||
| 3RD GEAR,DRIVEN,22T | 13129C | 13129-1142 | 1 | ||
| 4TH GEAR,DRIVE,20T | 13129D | 13129-1143 | 1 | ||
| 4TH GEAR,DRIVEN,19T | 13129E | 13129-1144 | 1 | ||
| TOP GEAR,DRIVE,25T | 13129F | 13129-1145 | 1 | ||
| 3RD GEAR,DRIVE,18T | 13129G | 13129-1212 | 1 | ||
| 2ND GEAR OUTPUT 28T | 13129H | 13129-1278 | 1 | ||
| SPROCKET-OUTPUT,14T | 13144 | 13144-1058 | 1 | ||
| NUT,14M/M | 92015 | 92015-1062 | 1 | ||
| WASHER 22MM | 92022 | 92022-106 | 2 | ||
| WASHER,22X28X2 | 92022A | 92022-1087 | 1 | ||
| WASHER,SPLINE | 92022B | 92022-1113 | 1 | ||
| WASHER-THRUST | 92022C | 92022-170 | 2 | ||
| WASHER-LOCK | 92022D | 92024-031 | 2 | ||
| COLLAR,20X30X15 | 92027 | 92027-1083 | 1 | ||
| CIRCRIP TYPE-C,21MM | 480 | 480J2100 | 5 |
