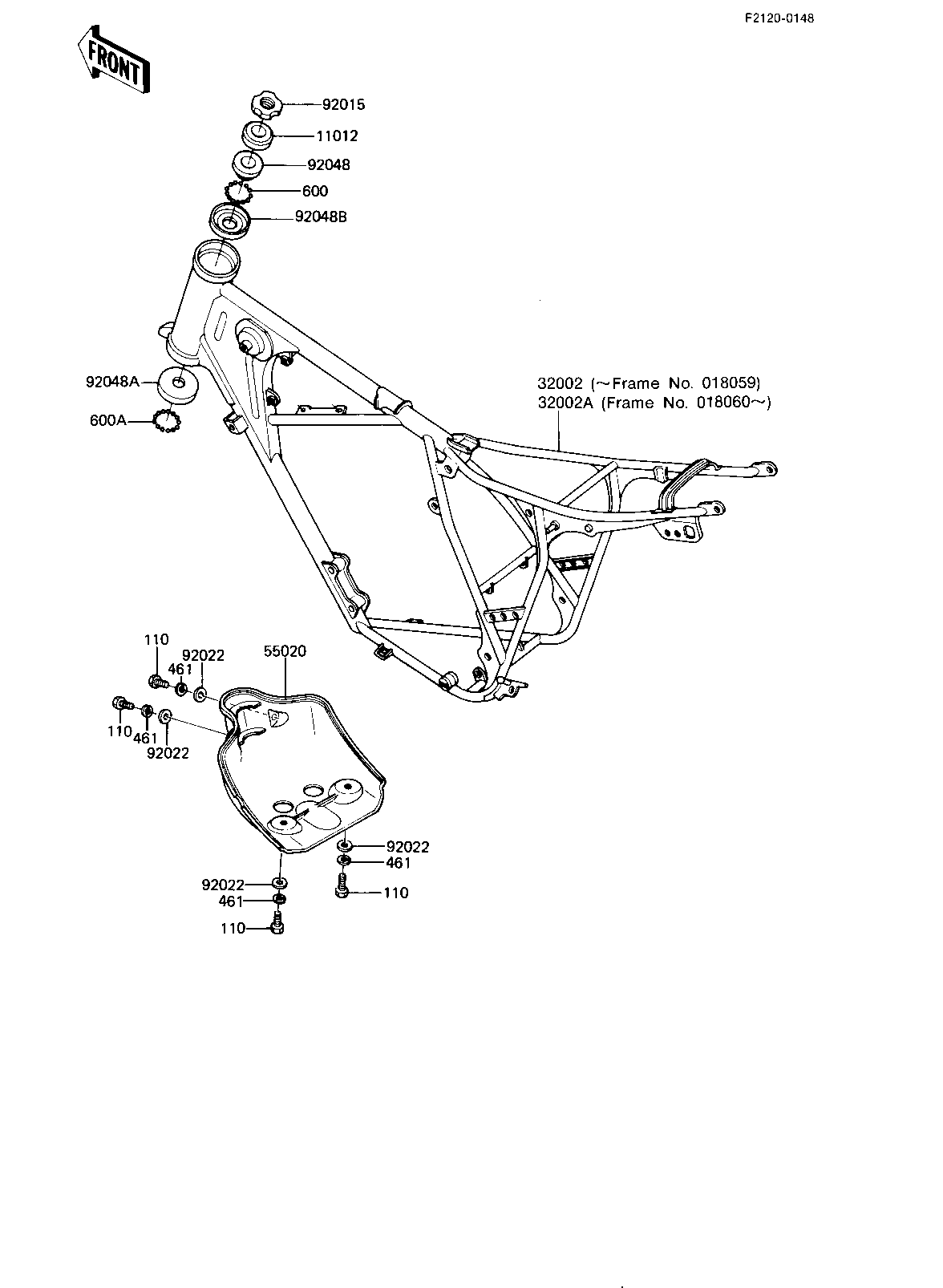

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING STEM 11012 46098-018 1
FRAME 32002 32002-1142 1
FRAME-COMP,US (Canada) 32002A 32002-1482 1
GUARD,ENGINE 55020 55020-1025 1
NUT,STEERING STEM 92015 92090-022 1
WASHER-PLAIN,7MM 92022 92022-240 4
CONE,STRG STM BRG,UP 92048 92047-014 1
RACE STEERING BEARING 92048A 92048-005 1
RACE,STRG STM BEARING 92048B 92048-009 1
BOLT-UPSET,6X16 110 112G0616 4
WASHER SPRING 6MM 461 461F0600 4
BALL STEEL 3/16' 600 600A0600 23
BALL STEEL 1/4' 600A 600A0800 19
