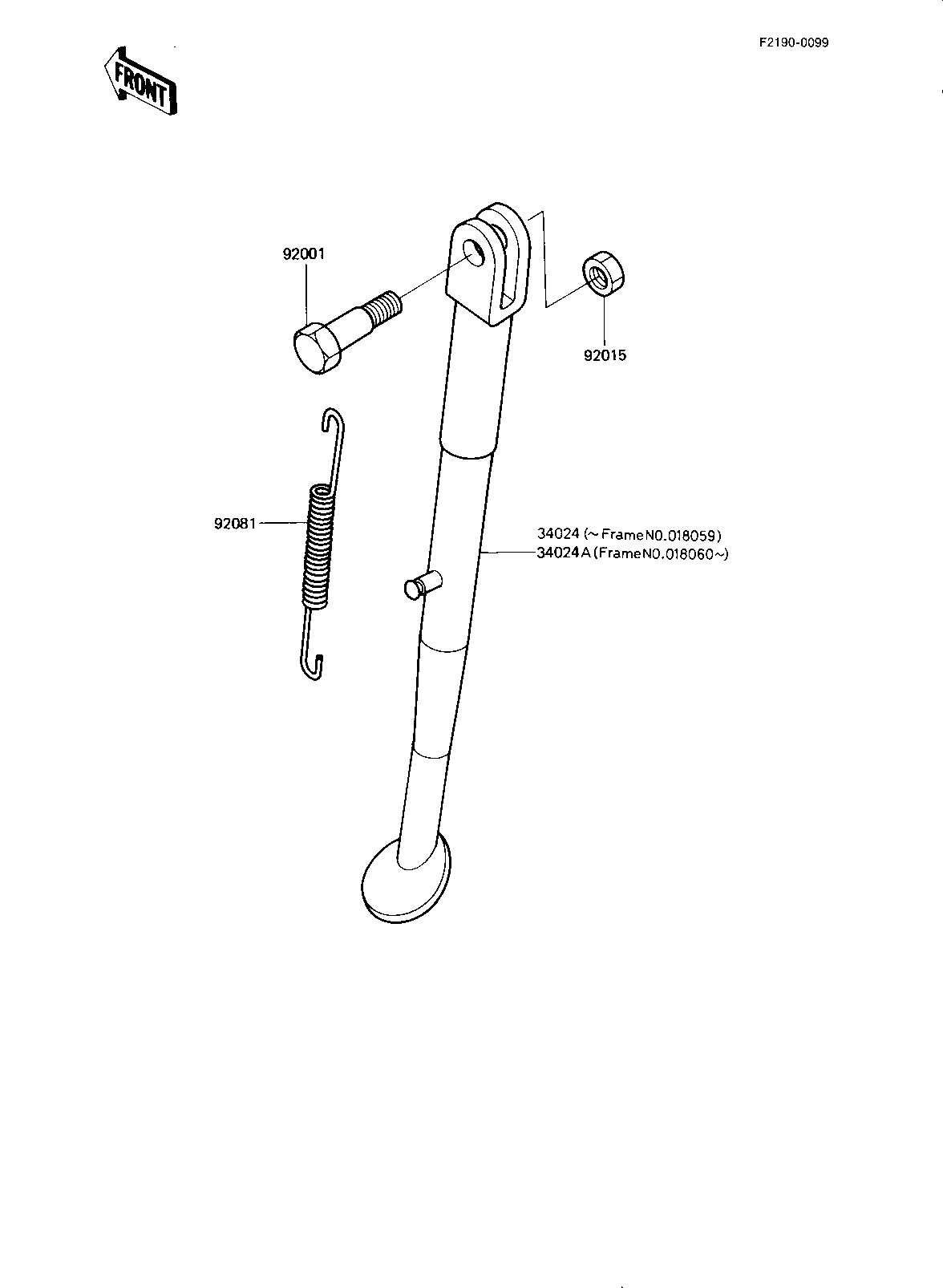

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-SIDE 34024 34024-064 1
STAND-SIDE (Canada) 34024A 34024-1092 1
BOLT, SIDE STAND FIT 92001 92003-157 2
NUT,LOCK,10MM 92015 92019-021 2
SPRING,SIDE STAND 92081 34025-008 2
