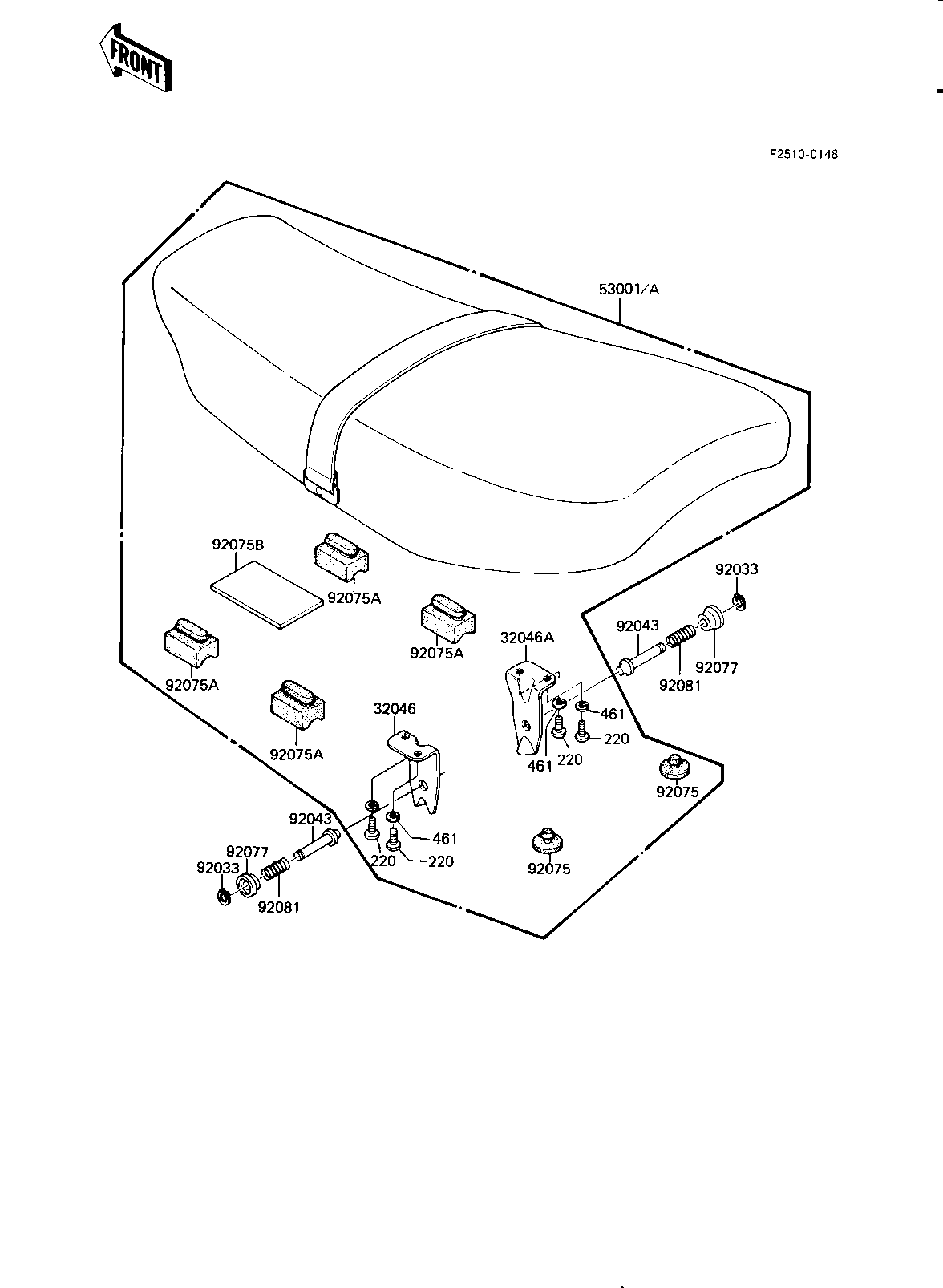

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT CATCH,LH 32046 32046-1030 1
BRACKET,SEAT CATCH,RH 32046A 32046-1031 1
SEAT-ASSY,W/BAND 53001 53001-1248 1
CIRCLIP,8M/M 92033 92033-1039 2
PIN,SEAT STOPPER 92043 92043-1036 2
DAMPER RUBBER 92075 92075-099 2
DAMPER RUBBER,SEAT 92075A 92075-216 4
DAMPER RUBBER,BATERY 92075B 92075-224 1
KNOB,SEAT STOPPER 92077 92077-1007 2
SPRING,SEAT STOPPER 92081 92081-1135 2
SCREW PAN HEAD 6X14 220 220B0614 4
WASHER SPRING 6MM 461 461F0600 4
