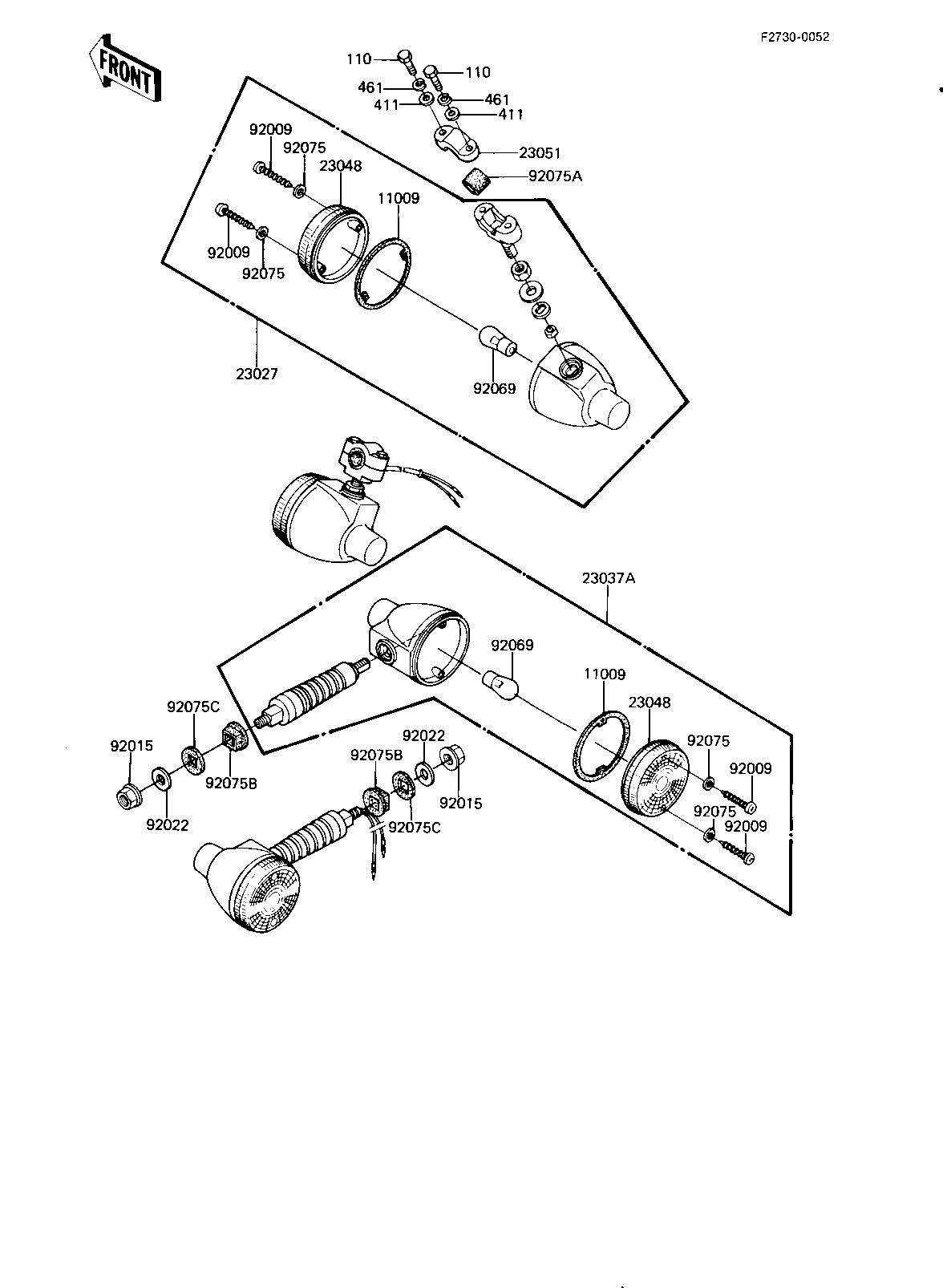

1982 KE175 - TURN SIGNALS ('82-'83 KE175-D4/D5)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,SGNL LAMP LENS 11009 11009-1128 4
LAMP ASSY,FR SIGNAL 23037 23037-1039 2
LAMP ASSY,R SGNL LAMP 23037A 23037-1040 2
LENS-SIGNAL LAMP 23048 23048-1076 4
BRACKET,F SIGNAL LAMP 23051 23051-1018 2
SCREW,TAPPING 92009 92009-1056 8
NUT,FLANGED,10MM 92015 92015-1428 2
WASHER,10.5X32X1.6 92022 92022-1071 2
BULB,6V 21CP 92069 92069-056 4
WASHER-PLAIN,4MM 92075 23058-002 8
DAMPER RUBBER 92075A 23066-003 2
DAMPER RUBBER 92075B 92075-1079 2
DAMPER RUBBER 92075C 92075-1080 2
BOLT,HEX HEAD,5X30 110 110B0530A 4
WASHER PLAIN 5MM 411 411B0500 4
WASHER SPRING 5MM 461 461F0500 4
