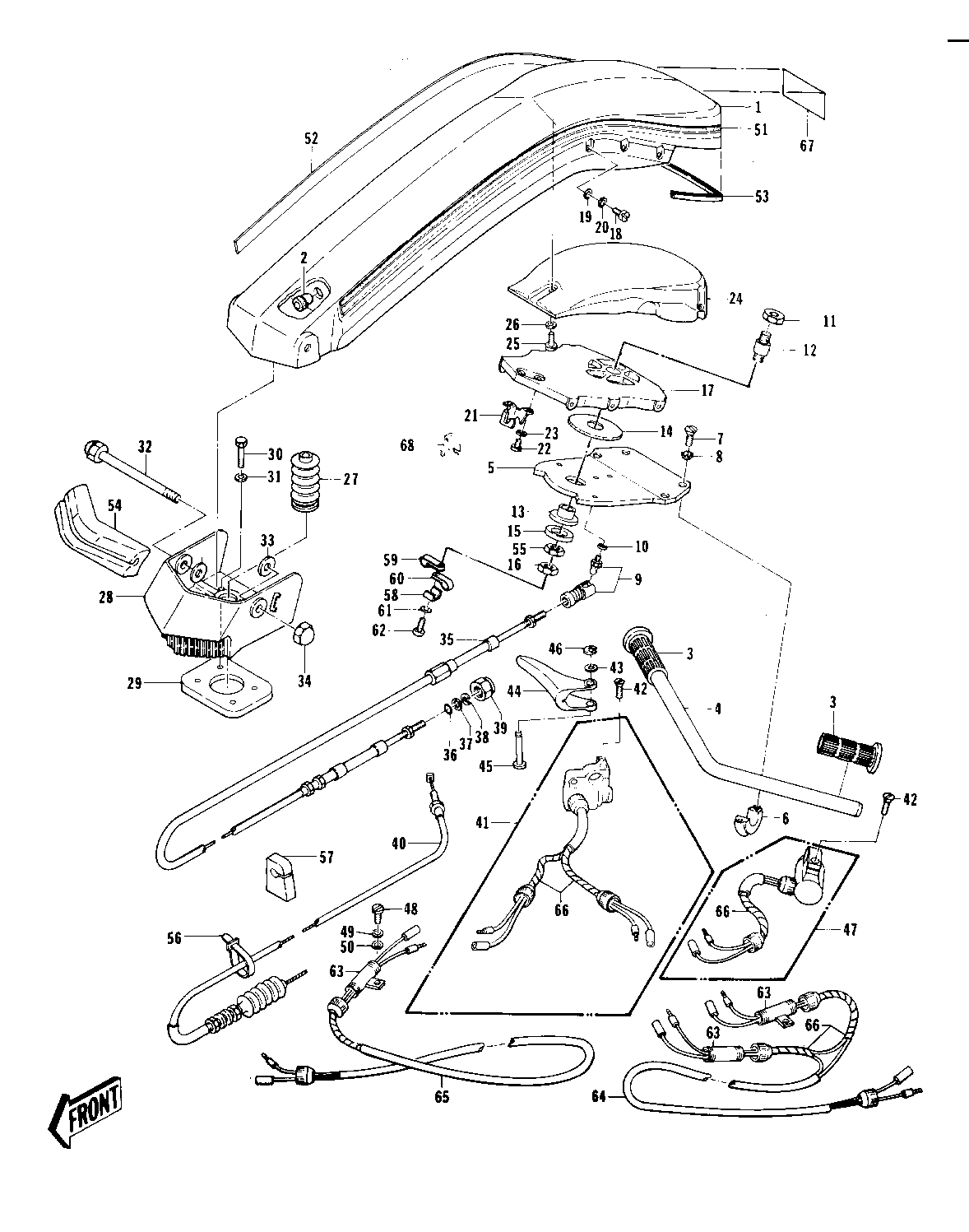

1978 JS440 - HANDLE POLE/CABLES (JS440-A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
POLE-HANDLE-PLAIN 1 59166-3002-8C INCLUDES REF. NO.'S
GROMMET 2 92071-530
GRIP,HANDLE,RH 3 46075-3704
HANDLEBAR 4 32032-3017
PLATE,HANDLEBAR 5 13169-3004
CLAMP,HANDLE PIPE 6 92037-503
SCREW,8X25 7 221R0825
WASHER 8 92095-511
JOINT-BALL 9 59266-3707
WASHER-SPRING,6MM 10 461S0600
NUT,16M/M 11 92015-536
STUD,PIVOT 12 92004-3003
BUSHING 13 92028-513
BUSHING 14 92028-512
WASHER 15 92022-571
NUT 18M/M 16 92015-506
BRACKET,SUPPORT 17 11046-3847
SCREW,6X18 18 220R0618
WASHER 19 411S0600
WASHER-SPRING,6MM 20 461S0600
HOLDER,CABLE 21 16065-509
SCREW,PAN HEAD,6X12 22 220R0612
WASHER-SPRING,6MM 23 461S0600
FLOAT ASSY, HANDLE 24 16031-506
SCREW 0.16X0.5 25 92011-562
WASHER 26 92022-563
COVER-STEERING CABLE 27 59176-514
BRACKET-HANDLE-POLE,S 28 39021-3701-F2
PLATE-POLE BRACKET 29 59086-538
BOLT,8X30 30 92150-3721
WASHER 31 411S0800
BOLT,14X183 32 92001-3018
WASHER 33 92022-507
NUT 14M/M 34 92015-507
CABLE,STEERING 35 59406-3001
"O" RING 36 670B2011
WASHER 37 92022-535
'C'RING 38 92036-501
NUT 20 M/M 39 92015-526
CABLE,THROTTLE 40 54012-3001
SWITCH,STOP 41 27010-3002
SCREW,OVL CNTSNK,6X22 42 222R0622
WASHER 43 410S0600
LEVER,THROTTLE 44 59126-509
PIN,THROTTLE 45 92043-3003
RING,SNAP 46 92036-518
SWITCH,START 47 27010-3001
SCREW,6X20 48 220R0620
WASHER-SPRING,6MM 49 461S0600
WASHER 50 411S0600
DECAL-HANDLE POLE LH 51 56027-531
DECAL-HANDLE POLE RH 52 56027-530
GROMMET 53 92071-534
DAMPER 54 92075-519
NUT,18M/M 55 92015-537
BAND,SHORT 56 92072-030
DETENT,STEERING CABLE 57 59346-504
WASHER,CLAMP 58 92022-3014
CLAMP,LEAD WIRE 59 92037-3007
CLAMP,LEAD WIRE 60 92037-3008
WASHER-SPRING,5MM 61 461S0500
SCREW-PAN-CROS 62 220R0516
CASE,CONNECTOR 63 32099-3002
HARNESS,START 64 26001-3003
HARNESS,STOP 65 26001-3004
TUBE,SPIRAL 66 92059-3010
LABEL-SFTY-HNDL POLE 67 56022-507
HOLDER,THROTTLE CABLE 68 16065-517
