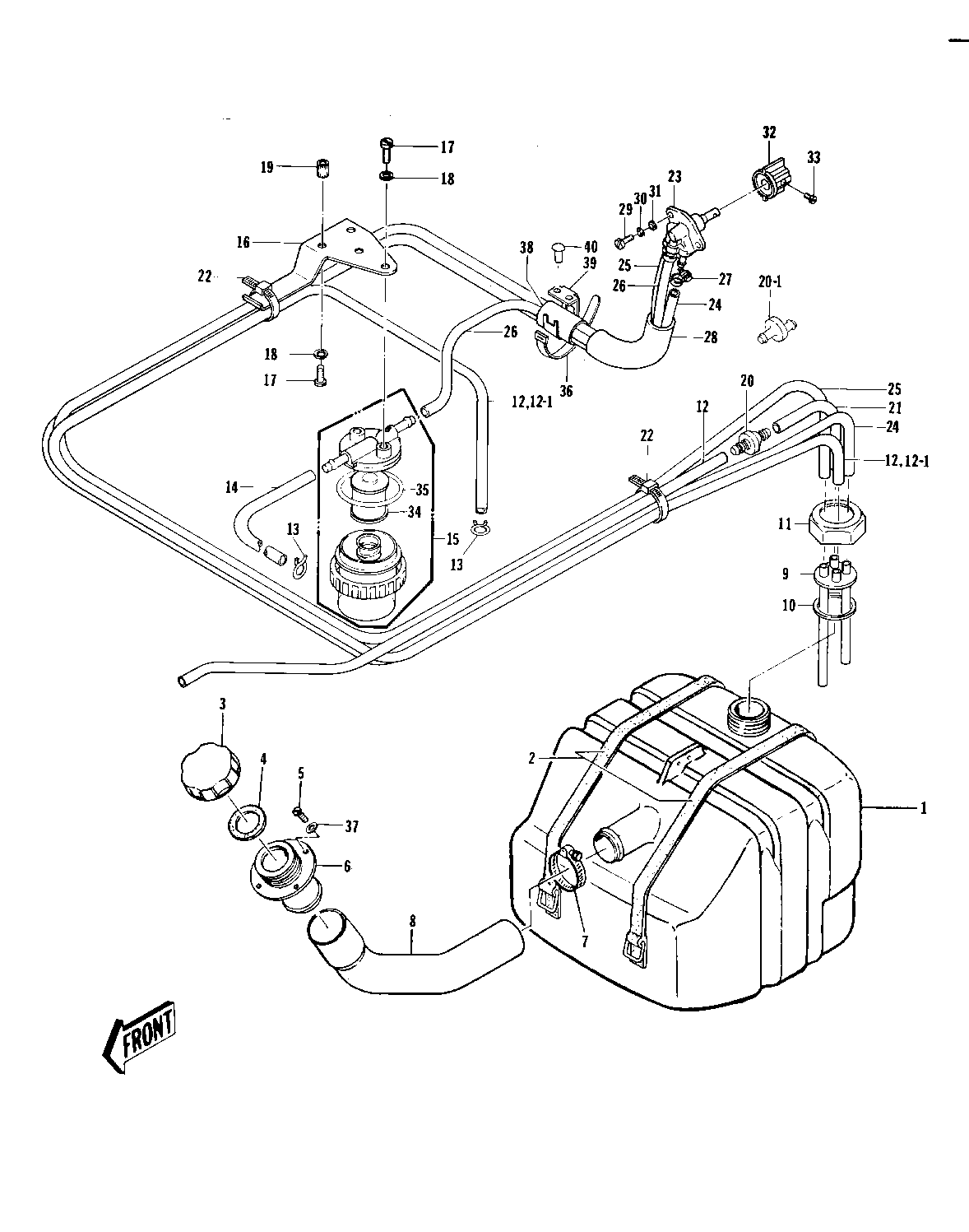

1978 JS440 - FUEL TANK ('77-'78 A1/A1A/A2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TANK-FUEL | 1 | 51004-3702 | |||
BAND,FUEL TANK | 2 | 92072-521 | |||
CAP,FUEL TANK | 3 | 51049-3001 | |||
GASKET | 4 | 92065-504 | |||
SCREW 0.16X0.5 | 5 | 92011-562 | |||
FILLER,FUEL TANK | 6 | 59231-3001 | |||
FILLER,FUEL TANK | 6 | 59231-3001 | HULL I.D. 082171176~ | ||
CLAMP,HOSE | 7 | 92037-506 | |||
HOSE,FUEL INLET | 8 | 92059-525 | |||
OUTLET,FUEL | 9 | 31064-3001 | |||
GASKET | 10 | 92065-504 | |||
RETAINER | 11 | 23072-501 | |||
TUBE,FUEL,6X10X940 | 12 | 92059-3025 | 1 REQ. FOR HULL I.D. 162000178 | ||
TUBE,6X10X760 | 12-1 | 92059-3012 | HULL I.D. 162000178~ | ||
CLAMP,SPARK PLUG CAP | 13 | 92037-1173 | |||
TUBE,6X380 | 14 | 92059-546 | |||
TUBE,6X10X200 | 14 | 92059-3011 | HULL I.D. 162000178~ | ||
FILTER,FUEL | 15 | 59236-505 | |||
FILTER-FUEL | 15 | 49019-3701 | HULL I.D. 101870177~ | ||
BRACKET,FUEL FILTER | 16 | 11047-3743 | |||
SCREW,PAN HEAD,6X12 | 17 | 220R0612 | SLOTTED HEAD | ||
SCREW,PAN HEAD,6X12 | 17 | 220R0612 | PHILLIPS HEAD, HULL I.D. 10187 | ||
WASHER-SPRING,6MM | 18 | 461S0600 | |||
NUT-INSERT,6MM $$ | 19 | 92015-533 | |||
VALVE,RELIEF | 20 | 49057-3001 | |||
VALVE,RELIEF | 20-1 | 49057-3001 | HULL I.D. 162000178~ | ||
PIPE,FUEL (1) | 21 | 92059-527 | |||
TUBE,FUEL,5.8X12.2X55 | 21 | 92059-3026 | HULL I.D. 162000178~ | ||
BAND,SHORT | 22 | 92072-030 | |||
TAP-ASSY,FUEL | 23 | 51023-3705 | |||
TUBE,6X1300 | 24 | 92059-552 | |||
TUBE,6X1300 | 24 | 92059-552 | HULL I.D. 162000178~ | ||
TUBE,6X1300,RESERVE | 25 | 92059-553 | |||
TUBE,6X1300,RESERVE | 25 | 92059-553 | HULL I.D. 162000178~ | ||
TUBE,6X750 | 26 | 92059-554 | |||
TUBE,6X10X960 | 26 | 92059-3007 | HULL I.D. 162000178~ | ||
CLAMP | 27 | 92037-551 | |||
CLAMP | 27 | 92037-551 | HULL I.D. 162000178~ | ||
TUBE,GUARD | 28 | 92059-3008 | |||
TUBE,GUARD | 28 | 92059-3008 | HULL I.D. 162000178~ | ||
BOLT,5X12 | 29 | 110R0512A | |||
WASHER-SPRING,5MM | 30 | 461S0500 | |||
WASHER | 31 | 411S0500 | |||
KNOB,COCK | 32 | 92077-503 | |||
SCREW 4X8 | 33 | 214R0408A | SLOTTED HEAD | ||
SCREW-PAN-CROS | 33 | 220R0408 | PHILLIPS HEAD, HULL I.D. 10187 | ||
FILTER,FUEL ELEMENT | 34 | 14043-5001 | |||
"0" RING,FILTER BASE | 35 | 92055-3006 | |||
BAND,MIDDLE | 36 | 92072-031 | HULL I.D. 162000178~ | ||
WASHER | 37 | 92022-563 | |||
TUBE,VINYL,22X350 | 38 | 92059-3018 | HULL I.D. 162000178~ | ||
CLAMP,TUBE | 39 | 92037-3005 | HULL I.D. 162000178~ | ||
RIVET-FUEL LINE CLAMP | 40 | 59281-505 | HULL I.D. 162000178~ |
