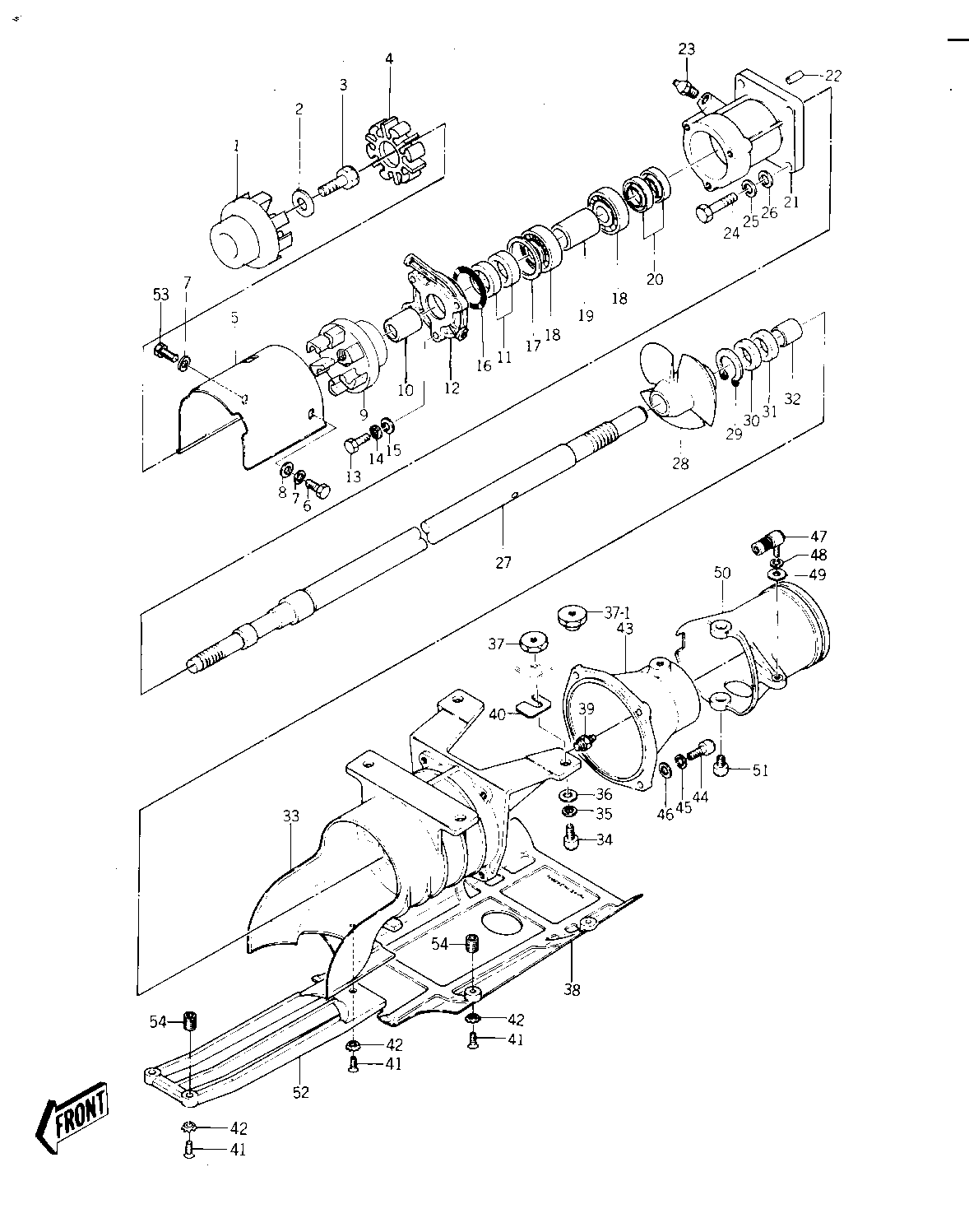

1978 JS440 - DRIVE SHAFT/JET PUMP ('77-'78 A1/A1A/A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 42063-3001 | |||
| WASHER,6.0T | 2 | 92022-568 | |||
| BOLT,1/2 INCHX27 | 3 | 92003-537 | |||
| DAMPER RUBBER,COUPLNG | 4 | 92075-520 | |||
| COVER,COUPLING | 5 | 59036-567 | |||
| COVER,COUPLING | 5 | 59036-567 | HULL I.D. 101870177~ | ||
| BOLT 6X12 | 6 | 110R0612 | |||
| WASHER-SPRING,6MM | 7 | 461S0600 | |||
| WASHER | 8 | 411S0600 | |||
| COUPLING | 9 | 42034-3706 | |||
| SLEEVE,BEARING | 10 | 42036-501 | |||
| SEAL,OIL AC1799EX | 11 | 92050-501 | |||
| COVER,BEARING | 12 | 14025-3008 | |||
| BOLT,8X25 | 13 | 110R0825 | |||
| WASHER SPRING 8MM | 14 | 461S0800 | |||
| WASHER | 15 | 411S0800 | |||
| "0" RING | 16 | 92055-501 | |||
| SHIM 0.15T | 17 | 92025-502 | |||
| SHIM 0.3T | 17 | 92025-503 | |||
| BEARING BALL #6305 | 18 | 601B6305 | |||
| COLLAR | 19 | 92027-502 | |||
| SEAL,OIL AC1799EX | 20 | 92050-501 | |||
| HOLDER | 21 | 41046-502 | |||
| PIN,DOWEL | 22 | 551R0612 | |||
| NIPPLE,GREASE | 23 | 92005-501 | |||
| BOLT,8X25 | 24 | 110R0825 | |||
| WASHER SPRING 8MM | 25 | 461S0800 | |||
| WASHER | 26 | 411S0800 | |||
| SHAFT,DRIVE | 27 | 59111-515 | |||
| IMPELLER | 28 | 59256-504 | |||
| RING,SNAP | 29 | 92036-502 | |||
| SEAL,OIL SC20367 | 30 | 92050-503 | |||
| SEAL,OIL SCY20368 | 31 | 92050-502 | |||
| BUSH | 32 | 92028-503 | |||
| CASE-PUMP | 33 | 59336-3701 | |||
| BOLT-SOCKET | 34 | 120R1025 | |||
| WASHER-SPRING,10MM | 35 | 461S1000 | |||
| WASHER | 36 | 411S1000 | |||
| NUT 10M/M | 37 | 92015-527 | |||
| NUT,10M/M | 37-1 | 92015-3005 | HULL I.D. 162000178~ | ||
| COVER,PUMP | 38 | 59036-558 | |||
| NIPPLE,GREASE | 39 | 92005-501 | |||
| SHIM,T=0.3 | 40 | 92025-3701 | |||
| SHIM,T=0.3 | 40 | 92025-3701 | |||
| SHIM.T=0.5 | 40 | 92025-3702 | |||
| SHIM,T=1.0 | 40 | 92025-3703 | |||
| SCREW 6X16 | 41 | 92011-563 | |||
| WASHER | 42 | 92095-512 | |||
| NOZZLE,PUMP | 43 | 59136-3001 | |||
| NOZZLE,PUMP | 43 | 59136-3001 | HULL I.D. 162000178~ | ||
| BOLT 8X22 | 44 | 92003-528 | |||
| WASHER SPRING 8MM | 45 | 461S0800 | |||
| WASHER | 46 | 92022-562 | |||
| JOINT-BALL | 47 | 59266-3707 | |||
| WASHER-SPRING,6MM | 48 | 461S0600 | |||
| WASHER | 49 | 92022-567 | |||
| NOZZLE-STRG | 50 | 59476-3702 | |||
| BOLT 6X11 | 51 | 92003-532 | |||
| GRATE | 52 | 59366-3001 | |||
| BOLT 6X16 | 53 | 110R0616 | |||
| NUT-INSERT,6MM | 54 | 92015-523 | HULL I.D. 101870177~ |
