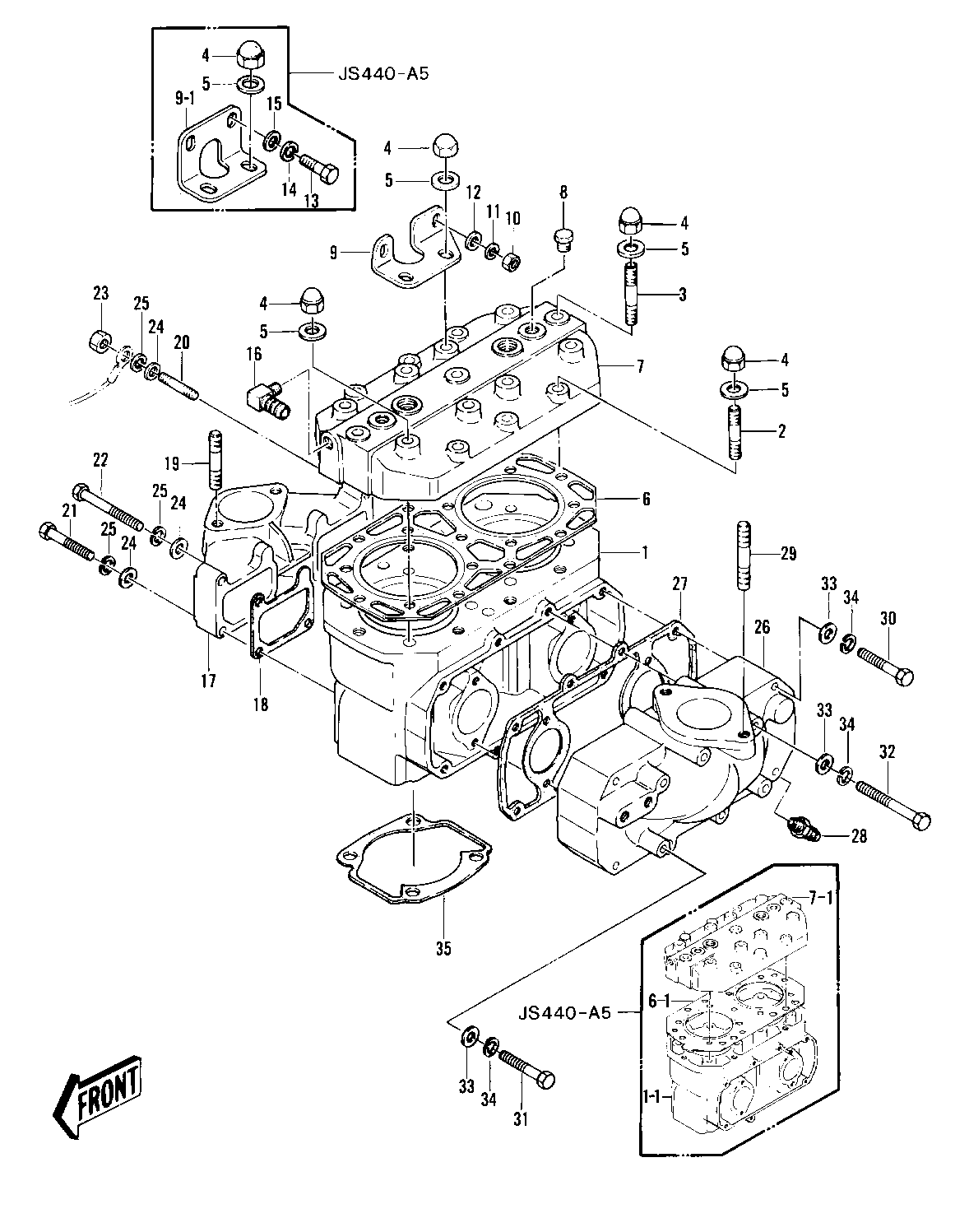

1981 JS440 - CYLINDER HEAD/CYLINDER ('79-'81 A3/A4/A4

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER ASSY 1 11005-3033 1
STUD,8X42 2 92004-3009 6
STUD,8X50 3 92004-3010 3
NUT-CAP,8MM 4 92015-3003 17
WASHER 5 411S0800 17
GASKET-HEAD 6 11004-3711 1
HEAD ASSY,CYLINDER 7 49086-3001 1
PLUG,DRAIN 8 92066-3001 2 USE FOR 11001-5
BRACKET,CARBURETOR 9 11034-3002 1
NUT,6M/M 10 311R0600 2
WASHER-SPRING,6MM 11 461S0600 2
WASHER,PLAIN,6M/M 12 92022-3018 2
ELBOW-WATER HOSE 16 52014-3002 1
MANIFOLD-INTAKE 17 59076-505-YR 1
GASKET,INTAKE 18 11009-3785 2
STUD,8X35 19 172R0835 2
STUD,6X35 20 172R0635 1
BOLT 6X35 21 110R0635 3
BOLT,6X70 22 110R0670 2
NUT,6M/M 23 311R0600 1
WASHER 24 410S0600 6
WASHER-SPRING,6MM 25 461S0600 6
MANIFOLD-EXHAUST 26 59081-504-YR 1
GASKET,EXHAUST MANIF 27 11009-3779 1
JOINT,HOSE 28 92005-3001 1
STUD,8X35 29 172R0835 2
BOLT 6X55 30 110R0655 6
BOLT 6X75 31 110R0675 4
BOLT 6X90 32 110R0690 2
WASHER 33 410S0600 12
UNAVAILABLE IN PRICE BOOK 34 461D0600 12
GASKET-CYLINDER 35 11009-505 2
