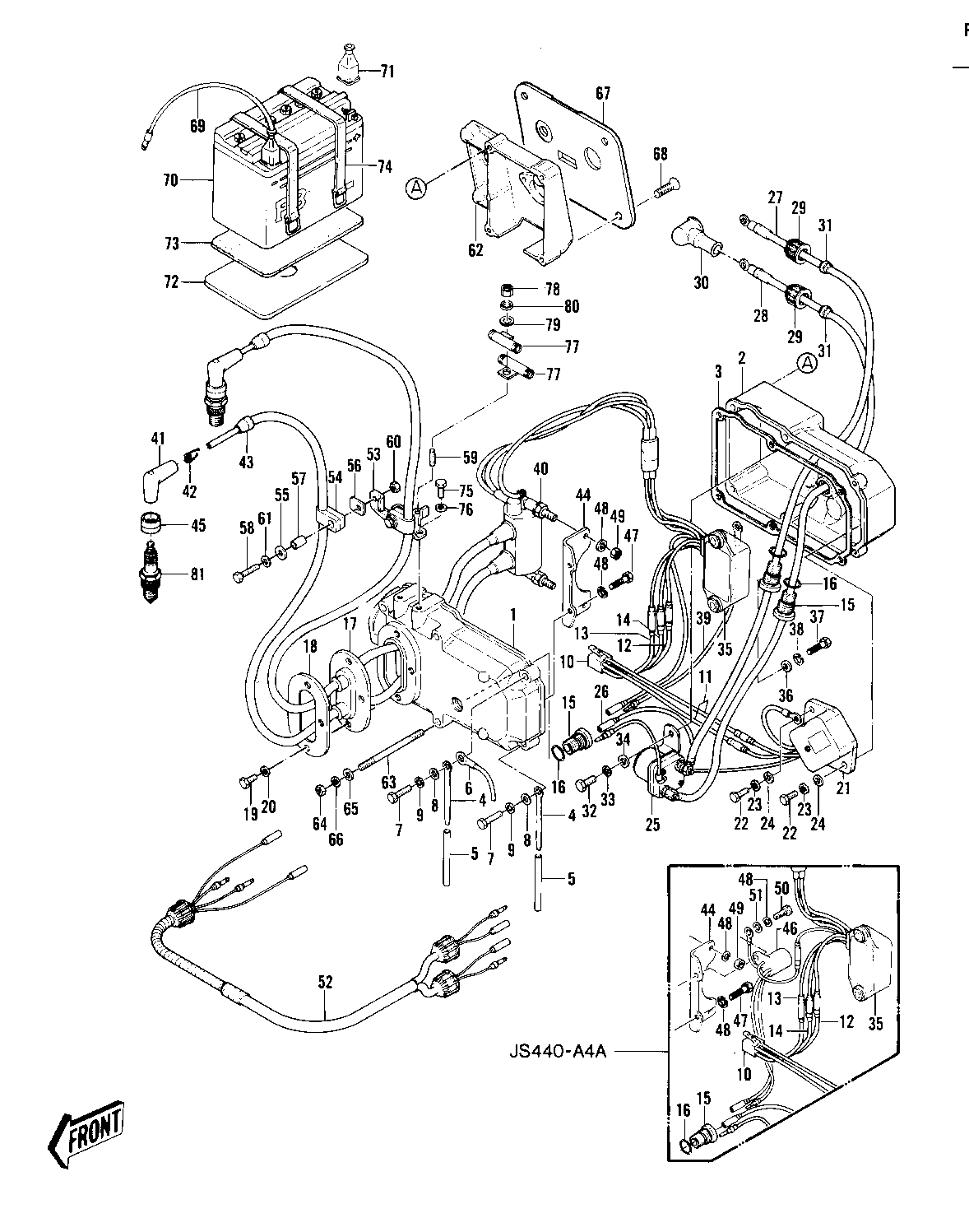

1981 JS440 - ELECTRIC CASE (JS440-A3/A4/A4A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE,ELECTRIC 1 59416-3001 1
CASE,ELECTRIC (2) 2 59021-532 1
GASKET,CASE 3 11009-3024 1
CLAMP,L=100 4 92037-3736 2
TUBE,VINYL,5X73 5 92059-3017 2
WIRE,EARTH 6 26011-505 1
BOLT,HEX HEAD,6X25 7 110R0625 2
WASHER 8 411S0600 2
WASHER-SPRING,6MM 9 461S0600 2
CONNECTOR,CORD 10 59221-505 1
WIRE,LEAD 11 26011-512 2
WIRE,LEAD 12 26011-513 1
WIRE,LEAD 13 26011-514 1
WIRE,LEAD 14 26011-515 1
JOINT-STATOR WIRE 15 59071-516 3
"0" RING,16MM 16 670B2016 3
GROMMET 17 92071-526 1
PLATE-ELECTRICAL CASE 18 59086-516 1
BOLT 6X14 19 110R0614 4
WASHER-SPRING,6MM 20 461S0600 4
REGULATOR 21 21066-501 1
BOLT-UPSET 6X14 22 112B0614 2
WASHER SPRING 6MM 23 461F0600 2
WASHER PLAIN 6MM 24 411B0600 2
SWITCH,MAGNETIC 25 21164-515 1
WIRE,LEAD 26 26011-516 1
WIRE,LEAD,BATTERY 27 26011-3002 1
WIRE,LEAD,STARTER 28 26011-519 1
CAP 29 11012-3012 2
CAP,STARTER 30 59176-506 1
GROMMET 31 92071-527 2
BOLT SMALL 32 114G0812 2
WASHER SPRING 5MM 33 461F0500 2
WASHER PLAIN 5MM 34 411B0500 2
IGNITER 35 21119-3004 1
WASHER,IGNITER 36 92022-3013 2
BOLT 6X22 37 112B0622 2
WASHER SPRING 6MM 38 461F0600 2
WIRE,LEAD,STOP SW GRO 39 26011-517 1
COIL,IGNITION 40 21121-518 1
CAP SPARK PLUG 41 21130-009 2
SPRING-SPARK PLUG CAP 42 92101-001 2
GROMMET 43 92071-517 2
BRACKET,COIL 44 59016-521 1
COVER,PLUG 45 92071-501 2
BOLT-UPSET 6X14 47 112B0614 2
WASHER SPRING 6MM 48 461F0600 4
NUT 6MM 49 311B0600 2
HARNESS,SWITCH 52 26001-3005 1
BRACKET,CLAMP 53 11034-3005 1
CLAMP 54 92037-523 2
WASHER 55 92022-553 2
WASHER 56 92022-553 2
COLLAR 57 92027-519 2
BOLT,6X30 58 92001-3022 2
STUD,6X20 59 171R0620 1
NUT,6M/M 60 311R0600 2
WASHER 61 411S0600 2
CASE,FUEL TAP 62 32099-3752 1
STUD,6X98 63 92004-3007 4
NUT,6M/M 64 311R0600 4
WASHER 65 411S0600 4
WASHER-SPRING,6MM 66 461S0600 4
PANEL-CONTROL 67 59226-3702 1
SCREW,CNTSNK HEAD8X22 68 92009-3004 4
WIRE-LEAD,BATTERY(-) 69 26011-3776 1
FB BAT 12N16-3B 70 26012-1013 1
CAP-BATTERY TERMINAL 71 59176-501 2
PLATE-BATTERY 72 59086-520 1
CUSHION,BATTERY 73 92075-509 1
BAND,BATTERY 74 92072-512 2
BOLT 6X14 75 110R0614 2
WASHER-SPRING,6MM 76 461S0600 2
CASE,CONNECTOR 77 32099-3002 2
NUT,6M/M 78 311R0600 1
WASHER 79 411S0600 1
WASHER-SPRING,6MM 80 461S0600 1
SPARK PLUG B7ES 81 92070-3003 2
