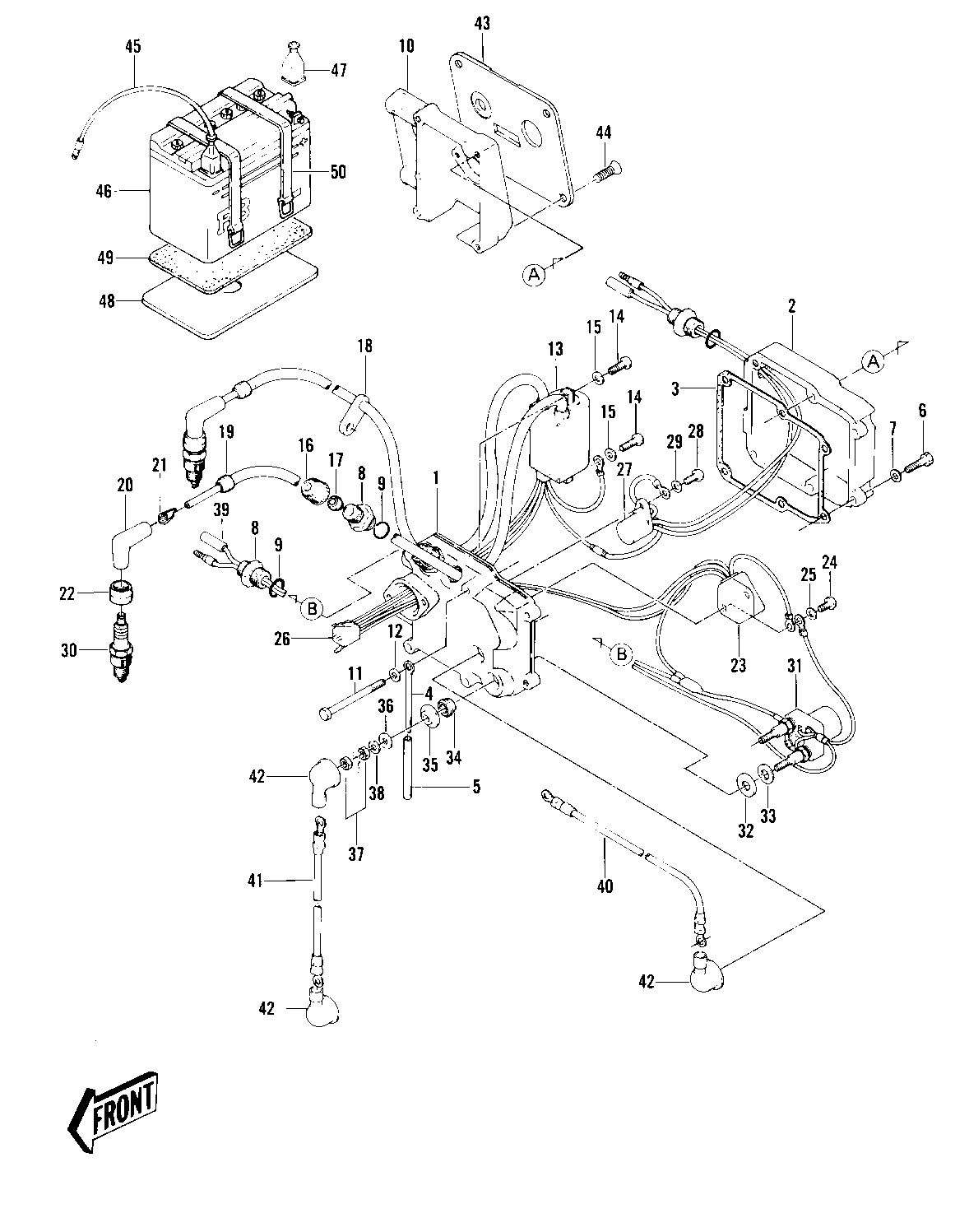

1981 JS440 - ELECTRIC CASE (JS440-A5)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-ELECTRIC,FRONT 1 59416-3004-YR 1
CASE-ELECTRIC,REAR 2 59416-3003-YR 1
GASKET,ELECTRIC CASE 3 11009-3781 1
CLAMP,L=100 4 92037-3736 1
TUBE,VINYL,5X73 5 92059-3017 1
BOLT,HEX HEAD,6X25 6 110R0625 2
WASHER 7 411S0600 2
JOINT 8 59071-3001 4
"0" RING,16MM 9 670B2016 4
CASE,FUEL TAP 10 32099-3752 1
BOLT,6X80 11 110R0680 4
WASHER 12 411S0600 4
IGNITER 13 21119-3016 1
SCREW PAN HEAD 6X20 14 220B0620 2
WASHER PLAIN 6MM 15 410B0600 2
CAP 16 11012-3005 2
GROMMET 17 92071-527 2
GROMMET 18 92071-529 1
GROMMET 19 92071-517 2
CAP SPARK PLUG 20 21130-009 2
SPRING-SPARK PLUG CAP 21 92101-001 2
COVER,PLUG 22 92071-501 2
REGULATOR VOLTAGE 23 21066-3004 1
SCREW PAN HEAD 6X12 24 220B0612 2
WASHER PLAIN 6MM 25 410B0600 2
CONNECTOR,CORD 26 59221-505 1
RELAY 27 27034-3002 1
SCREW PAN HEAD 6X16 28 220B0616 1
WASHER PLAIN 6MM 29 410B0600 1
SPARK PLUG B7ES 30 92070-3003 2
SWITCH,SOLENOID 31 27010-3007 1
WASHER,10.5X24X2.5 32 92022-3035 2
WASHER PLAIN 10MM 33 410B1000 2
GROMMET 34 92071-3004 2
WASHER 35 92022-3036 2
WASHER 36 92022-553 2
NUT,6M/M 37 311R0600 4
WASHER 38 411S0600 2
WIRE-LEAD,L=230 39 26011-3003 1
WIRE-LEAD,BATTERY(+) 40 26011-3778 1
WIRE-LEAD,L=340 41 26011-3005 1
CAP 42 11012-3004 3
PANEL-CONTROL 43 59226-3702 1
SCREW,CNTSNK HEAD8X22 44 92009-3004 4
WIRE-LEAD,BATTERY(-) 45 26011-3776 1
FB BAT 12N16-3B 46 26012-1013 1
CAP-BATTERY TERMINAL 47 59176-501 2
PLATE-BATTERY 48 13169-3014 1
CUSHION,BATTERY 49 92075-509 1
BAND,BATTERY 50 92072-512 2
