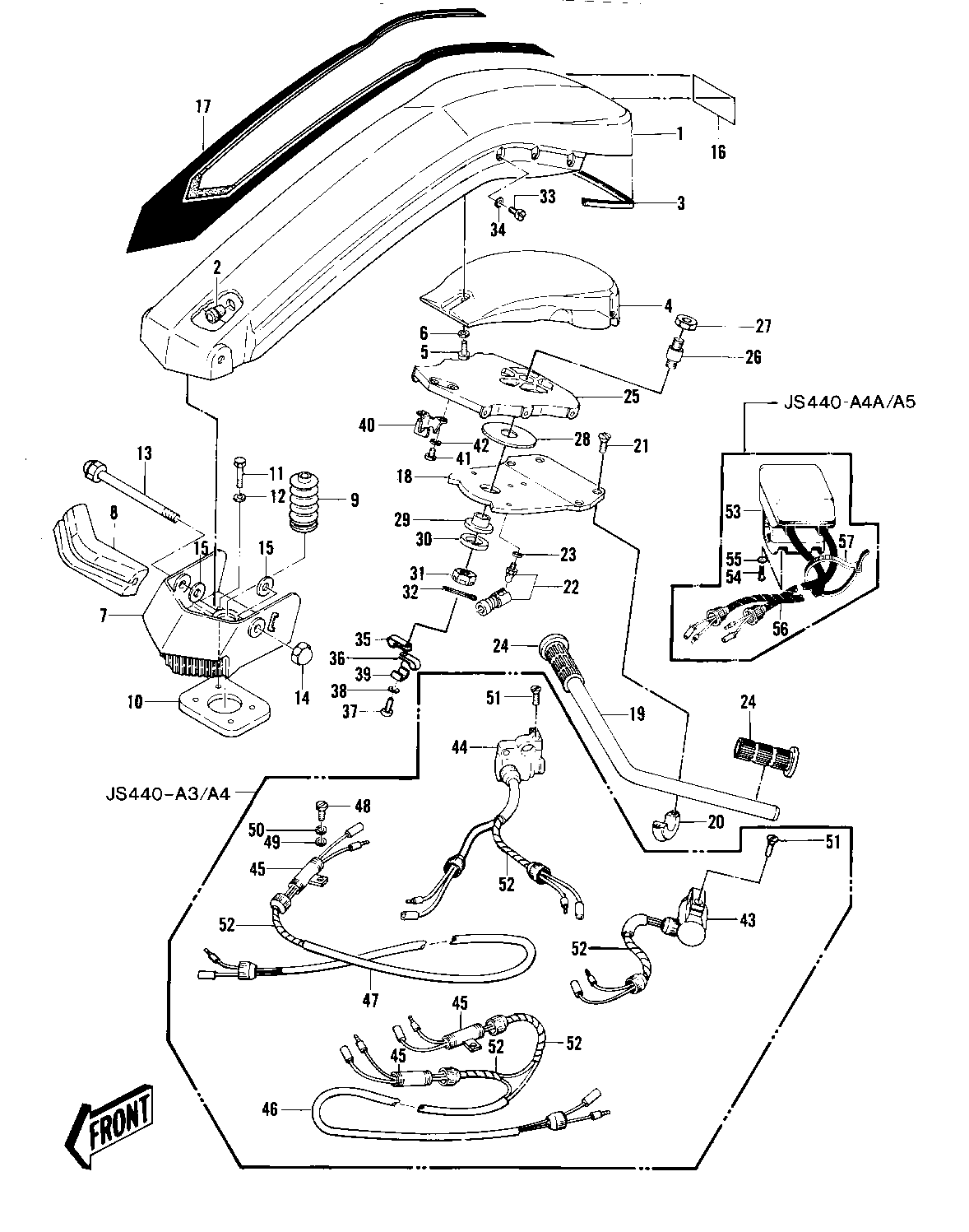

1981 JS440 - HANDLE POLE/SWITCHES ('79-'81 A3/A4/A4A/

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
POLE-HANDLE-PLAIN 1 59166-3002-8C 1 INC. REF. NOS. 16, 17
GROMMET 2 92071-530 1
GROMMET 3 92071-534 1
FLOAT ASSY, HANDLE 4 16031-506 1
SCREW 0.16X0.5 5 92011-562 3
WASHER 6 92022-563 3
BRACKET-HANDLE-POLE,S 7 39021-3701-F2 1 ~H/NO. KAW253851278
BRACKET-HANDLE-POLE,S 7 39021-3701-F2 1 H/NO. KAW253861278~
DAMPER 8 92075-519 1
COVER-STEERING CABLE 9 59176-514 1
PLATE-POLE BRACKET 10 59086-538 1
BOLT,8X30 11 92150-3721 4
WASHER 12 411S0800 4
BOLT,14X183 13 92001-3018 1
NUT 14M/M 14 92015-507 1
WASHER 15 92022-507 2 ~H/NO. KAW253851278
WASHER,O36XO15X4.5T 15 92022-3024 2 H/NO. KAW253861278~
LABEL-SFTY-HNDL POLE 16 56022-507 1
DECAL, HANDLE POLE 17 56030-3011 1
PLATE,HANDLEBAR 18 13169-3004 1
HANDLEBAR 19 32032-3017 1
CLAMP,HANDLE PIPE 20 92037-503 2
SCREW,CNTSNK HEAD8X22 21 92009-3004 4
JOINT-BALL 22 59266-3707 1
WASHER-SPRING,6MM 23 461S0600 1
GRIP,HANDLE,RH 24 46075-3704 2
BRACKET,SUPPORT 25 11046-3847 1
STUD 26 92004-3006 1
NUT,16M/M 27 92015-536 1
BUSHING 28 92028-512 1
BUSHING 29 92028-513 1
WASHER 30 92022-571 1
NUT,CASTLE,18M/M 31 92015-3006 1
PIN-COTTER,4X40 32 550S4040 1
BOLT 6X16 33 110R0616 6
WASHER 34 411S0600 6
CLAMP,LEAD WIRE 35 92037-3007 1
CLAMP,LEAD WIRE 36 92037-3008 1
SCREW-PAN-CROS 36 220R0516 1
WASHER-SPRING,5MM 38 461S0500 1
WASHER,CLAMP 39 92022-3014 1
HOLDER,CABLE 40 14044-3001 1
BOLT 6X12 41 110R0612 2
WASHER-SPRING,6MM 42 461S0600 2
SWITCH,START 43 27010-3001 1
SWITCH,STOP 44 27010-3002 1
CASE,CONNECTOR 45 32099-3002 3
HARNESS,START 46 26001-3003 1
HARNESS,STOP 47 26001-3004 1
SCREW,6X20 48 220R0620 2
WASHER 49 411S0600 2
WASHER-SPRING,6MM 50 461S0600 2
SCREW,OVL CNTSNK,6X22 51 222R0622 2
TUBE,SPIRAL 52 92059-3010 5
