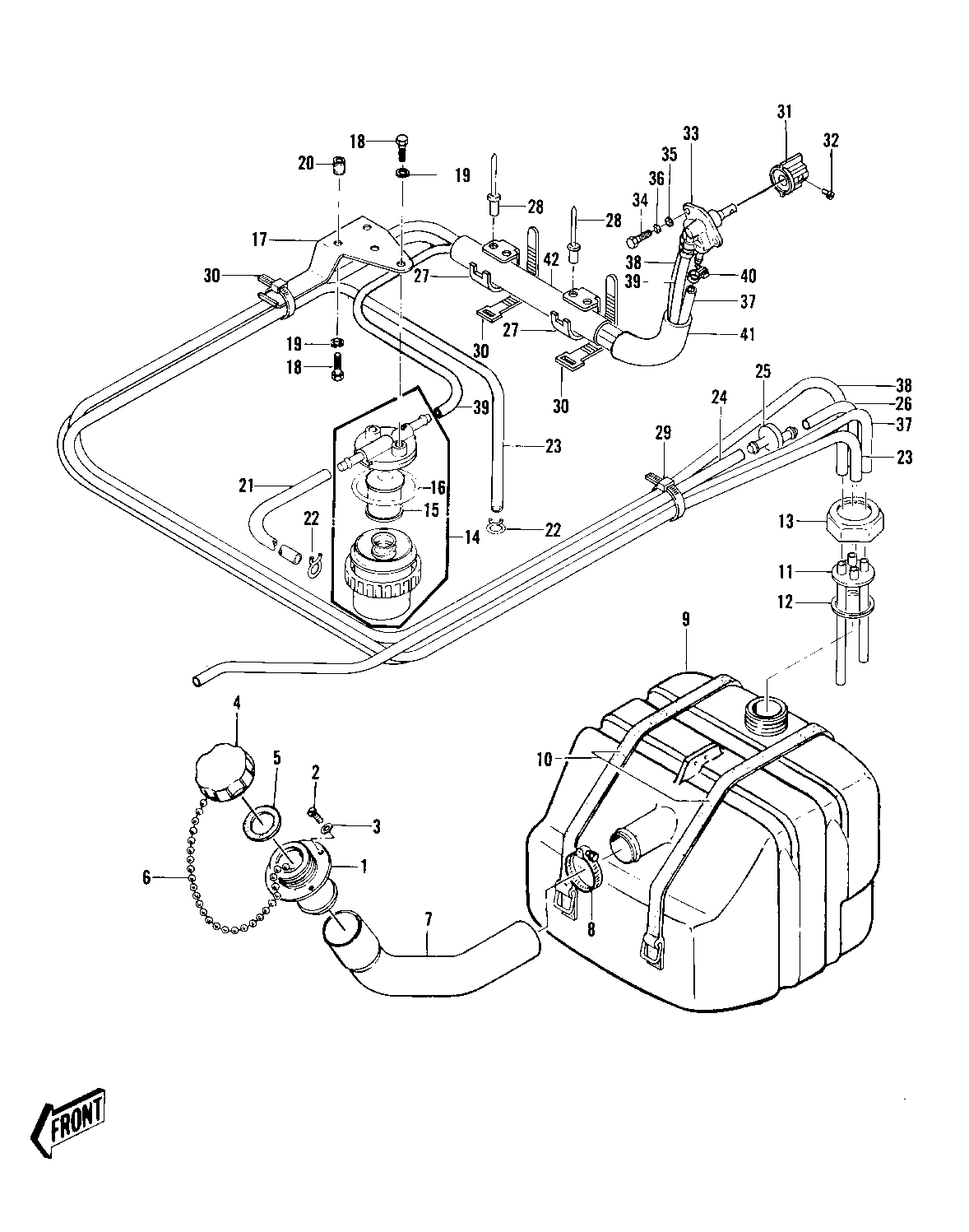

1981 JS440 - FUEL TANK ('79-'81 A3/A4/A4A/A5)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILLER,FUEL TANK 1 59231-3001 1
SCREW 0.16X0.5 2 92011-562 4
WASHER 3 92022-563 4
CAP,FUEL TANK 4 51049-3001 1
GASKET,FUEL TANK CAP 5 11009-3020 1
CHAIN,FUEL TANK CAP 6 92057-3003 1
HOSE,FUEL INLET,307.5 7 92059-3020 1
HOSE CLAMP 8 92037-3009 1
TANK-FUEL 9 51004-3702 1
BAND,FUEL TANK 10 92072-521 2
OUTLET,FUEL 11 31064-3001 1
GASKET 12 92065-504 1
RETAINER 13 23072-501 1
FILTER-FUEL 14 49019-3701 1
FILTER,FUEL ELEMENT 15 14043-5001 1
"0" RING,FILTER BASE 16 92055-3006 1
BRACKET,FUEL FILTER 17 11047-3743 1
BOLT 6X12 18 110R0612 4
WASHER-SPRING,6MM 19 461S0600 4
NUT-INSERT,6MM $$ 20 92015-533 2
TUBE,6X10X200 21 92059-3011 1
CLAMP,SPARK PLUG CAP 22 92037-1173 2
TUBE,6X10X760 23 92059-3012 1
TUBE,FUEL,6X10X940 24 92059-3025 1
VALVE,RELIEF 25 49057-3001 1
TUBE,FUEL,5.8X12.2X55 26 92059-3026 1
CLAMP,TUBE 27 92037-3005 2
RIVET-FUEL LINE CLAMP 28 59281-505 4
BAND,SHORT 29 92072-030 1
BAND,MIDDLE 30 92072-031 3
KNOB,COCK 31 92077-503 1
SCREW-PAN-CROS 32 220R0408 1
TAP-ASSY,FUEL 33 51023-3705 1
BOLT,5X12 34 110R0512A 2
WASHER 35 411S0500 2
WASHER-SPRING,5MM 36 461S0500 2
TUBE,6X1300 37 92059-552 1
TUBE,6X1300,RESERVE 38 92059-553 1
TUBE,6X10X960 39 92059-3007 1
CLAMP 40 92037-551 3
TUBE,GUARD 41 92059-3008 1
TUBE,VINYL,22X350 42 92059-3018 1
