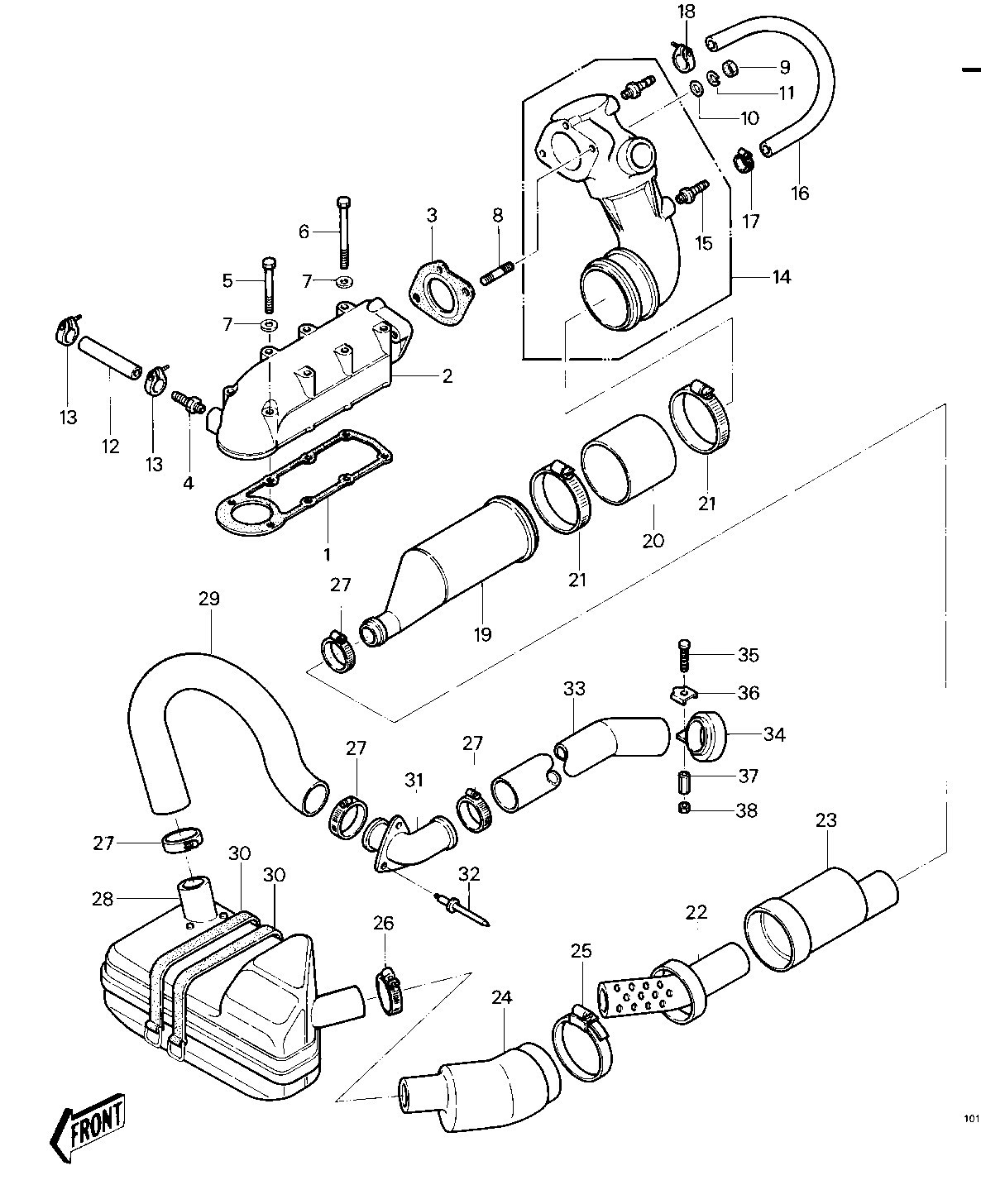

1985 JS550 - MUFFLER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 1 11009-3051 1
PIPE-EXHAUST FRONT 2 18049-3008-YR 1
GASKET 3 11060-3730 1
JOINT,HOSE 4 92005-3001 1
BOLT,6X60 5 110R0660 2
BOLT,6X80 6 110R0680 6
WASHER 7 410S0600 8
STUD,8X35 8 172R0835 2
NUT,8 M/M 9 311M0800 2
WASHER 10 410S0800 2
WASHER SPRING 8MM 11 461S0800 2
TUBE,9X16X80 12 92059-3039 1
CLAMP,HOSE 13 92037-504 2
PIPE-COMP-EXHAUST 14 49062-3001-YR 1
JOINT,HOSE 15 92005-3001 2
TUBE,9X16X230 16 92059-3040 1
CLAMP,HOSE 17 92037-504 1
CLAMP,HOSE 18 92037-504 1
MUFFLER 19 18001-3008 1
TUBE,MUFFLER 20 92059-3041 1
CLAMP 21 92037-541 2
PIPE-RESNTR. CONNECTR 22 59151-528 1
TUBE 23 92059-542 1
TUBE 24 92059-543 1
CLAMP 25 92037-541 1
CLAMP,HOSE 26 92037-506 1
CLAMP 27 92037-509 4
MUFFLER-COMP,WATERBOX 28 49070-3714 1
HOSE 29 92059-528 1
BAND 30 92072-511 2
PIPE,TAIL 31 59156-506 1
RIVET 32 92039-3701 3
HOSE,TAIL 33 92059-549 1
CLAMP 34 92037-545 1
SCREW,6X45 35 92009-3747 1
WASHER 36 92095-513 1
NUT,6M/M 37 92015-532 1
NUT,6M/M 38 311R0600 1
