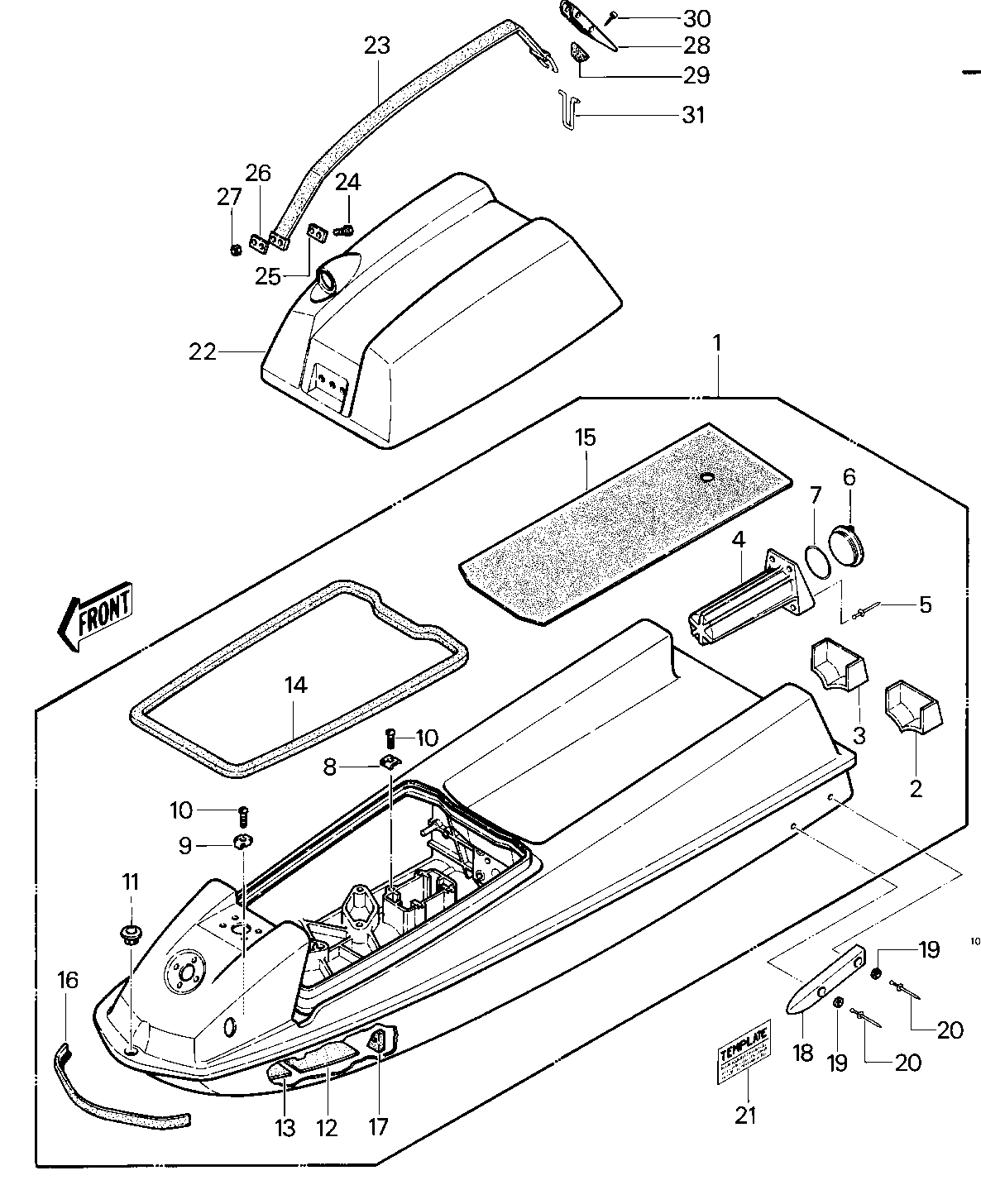

1985 JS550 - HULL/ENGINE HOOD (JS550-A1/A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HULL-ASSY,JET-WHITE 1 59431-3704-8C 1 REFER TO REF. NO. 21
HULL EXTENSION-LH 2 59251-3006-8C 1
HULL EXTENSION-RH 3 59251-3005-8C 1
CASE-ASSY-FIRE 4 32099-5501 1
RIVET 5 59281-506 4
CAP,FIRE EXT.BLACK 6 11012-3724 1
"0" RING 7 671B2585 1
HOOK 8 27012-501 7
HOOK 9 27012-502 2
SCREW 0.22 X 0.563 10 92011-561 9
BUSHING 11 92028-3013 1
DAMPER,6.0TX90X300 12 92075-521 2
DAMPER,3.OTX90X200 13 92075-522 2
GASKET,ENGINE COVER 14 92065-539 1
MAT 15 59131-502 1
BUMPER 16 59201-502 1
DETENT,STEERING CABLE 17 59346-504 3
STABILIZER 18 59437-3002 2 REFER TO REF. NO. 21
WASHER,5X16X1.5 19 92022-3041 4
RIVET 20 92039-3002 4
INST JS STABILIZER 21 99969-0560 AR
HOOD-COMP-ENGINE,JET 22 59456-3719-8C 1
BAND,HOOD 23 92072-3746 1
BOLT,6X30 24 92001-3022 2
WASHER,BAND 25 92022-509 1
PLATE-ENG. CVR. STRAP 26 59086-501 1
NUT,6M/M 27 311R0600 2
LEVER 28 13168-3701 1
DETENT-HOOD LEVER 29 59346-503 1
SCREW 0.16X0.5 30 92011-562 1
HINGE-HOOD LEVER 31 53009-503 1
