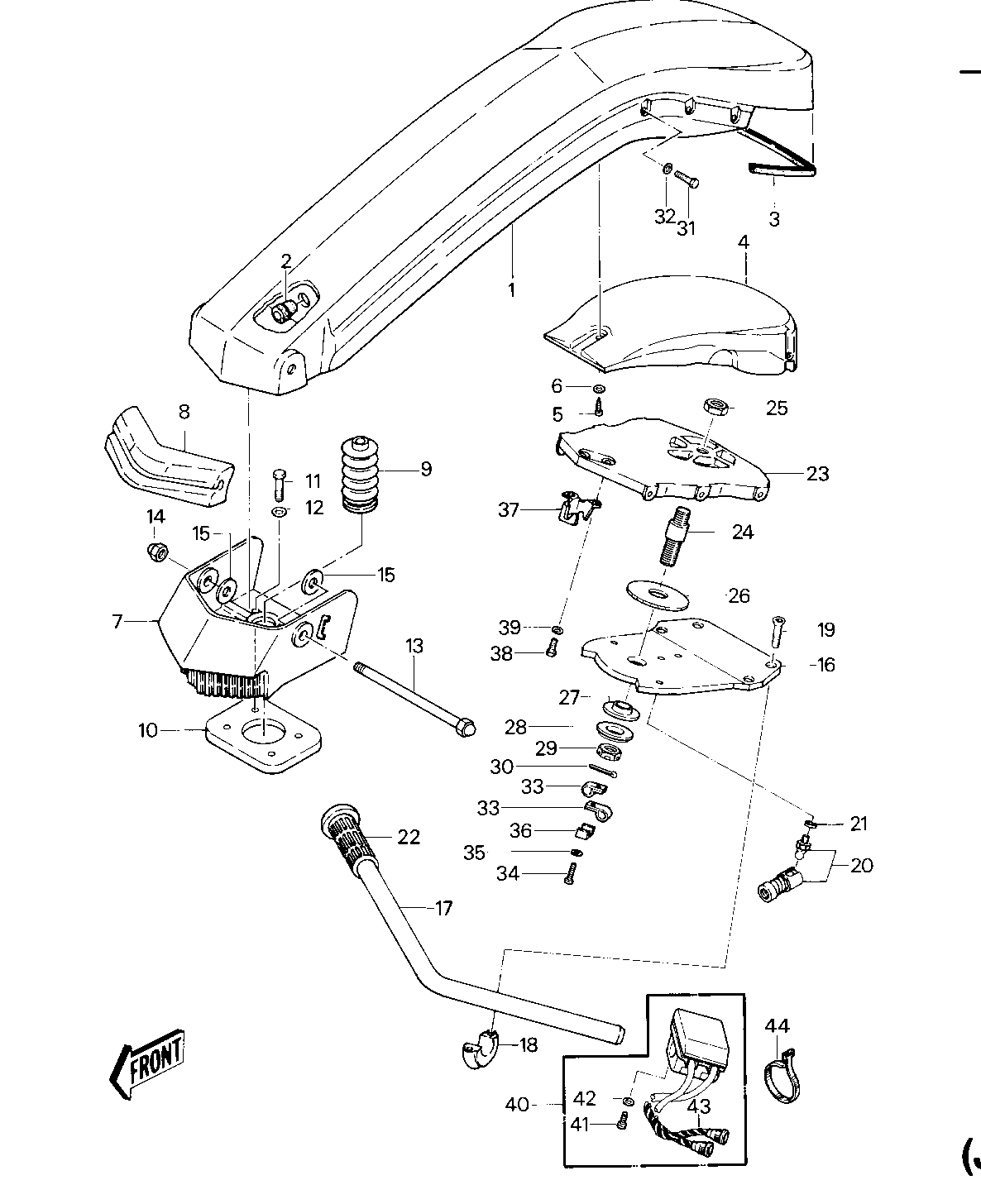

1985 JS550 - HANDLE POLE/SWITCHES (JS550-A1/A2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
POLE-HANDLE-PLAIN | 1 | 59166-3002-8C | 1 | ||
GROMMET | 2 | 92071-530 | 1 | ||
GROMMET | 3 | 92071-534 | 1 | ||
GROMMET | 3 | 92071-534 | 1 | ||
SCREW 0.16X0.5 | 5 | 92011-562 | 3 | ||
WASHER | 6 | 92022-563 | 3 | ||
BRACKET-HANDLE-POLE,S | 7 | 39021-3701-F2 | 1 | ||
DAMPER | 8 | 92075-519 | 1 | ||
COVER-STEERING CABLE | 9 | 59176-514 | 1 | ||
UNAVAILABLE IN PRICE BOOK | 10 | 1 | |||
BOLT,8X30 | 11 | 92150-3721 | 4 | ||
WASHER | 12 | 411S0800 | 4 | ||
BOLT,14X183 | 13 | 92001-3018 | 1 | ||
NUT 14M/M | 14 | 92015-507 | 1 | ||
WASHER,O36XO15X4.5T | 15 | 92022-3024 | 2 | ||
PLATE,HANDLEBAR | 16 | 13169-3004 | 1 | ||
HANDLEBAR | 17 | 32032-3017 | 1 | ||
CLAMP,HANDLE PIPE | 18 | 92037-503 | 2 | ||
SCREW,CNTSNK HEAD8X22 | 19 | 92009-3004 | 4 | ||
JOINT-BALL | 20 | 59266-3707 | 1 | ||
WASHER-SPRING,6MM | 21 | 461S0600 | 1 | ||
GRIP,HANDLE,RH | 22 | 46075-3704 | 2 | ||
BRACKET,SUPPORT | 23 | 11046-3847 | 1 | ||
STUD | 24 | 92004-3006 | 1 | ||
NUT,16M/M | 25 | 92015-536 | 1 | ||
BUSHING | 26 | 92028-512 | 1 | ||
BUSHING | 27 | 92028-513 | 1 | ||
WASHER | 28 | 92022-571 | 1 | ||
NUT,CASTLE,18M/M | 29 | 92015-3006 | 1 | ||
PIN-COTTER,4X40 | 30 | 550S4040 | 1 | ||
BOLT 6X16 | 31 | 110R0616 | 6 | ||
WASHER | 32 | 411S0600 | 6 | ||
CLAMP,LEAD WIRE | 33 | 92037-3007 | 2 | ||
SCREW-PAN-CROS | 34 | 220R0516 | 1 | ||
WASHER-SPRING,5MM | 35 | 461S0500 | 1 | ||
WASHER,CLAMP | 36 | 92022-3014 | 1 | ||
HOLDER,CABLE | 37 | 14044-3001 | 1 | ||
BOLT 6X12 | 38 | 110R0612 | 2 | ||
WASHER-SPRING,6MM | 39 | 461S0600 | 2 | ||
SWITCH ASSY | 40 | 27004-3002 | 1 | ||
SCREW,PAN HEAD,5X20 | 41 | 220R0520A | 4 | ||
WASHER,PLAIN,5MM | 42 | 410S0500 | 4 | ||
TUBE,SPIRAL | 43 | 92059-3010 | 2 | ||
BAND,MIDDLE | 44 | 92072-031 | 1 |
