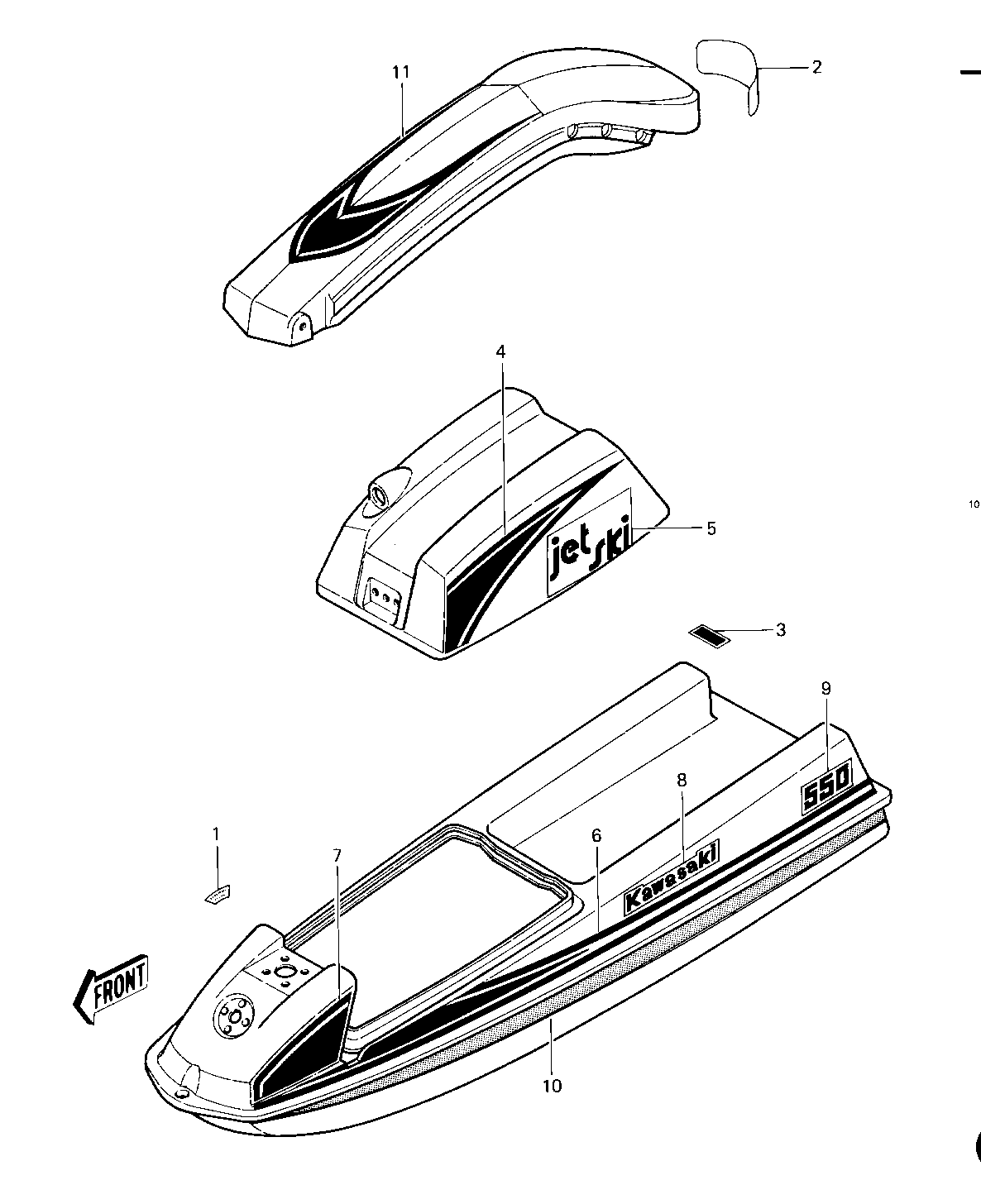

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,FUEL 1 56040-3001 1
LABEL-SFTY-HNDL POLE 2 56022-507 1
LABEL FIRE EXT 3 56022-506 1
DECAL-LH ENGINE COVER 4 56030-3044 1
DECAL-RH ENGINE COVER 4 56030-3043 1
DECAL-"JET SKI" LOGO 5 56030-3045 2
DECAL-LH REAR DECK 6 56030-3039 1
DECAL-RH REAR DECK 6 56030-3038 1
DECAL,FR-DECK LH RED 7 56030-3042 1
DECAL,FR-DECK RH RED 7 56030-3041 1
DECAL-"KAWASAKI" LOGO 8 56030-3037 2
DECAL-"550" LOGO 9 56030-3046 2
DECAL-LH HULL 10 56030-3036 1
DECAL-RH HULL 10 56030-3035 1
DECAL-HANDLE POLE 11 56030-3040 1
