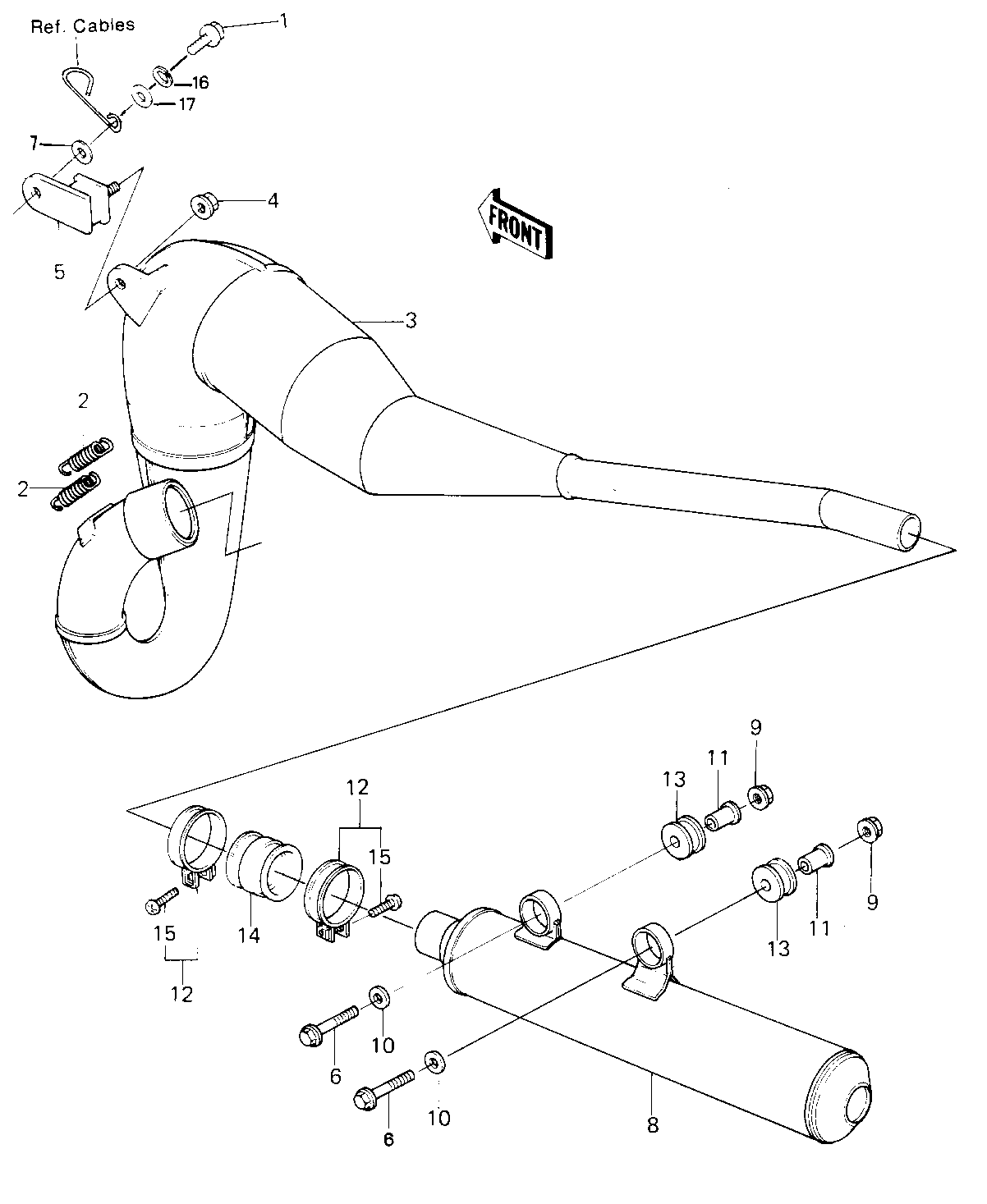

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET 8X25 1 115G0825 1
SPRING-CONNECTOR 2 18071-003 2
BODY-COMP-MUFFLER,BLK 3 18002-1126 1
NUT,LOCK,8MM 4 92015-1124 1
DAMPER,MUFFLER FITING 5 92075-1060 1
BOLT,FLANGED,8X30 6 130G0830 2
WASHER,8.5X20X1.6 7 92022-1561 1
MUFFLER,F.BLACK 8 18002-1163 1
NUT,LOCK,8MM 9 92015-1124 2
WASHER,PLAIN 10 92022-298 2
COLLAR,FUEL TANK FITT 11 92027-1134 2
CLAMP,MUFFLER 12 92037-177 2
DAMPER,MUFFLER 13 92075-1196 2
DUST SHIELD,MUFFLER 14 92093-1014 1
SCREW-PAN-CROS,5X25 15 220B0525 2
WASHER SPRING 8MM 16 461F0800 1
WASHER PLAIN 8MM 17 410B0800 1
