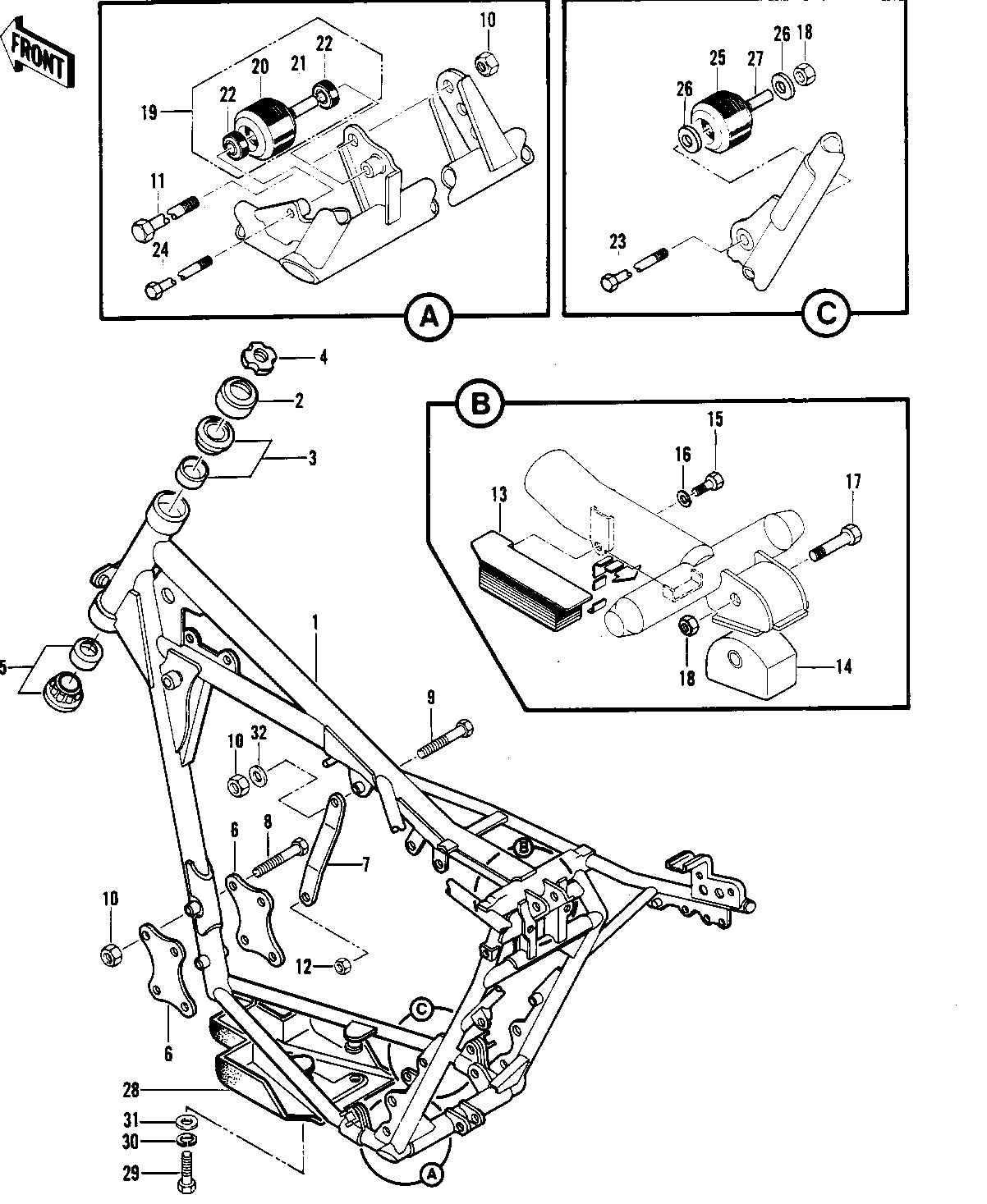

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FRAME | 1 | 32002-4006 | 1 | ||
CAP,STEERING STEM | 2 | 46098-015 | 1 | ||
BEARING,STEERING STEM | 3 | 92047-017 | 1 | UPPER | |
NUT | 4 | 92015-1546 | 1 | ||
BEARING,ROLLER,32006 | 5 | 92116-1008 | 1 | LOWER | |
BRACKET,ENGINE | 6 | 32029-1112 | 2 | ||
BRACKET,ENGINE | 7 | 32029-4016 | 1 | ||
BOLT HEX HEAD,10X66.5 | 8 | 92001-1033 | 4 | ||
BOLT | 9 | 92001-1412 | 1 | ||
NUT,LOCK,10MM | 10 | 92019-021 | 6 | ||
BOLT,HEX HEAD,10X127 | 11 | 92001-4001 | 1 | ||
NUT,10MM | 12 | 92015-1415 | 1 | ||
DAMPER,REAR SHOCK | 13 | 92075-1249 | 1 | ||
DAMPER | 14 | 92075-4026 | 1 | ||
BOLT SMALL | 15 | 114G0812 | 1 | ||
WASHER SPRING 8MM | 16 | 461F0800 | 1 | ||
BOLT,8X40 | 17 | 115G0840 | 1 | ||
NUT,LOCK,8MM | 18 | 92015-1124 | 2 | ||
ROLLER,CHAIN ADJUST | 19 | 92122-4004 | 1 | ||
ROLLER | 20 | 92122-1014 | 1 | ||
SPACER,CHN GDE ROLLER | 21 | 92027-4007 | 1 | ||
BEARING,BALL | 22 | 92045-1009 | 2 | ||
BOLT-SMALL-UPSET,8X55 | 23 | 115G0855 | 1 | ||
BOLT HEX HEAD 8X70 | 24 | 114B0870 | 1 | ||
ROLLER | 25 | 92122-4002 | 1 | ||
WASHER,8.5X20X1.6 | 26 | 92022-1561 | 2 | ||
COLLAR | 27 | 92027-4012 | 1 | ||
GUARD,ENG | 28 | 55020-4005 | 1 | ||
BOLT-UPSET,6X16 | 29 | 112G0616 | 3 | ||
WASHER SPRING 6MM | 30 | 461F0600 | 3 | ||
WASHER-PLAIN,7MM | 31 | 92022-240 | 3 | ||
WASHER PLAIN 10MM | 32 | 411B1000 | 1 |
