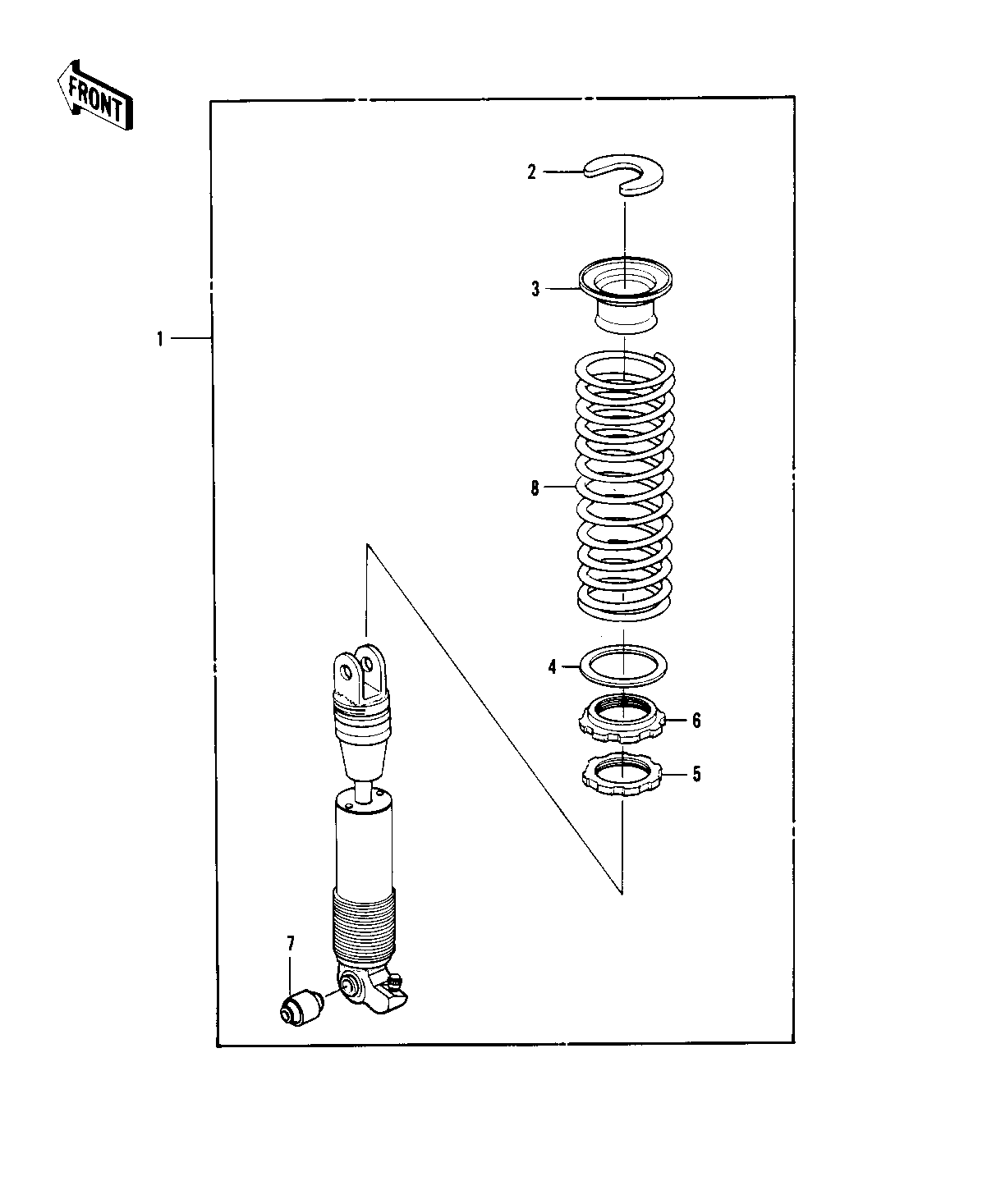

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHOCK ABSBR RR 1 45014-4007 1
GUIDE,SPRING 2 13070-1041 1
SPRING GUIDE,SHK ABS 3 13070-4003 1
WASHER,SPRING 4 92022-1235 1
NUT,SPRING ADJUST 5 92015-1139 1
NUT,SPRING ADJUST 6 92015-1140 1
BUSHING-RUBBER,SHOCKA 7 92092-1008 1
SPRING,RR SHOCK,STD 8 92081-1371 1
SPRING 8 92081-1319 (1 I.D.=RED/YELLOW
SPRING 8 92081-1320 (1 I.D.=YELLOW/WHITE
