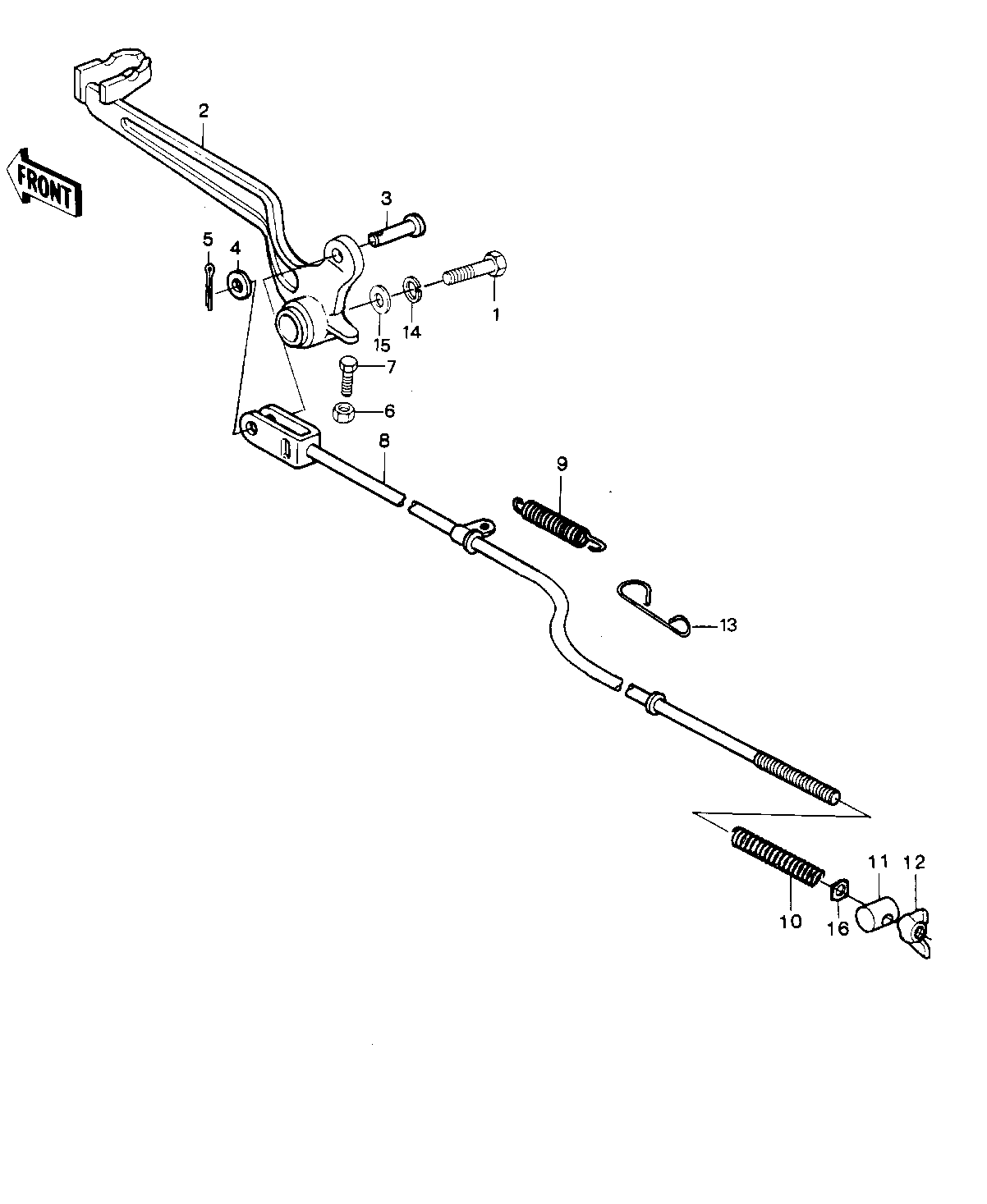

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT SMALL 1 114G0812 1
LEVER-BRAKE,PEDAL 2 43001-4008 1
PIN-BRAKE ROD FITTING 3 92043-064 1
WASHER PLAIN 6MM 4 410B0600 1
PIN COTTER 2.0X15 5 550D2015 1
NUT 6MM 6 311B0600 1
BOLT 6X22 7 112B0622 1
ROD-BRAKE 8 43011-4004 1
SPRING RETURN 9 92081-1059 1
SPRING,BRAKE ROD 10 43012-001 1
PIN,BRAKE 11 92043-1024 1
NUT,WING,6M/M 12 92015-4004 1
HOOK 13 27012-4001 1
WASHER SPRING 8MM 14 461F0800 1
WASHER,8.5X20X1.6 15 92022-1561 1
WASHER, BRAKE ROD 16 92022-4003 1
