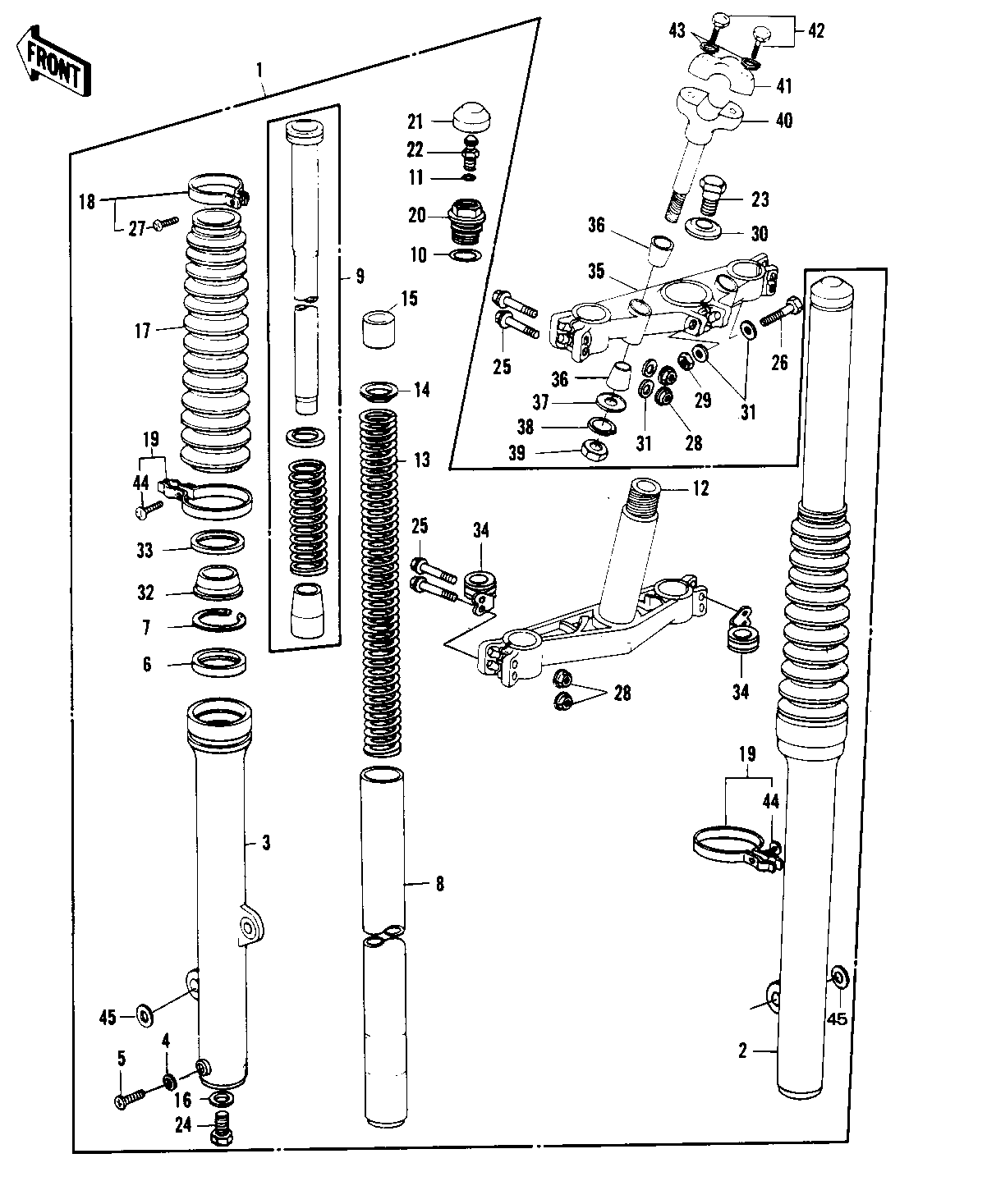

1981 KDX250 - FRONT FORK ('81KDX250-B1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-4004 1
TUBE,RH,FORK OUTER 2 44006-4001 1
TUBE,LH,FORK OUTER 3 44005-4001 1
GASKET FORK DRAIN PLG 4 44045-002 2
SCREW PAN HEAD 4X8 5 220B0408 2
OIL SEAL,FORK OUT TUB 6 92049-1042 2
SNAP RING,FORK OUT TU 7 92033-1035 2
TUBE,FORK INNER 8 44013-4001 2
CYLINDER-FORK 9 44022-4001 2
"0" RING,FORK TOP CAP 10 92055-1050 2
"0" RING,AIR VALVE 11 92055-1018 2
STEM,STEERING 12 44037-1065 1
SPRING,FORK INNER 13 44026-4001 2
GUIDE,FORK SPRING 14 44028-1003 2
SPACER,FORK SPRING 15 92026-4002 2 L=25 MM
GASKET,FORK CYLINDER 16 11009-1127 2
BOOT,FORK 17 49006-1174 2
BAND,BOOT 18 92072-1046 2
CLAMP,BOOT,L.H 19 92072-1026 2
CAP,FORK TOP 20 44029-1008 2
CAP,RUBBER,FORK TOP 21 44029-1009 2
VALVE ASSY,AIR 22 16126-1003 2
BOLT,FORK TOP 23 44041-065 1
BOLT,FORK CYLINDER 24 92001-1186 2
BOLT,FLANGED,8X55 25 130G0855 8
BOLT,HEX HEAD,8X57 26 92001-1141 1
SCREW-PAN-CROS 27 220B0420 2
NUT,8M/M 28 44007-1002 8
NUT,LOCK,8MM 29 92015-1124 1
WASHER 30 44043-052 1
WASHER PLAIN 8MM 31 410B0800 6
DUST SHIELD,FORK OUTR 32 92093-1035 2
CASE,DUST SHIELD 33 32099-1013 2
CLAMP,CABLE 34 92072-1027 2
HEAD,STEERING STEM 35 44039-4004 1
DAMPER RUBBER,HANDLE 36 92075-275 4
WASHER 37 92022-4012 2
WASHER SPRING 10MM 38 461F1000 2
NUT,LOCK,10MM 39 92019-021 2
HOLDER-HANDLEBAR LOW 40 46012-010 2
HOLDER-HANDLEBAR 41 46012-008 2
BOLT 8X38 42 92001-1405 4
WASHER SPRING 8MM 43 461F0800 4
SCREW PAN HEAD 6X20 44 220B0620 2
WASHER,FORK 45 92022-4006 2
