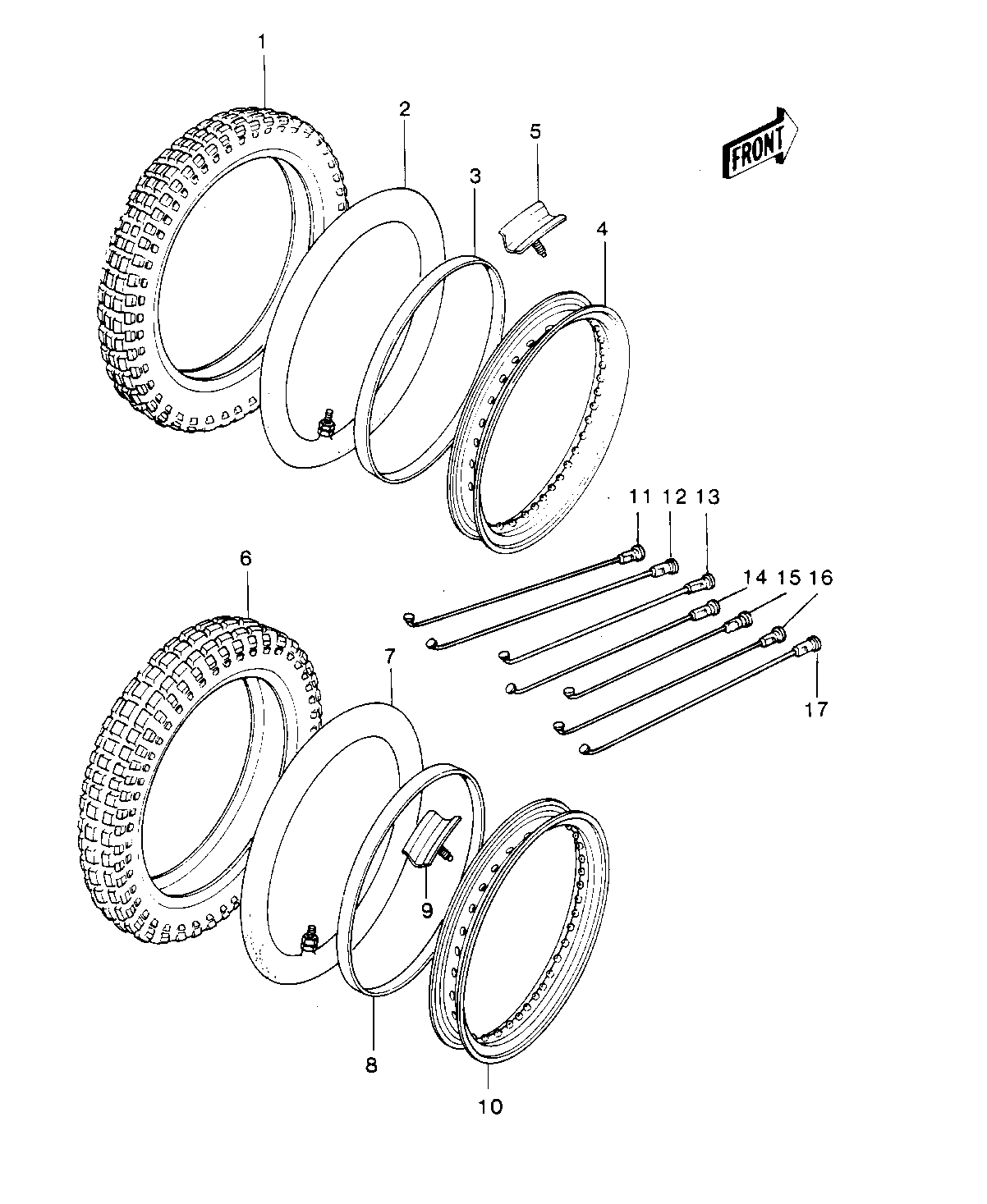

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE 300-21 K390 F 1 41002-4011 1 DUNLOP SPORTS K390
TUBE,2.75/3.70-21 2 41022-1021 1
BAND,RIM,3.00-21 3 41023-1001 1
RIM,1.60X21E 4 41025-4003 1
PROTECTOR,BEAD 1.60A 5 41024-010 1
TIRE 510-18 K390 R 6 41002-4012 1 DUNLOP SPORTS K390
TUBE 450/510-18 7 41022-4009 1
BAND,RIM,4.00/5.10-18 8 41023-1006 1
PROTECTORBEAD 9 41024-009 1
RIM,2.50X18E 10 41025-4004 1
SPOKE-ASY,FR INNER LH 11 41027-5013 9 195.5 MM X 102
SPOKE-ASY,FR RH 12 41027-5014 18 221.5 MM X 132
SPOKE-ASY,FR OUTER LH 13 41028-5012 9 194.5 MM X 83
SPOKE-ASY,RR INNER LH 14 41027-5030 9 181.5 MM X 122
SPOKE-ASY,RR INNER RH 15 41027-5031 9 162 MM X 102
SPOKE-ASY,RR OUTER LH 16 41028-5027 9 178.5 MM X 129
SPOKE-ASY,RR OUTER RH 17 41028-5028 9 159 MM X 72
