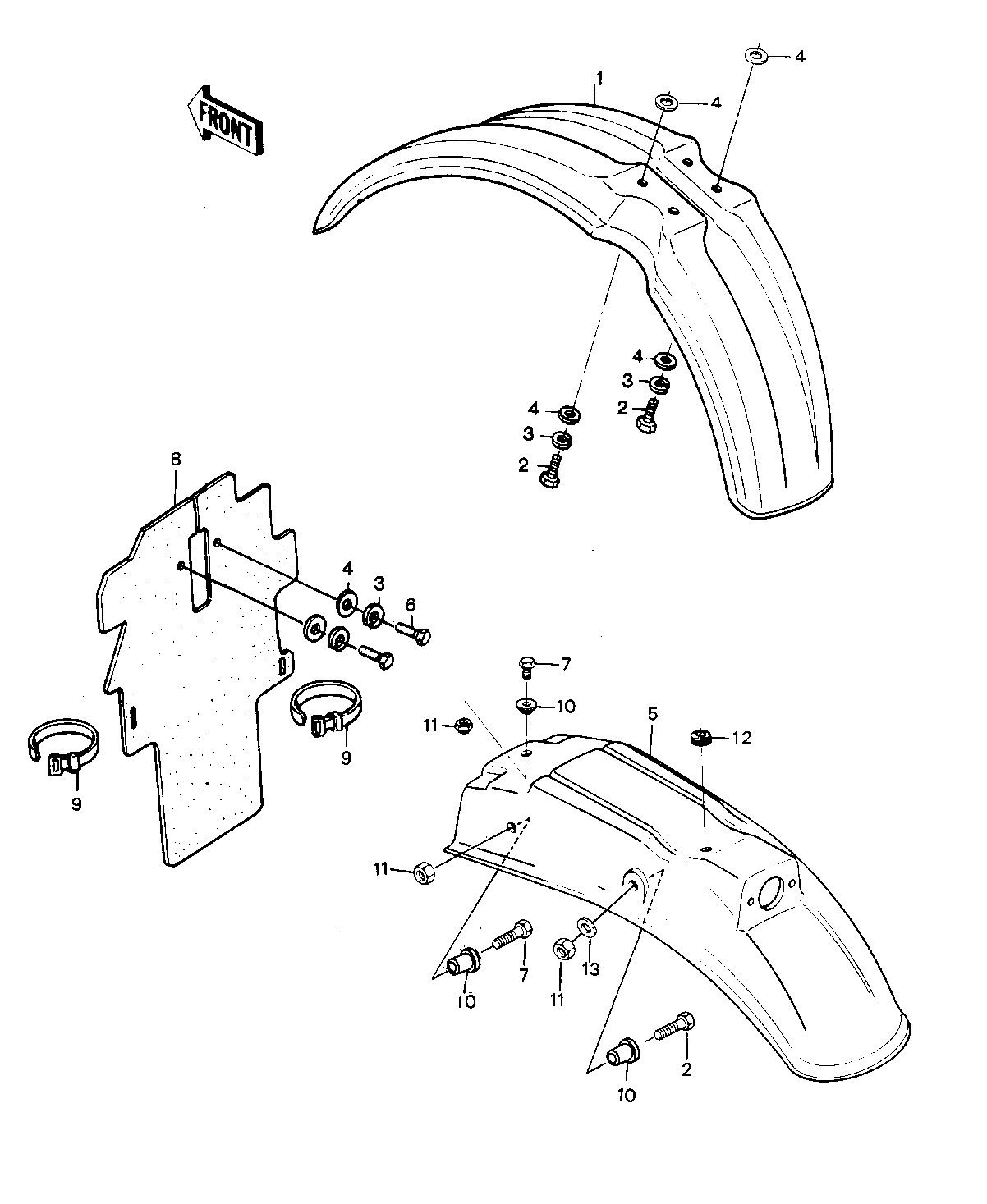

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,L.GREEN 1 35004-1233-6W 1
BOLT-UPSET,6X16 2 112G0616 6
WASHER SPRING 6MM 3 461F0600 6
WASHER 6.5X20X1.6T 4 92022-125 10
FENDER-RR,L.GREEN 5 35022-1068-6W 1
BOLT-UPSET,6X12 6 112G0612 2
BOLT-UPSET 6X14 7 112B0614 3
FLAP 8 35019-1013 1
BAND 9 92072-3505 2
COLLAR 10 92027-1260 5
NUT 11 92019-008 5
GROMMET 12 92071-024 1
WASHER PLAIN 6MM 13 411B0600 2
