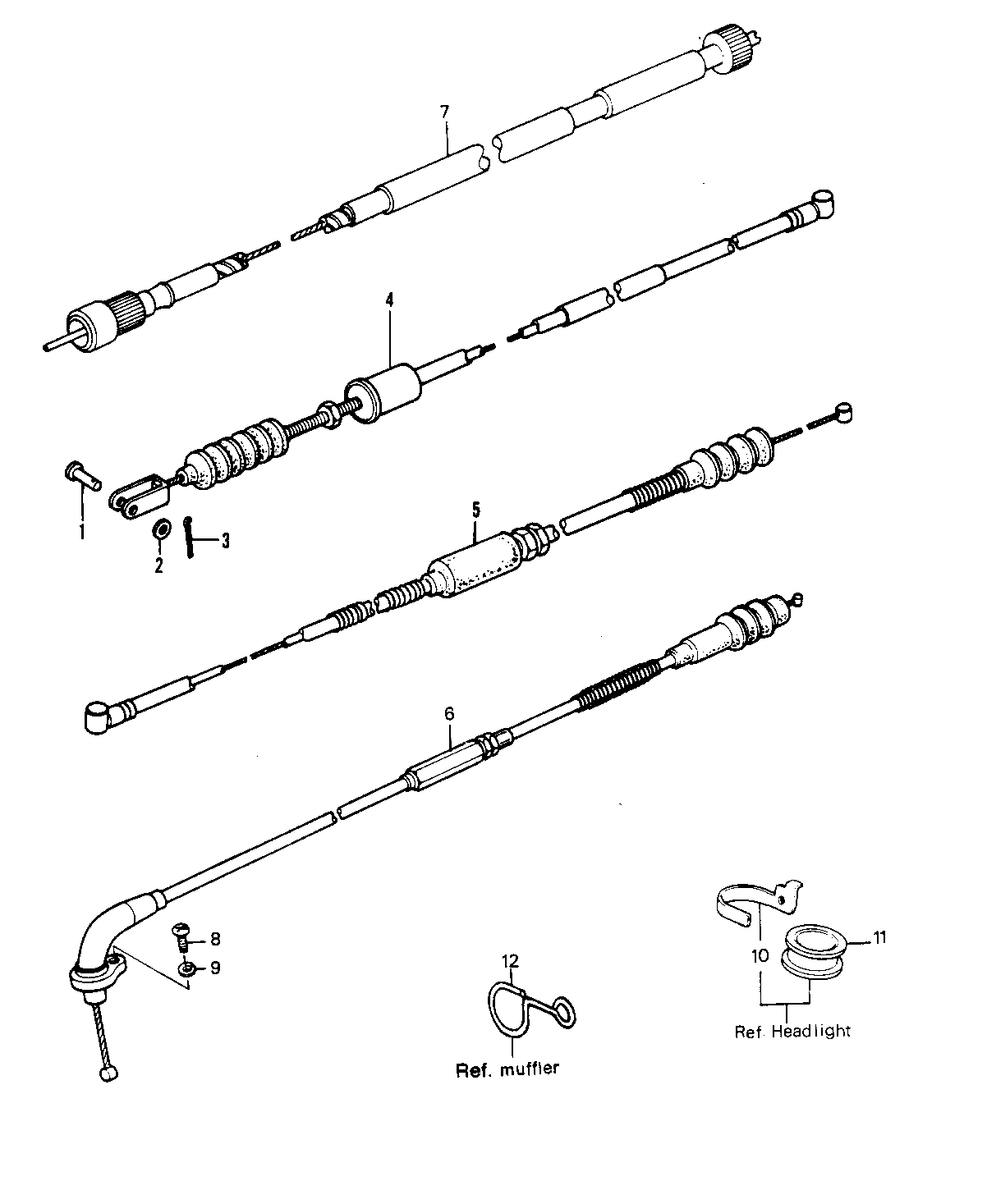

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-BRAKE ROD FITTING 1 92043-064 1
WASHER PLAIN 6MM 2 410B0600 1
PIN COTTER 2.0X15 3 550D2015 1
CABLE,BRAKE 4 54005-4002 1
CABLE,CLUTCH 5 54011-1033 1
CABLE,THROTTLE 6 54012-1057 1
CABLE,SPEEDOMETER 7 54001-4001 1
SCREW PAN HEAD 5X10 8 220B0510 1
WASHER SPRING 5MM 9 461F0500 1
CLAMP, CABLE GUIDE 10 92037-4002 1
CABLE GUIDE,HEAD LAMP 11 13070-4001 1
CLAMP,CLUTCH CABLE 12 92037-1202 1
