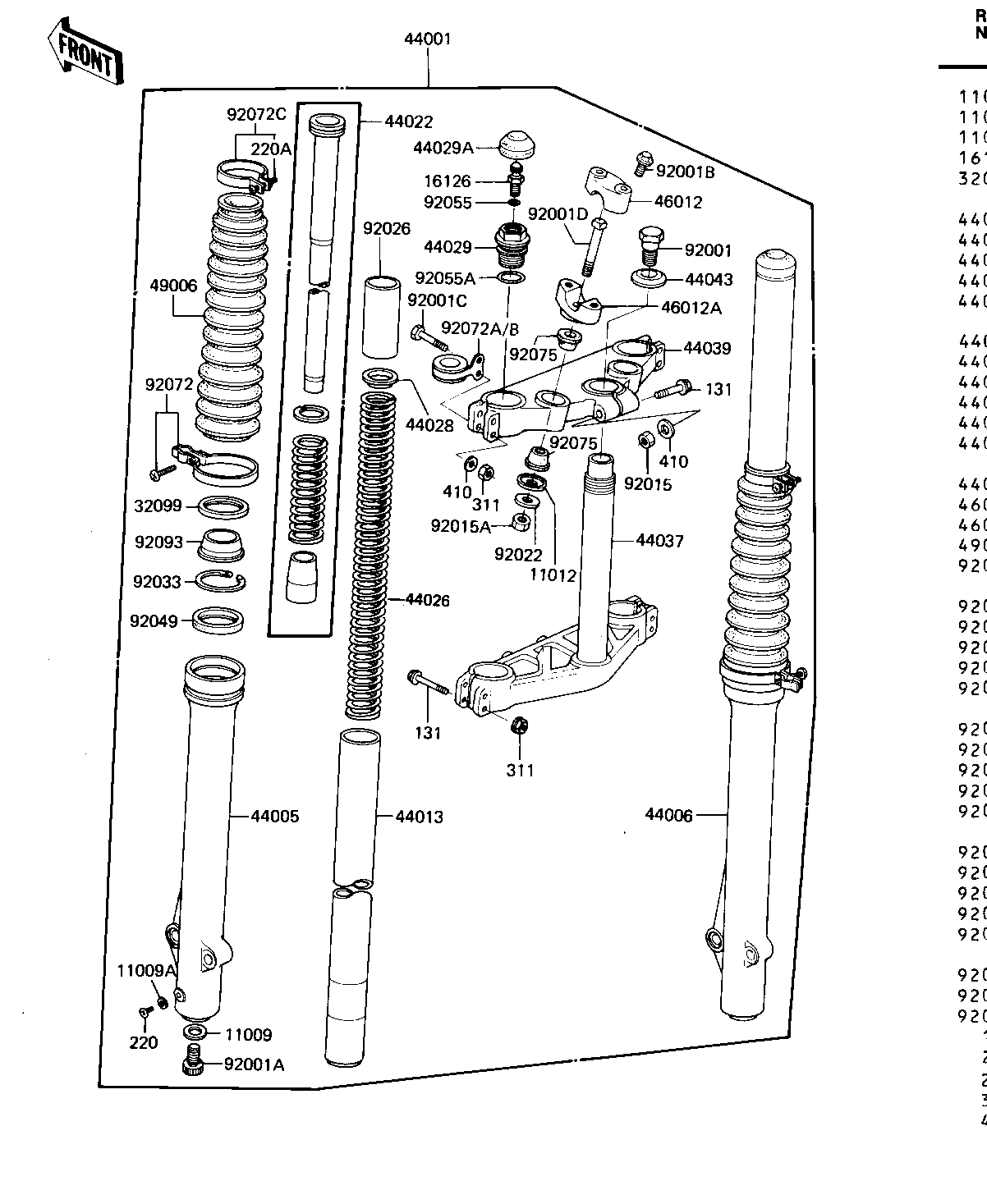

1982 KDX250 - FRONT FORK ('82 KDX250-B2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER 11009 11009-1127 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
COVER-DAMPER RUBBER 11012 11012-1165 2
VALVE ASSY,AIR 16126 16126-1003 2
CASE,DUST SHIELD 32099 32099-1013 2
FORK-FRONT 44001 44001-1334 1
TUBE,LH,FORK OUTER 44005 44005-1095 1
TUBE,RH,FORK OUTER 44006 44006-1095 1
TUBE,FORK INNER 44013 44013-4001 2
CYLINDER-FORK 44022 44022-4001 2
SPRING,FORK INNER 44026 44026-4001 2
GUIDE,FORK SPRING 44028 44028-1003 2
CAP,FORK TOP 44029 44029-1008 2
CAP,RUBBER,FORK TOP 44029A 44029-1009 2
STEM,STEERING 44037 44037-1065 1
BRACKET-UPPER 44039 44039-1040 1
WASHER 44043 44043-052 1
HOLDER,HANDLE BAR 46012 46012-1003 2
HOLDER HANDLE 46012A 46012-1012 2
BOOT,FORK 49006 49006-1174 2
BOLT,FORK TOP 92001 44041-065 1
BOLT,FORK CYLINDER 92001A 92001-1186 2
BOLT 92001B 92001-1278 4
BOLT FLANGED 8X55 92001C 92001-1398 4
BOLT 92001D 92001-1436 2
NUT,LOCK,8MM 92015 92015-1124 1
NUT 92015A 92015-1142 2
WASHER,FORK OUT PIPE 92022 92022-1262 2
SPACER,FORK SPRING 92026 92026-4002 2
SNAP RING,FORK OUT TU 92033 92033-1035 2
OIL SEAL,FORK OUT TUB 92049 92049-1042 2
"0" RING,AIR VALVE 92055 92055-1018 2
"0" RING,FORK TOP CAP 92055A 92055-1050 2
CLAMP,BOOT,L.H 92072 92072-1026 2
CLAMP,CABLE 92072A 92072-1027 1
CLAMP,CABLE 92072B 92072-1040 1
BAND,BOOT 92072C 92072-1046 2
DAMPER,RUBBER 92075 92075-1307 4
DUST SHIELD,FORK OUTR 92093 92093-1035 2
BOLT,FLANGED,8X55 131 130G0855 5
SCREW PAN HEAD 4X8 220 220B0408 2
SCREW-PAN-CROS 220A 220B0420 2
NUT 8MM 311 311G0800 8
WASHER PLAIN 8MM 410 410B0800 7
