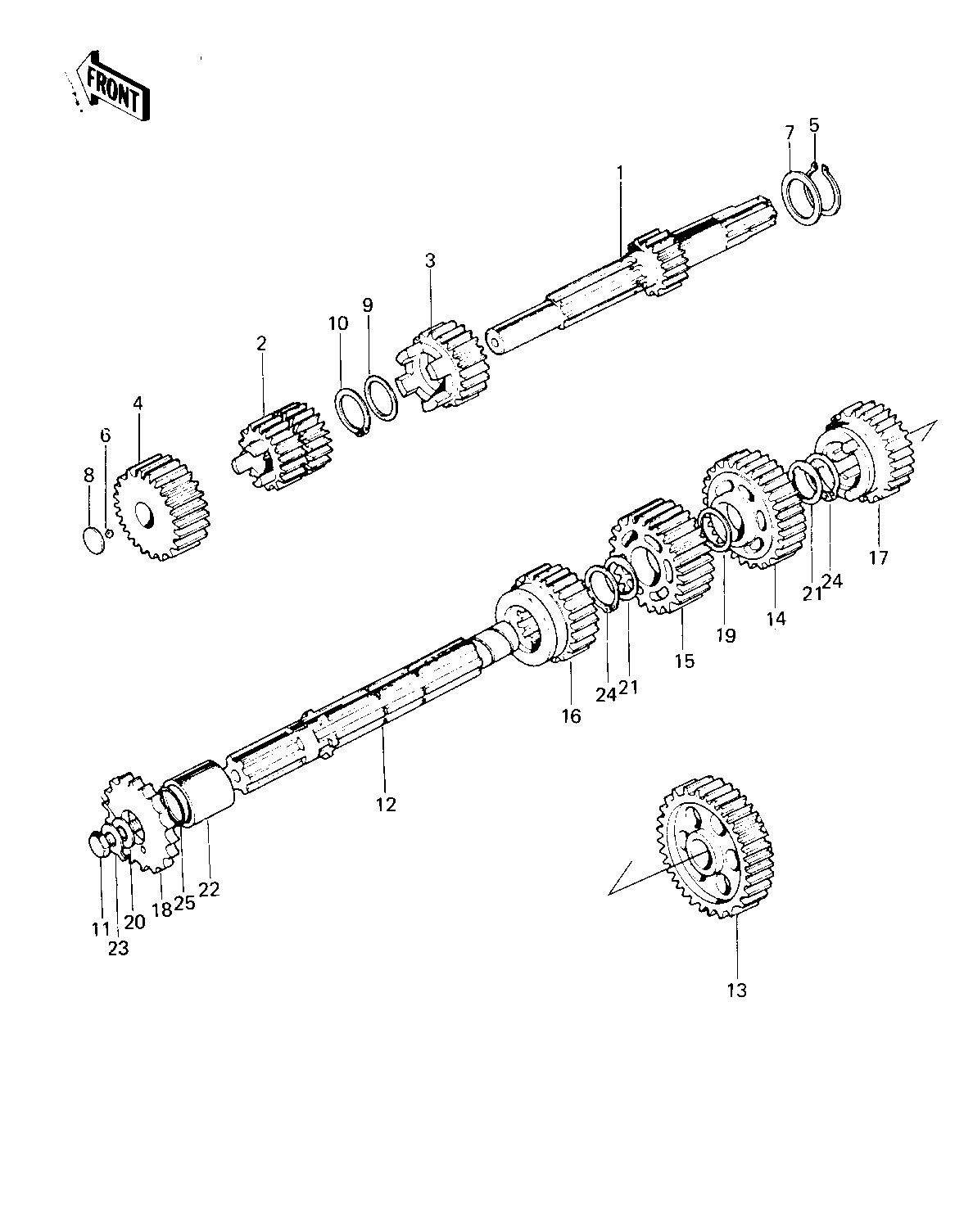

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,DRIVE | 1 | 13127-1017 | 1 | ||
| 2ND&3RD GEAR,DRIVE | 2 | 13129-1052 | 1 | 17T 20T | |
| 4TH GEAR,DRIVE | 3 | 13129-1053 | 1 | 22T | |
| GEAR,INPUT TOP,24T | 4 | 13129-1927 | 1 | 24T | |
| CIRCLIP 16MM | 5 | 480J1600 | 1 | ||
| BALL STEEL 7/32' | 6 | 600A0700 | 1 | ||
| WASHER THRUST | 7 | 92022-053 | 1 | ||
| WASHER THRUST | 8 | 92022-115 | 1 | ||
| WASHER THRUST | 9 | 92022-118 | 1 | ||
| CIRCLIP | 10 | 92033-014 | 1 | ||
| BOLT-SMALL-UPSET,8X16 | 11 | 115G0816 | 1 | ||
| BOLT,UPSET,8X16 | 11 | 92001-1368 | 1 | E/NO 005471 | |
| SHAFT OUTPUT | 12 | 13128-021 | 1 | ||
| LOW GEAR OUTPUT SHAFT | 13 | 13129-010 | 1 | 35T | |
| 2ND GEAR OUTPUT SHAFT | 14 | 13131-008 | 1 | 30T | |
| 3RD GEAR OUTPUT SHAFT | 15 | 13133-005 | 1 | 26T | |
| TOP GEAR OUTPUT SHAFT | 16 | 13137-012 | 1 | 23T | |
| GEAR-TRANSMISSION SPU | 17 | 13129-1708 | 1 | 24T | |
| SPROCKET-OUTPUT,14T | 18 | 13144-1058 | 1 | ||
| ENGINE SPROCKET,1ST | 18 | 13144-054 | 1 | ||
| ENGINE SPROCKET,13T | 18 | 13144-053 | 1 | ||
| WASHER THRUST | 19 | 92022-146 | 1 | ||
| WASHER,ENGINE SPRCKT | 20 | 92022-266 | 1 | ||
| WASHER-LOCK | 21 | 92024-030 | 2 | ||
| COLLAR,ENG SPROCKET | 22 | 92027-1595 | 1 | ||
| WASHER,LOCK,8MM | 23 | 92030-012 | 1 | ||
| CIRCLIP | 24 | 92033-014 | 2 | ||
| "0" RING | 25 | 92055-022 | 1 |
