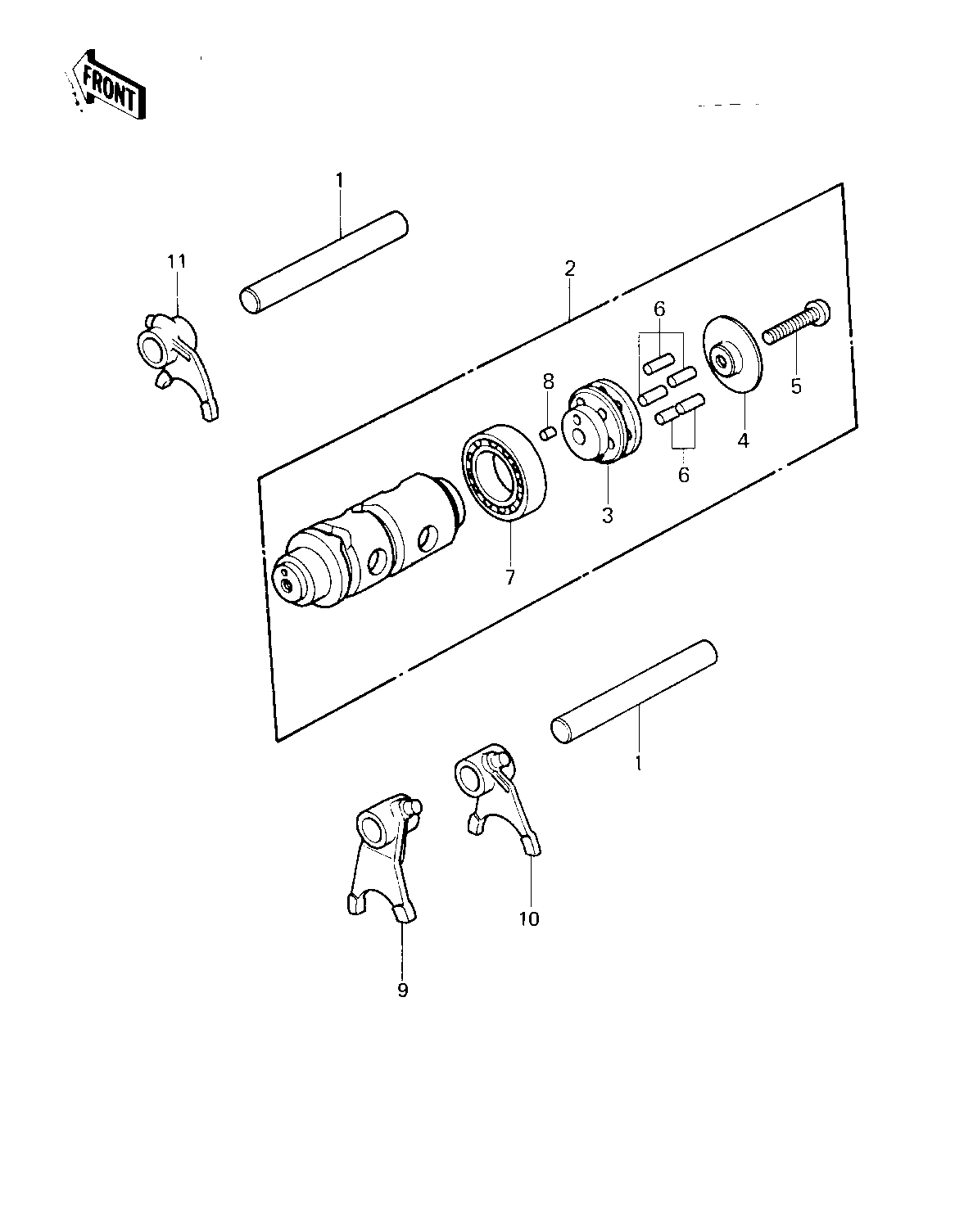

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RODSHIFT,SHORT 1 13209-014 2 L = 80 M/M
DRUM-ASSY-CHANGE 2 13239-5001 1
DRUM ASSY,GEAR CHANGE 2 13239-1034 1 E/NO.005186
HOLDER,GEAR CHANG DRM 3 13091-1059 1
HOLDER 3 13091-1077 1 USE FOR 13239-1034
PLATE CHANGE DRUM PIN 4 13142-008 1
HOLDER,CHANGE DRUM 4 13142-014 1 USE FOR 13239-1034
SCREW PAN HEAD 6X30 5 220B0630 1
BOLT,SOCKET,6X30 5 120P0630 1 USE FOR 13239-1034
PIN,GEAR CHANGE DRUM 6 92042-042 5
BEARING,BALL,#6905 7 92045-036 1
BEARING BALL #6004 7 601B6004 1 USE FOR 13239-1034
PIN-DOWEL,4X6 8 610A0406 1
SHIFT FORK,LOW&2ND 9 13140-1026 1
SHIFT FORK,3RD 10 13140-1027 1
SHIFT FORK,4TH&TOP 11 13140-1028 1
