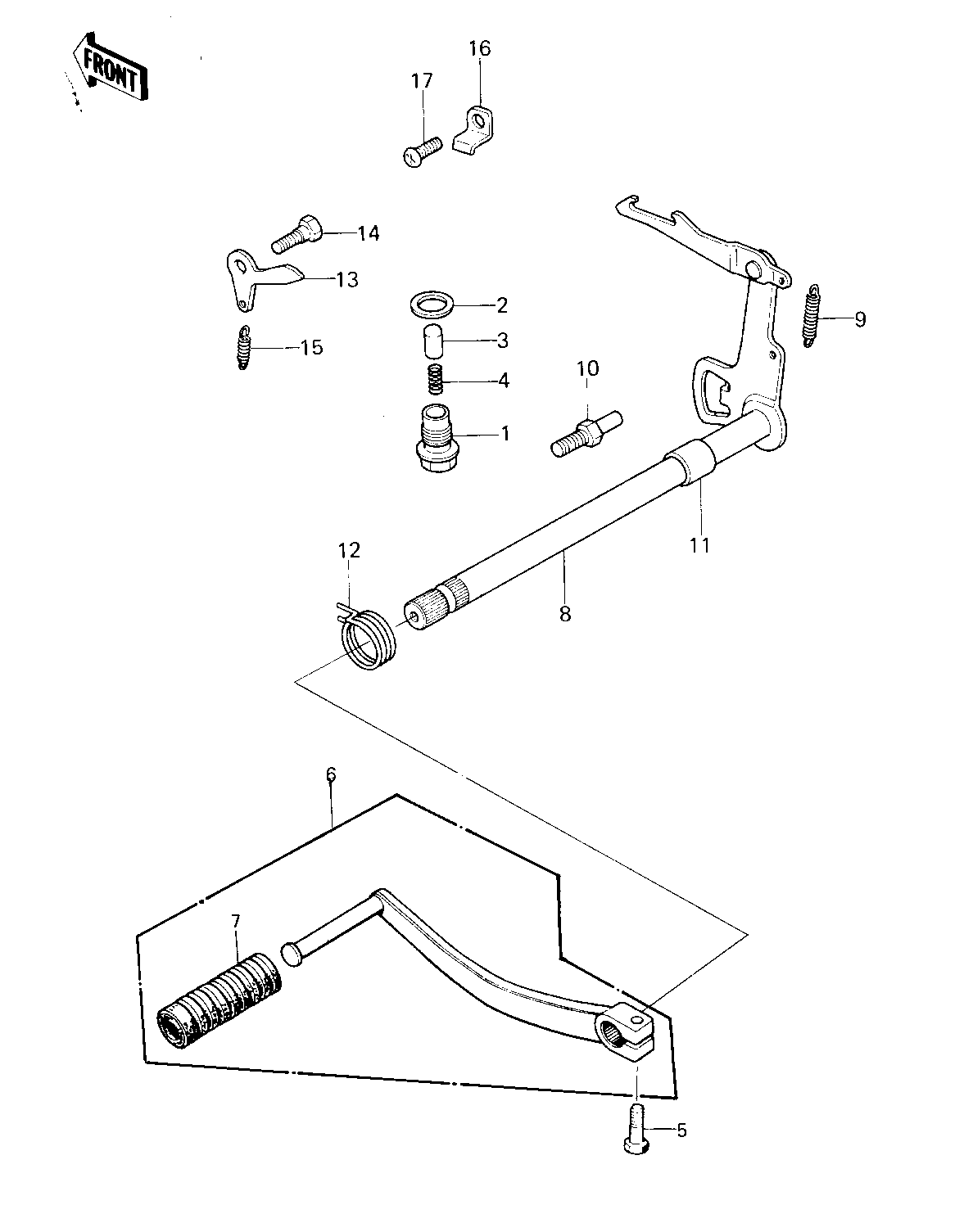

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,NEUTRAL POSITION 1 92001-182 1
WASHER,PLAIN 2 92022-324 1
PIN,NEUTRAL POSITIONG 3 92043-131 1
BALL,STEEL,13/32" 3-1 600A1300 1
SPRING 4 92081-112 1
BOLT-UPSET,6X20 5 112G0620 1
PEDAL SET GEAR CHANGE 6 13242-004 1
RUBBER CHANGE PEDAL 7 13157-004 1
LEVER-COMP CHANGE 8 13161-5001 1
SPRING,CHANGE LEVER 9 92144-1720 1
BOLT,RETURN SPRING 10 92001-1401 1
COLLAR 11 92027-121 1
SPRING,TENTION 12 92081-1129 1
LEVER,GEAR CHANGE DRM 13 13168-1046 1
BOLT,CHANGE DRUM LEVE 14 92150-1450 1
SPRING,CHNG DRUM LEV 15 92083-012 1
PLATE,GEAR CHANGE DRM 16 13169-1201 1
PLATE,GEAR CHANGE 16 13169-1253 1 E/NO.005186
SCREW PAN HEAD 6X12 17 220B0612 1
