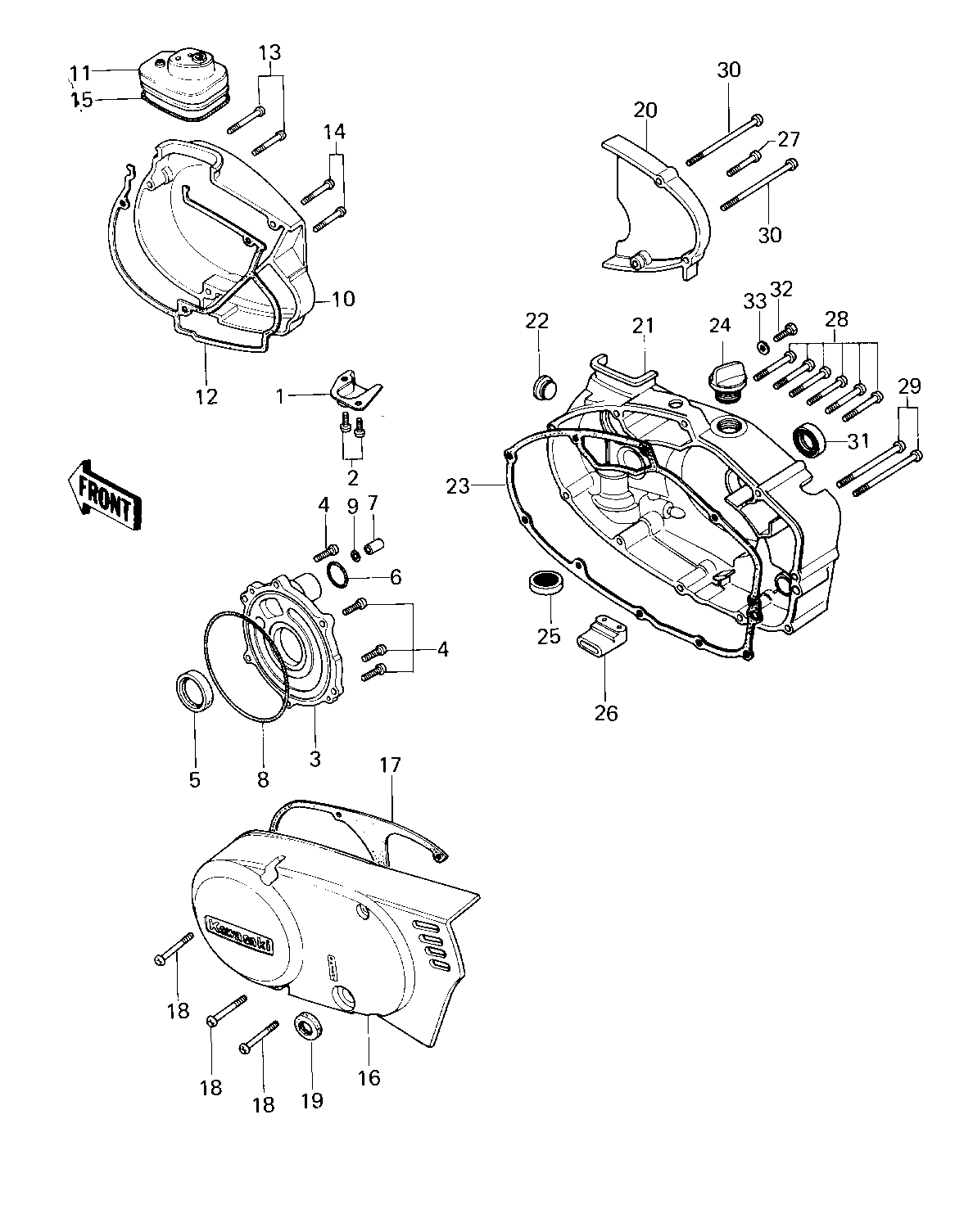

1980 KD80 - ENGINE COVERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,CLUTCH CABLE 1 14025-1137 1
SCREW PAN HEAD 6X12 2 220B0612 2
COVER,ROTRY DISC VALV 3 14019-056 1
SCREW PAN HEAD 6X20 4 220B0620 6
SEAL-OIL 5 92049-1250 1
"0" RING,26MM 6 670B3026 1
PIN DOWEL 8X16 7 92042-017 1
"0" RING,100MM 8 92055-010 1
"0" RING,8MM 9 92055-029 1
COVER,CARBURETOR 10 14030-1011 1
CAP,CARBURETOR 11 14038-035 1
GASKET,CARBURETOR COV 12 11060-1201 1
SCREW PAN HEAD 6X20 13 220B0620 2
SCREW PAN HEAD 6X35 14 220B0635 1
SPRING COIL 15 92081-047 1
COVER,L.H.ENGINE 16 14031-1043 1
GASKET,GENERATOR COVE 17 11060-1202 1
SCREW PAN HEAD 6X45 18 220B0645 3
OIL SEAL SB12205 19 92049-004 1
COVER,OIL PUMP 20 14025-1185 1
COVER,R.H.ENGINE 21 14032-1029 1
CAP CARB MOUNT HOLE 22 14039-001 1
GASKET,CLUTCH COVER 23 11060-1198 1
FILLER,OIL 24 16115-018 1
DRAIN,FUEL 25 16116-006 1
GROMMET,OVER FLOW 26 16136-007 1
SCREW PAN HEAD 6X20 27 220B0620 1
SCREW PAN HEAD 6X30 28 220B0630 6
SCREW PAN HEAD 6X45 29 220B0645 2
SCREW PAN HEAD 6X75 30 220B0675 2
OIL SEAL TB14257 31 653B142507 1
BOLT,HEX HEAD,6X14 32 92001-121 1
WASHER OIL PUMP BANJO 33 92022-077 1
