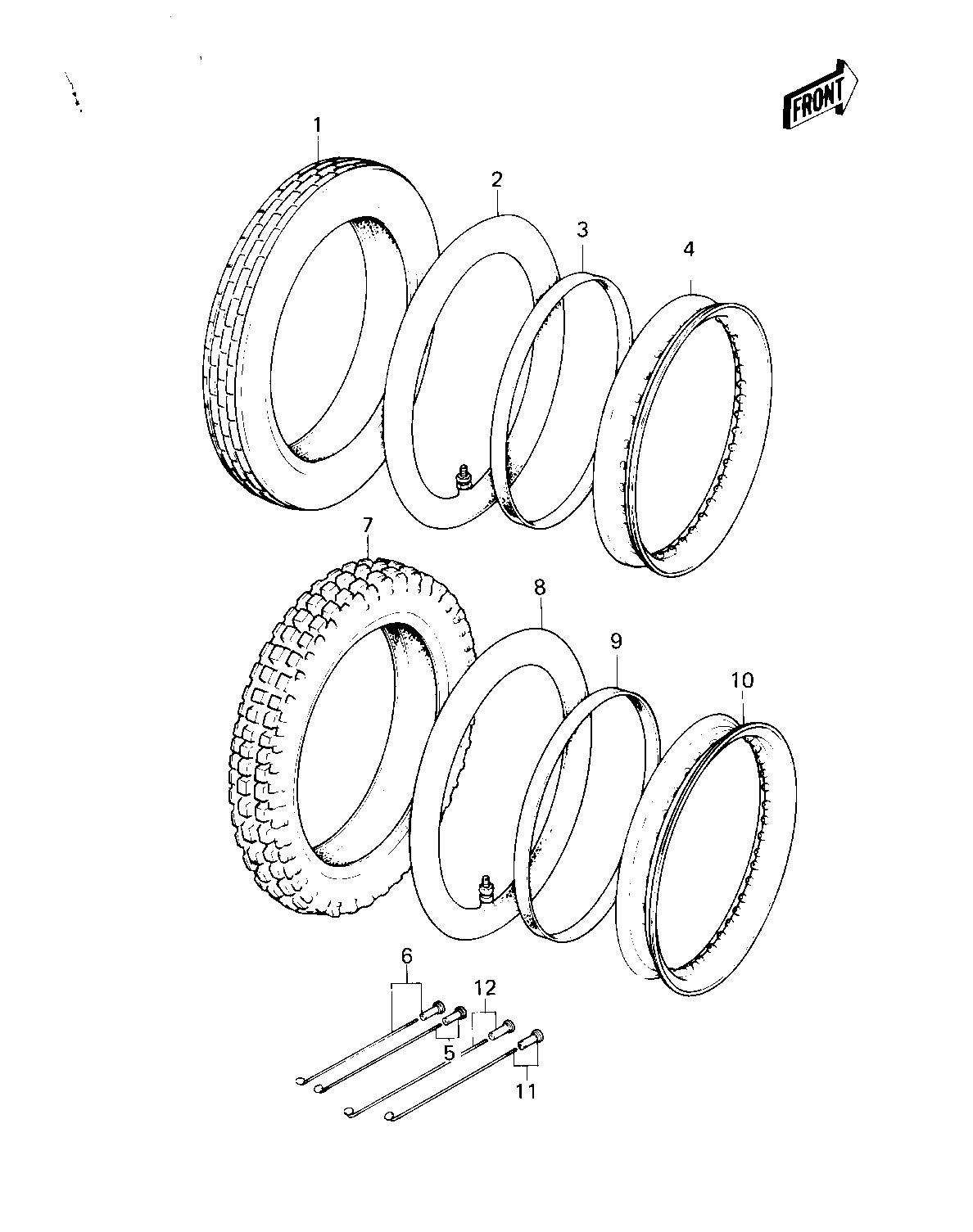

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
*** N.L.A.*** (Canada) 1 41017-014 1
TUBE 225/250-16 2 41022-041 1
BAND,RIM,FRONT 3 41023-024 1
RIM,1.40X16W 4 41025-069 1
SPOKE-ASY,FR INNER 5 41027-065 18
SPOKE-ASY FR OUTER 6 41028-065 18
TIRE 275-14 K250 R 7 41002-1271 1
TUBE 275/410/425-14 8 41022-042 1
BAND,RIM,4.10-14 9 41023-1025 1
RIM,1.60X14W 10 41025-070 1
SPOKE-ASY,RR INNER 11 41027-066 18
SPOKE-ASY RR OUTER 12 41028-066 18
