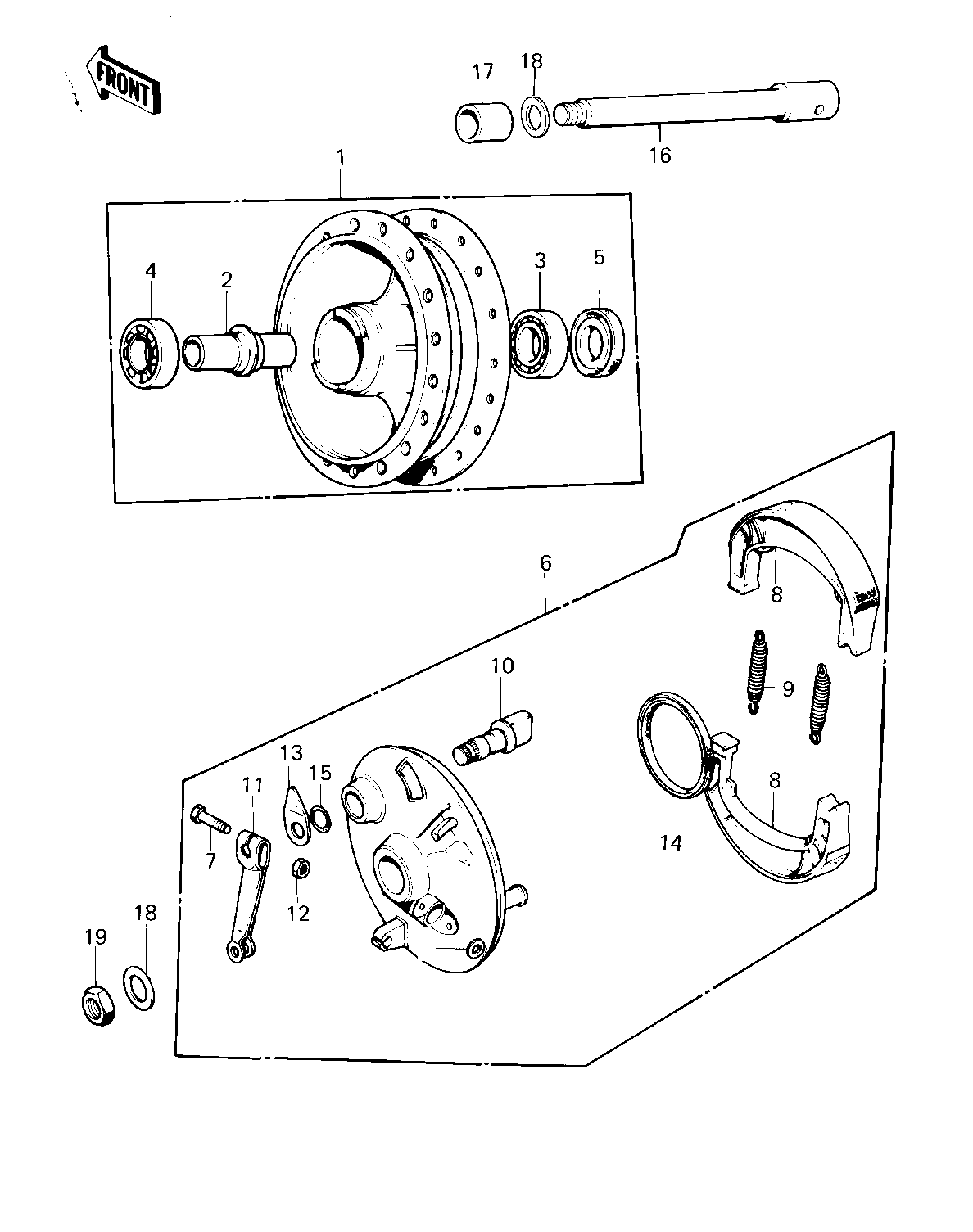

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM-ASSY,FR BRK 1 41034-1040 1
SPACER FRONT HUB 2 41039-002 1
BEARING BALL #6200 3 601B6200 1
BEARING BALL #6300Z 4 601B6300Z 1
OIL SEAL,TC17317 5 92050-063 1
PANEL-ASY,FR BRK BUFF 6 41035-069-80 1
BOLT-UPSET 7 112G0630 1
SHOE-BRAKE 8 41048-1085 2
SPRING,BRAKE SHOE 9 92081-1766 2
CAM SHAFT-FRONT BRAKE 10 41050-018 1
LEVER FRONT BRAKE CAM 11 41053-005 1
NUT,6MM 12 41072-007 1
INDICATOR,FR BK SHOE 13 41085-013 1
OIL SEAL BRAKE PANEL 14 92050-002 1
"0" RING,11MM 15 92055-004 1
AXLE-FRONT 16 41068-039 1
COLLAR,FRONT AXLE 17 41069-026 1
WASHER PLAIN 10MM 18 411B1000 2
NUT 10MM 19 42045-005 1
