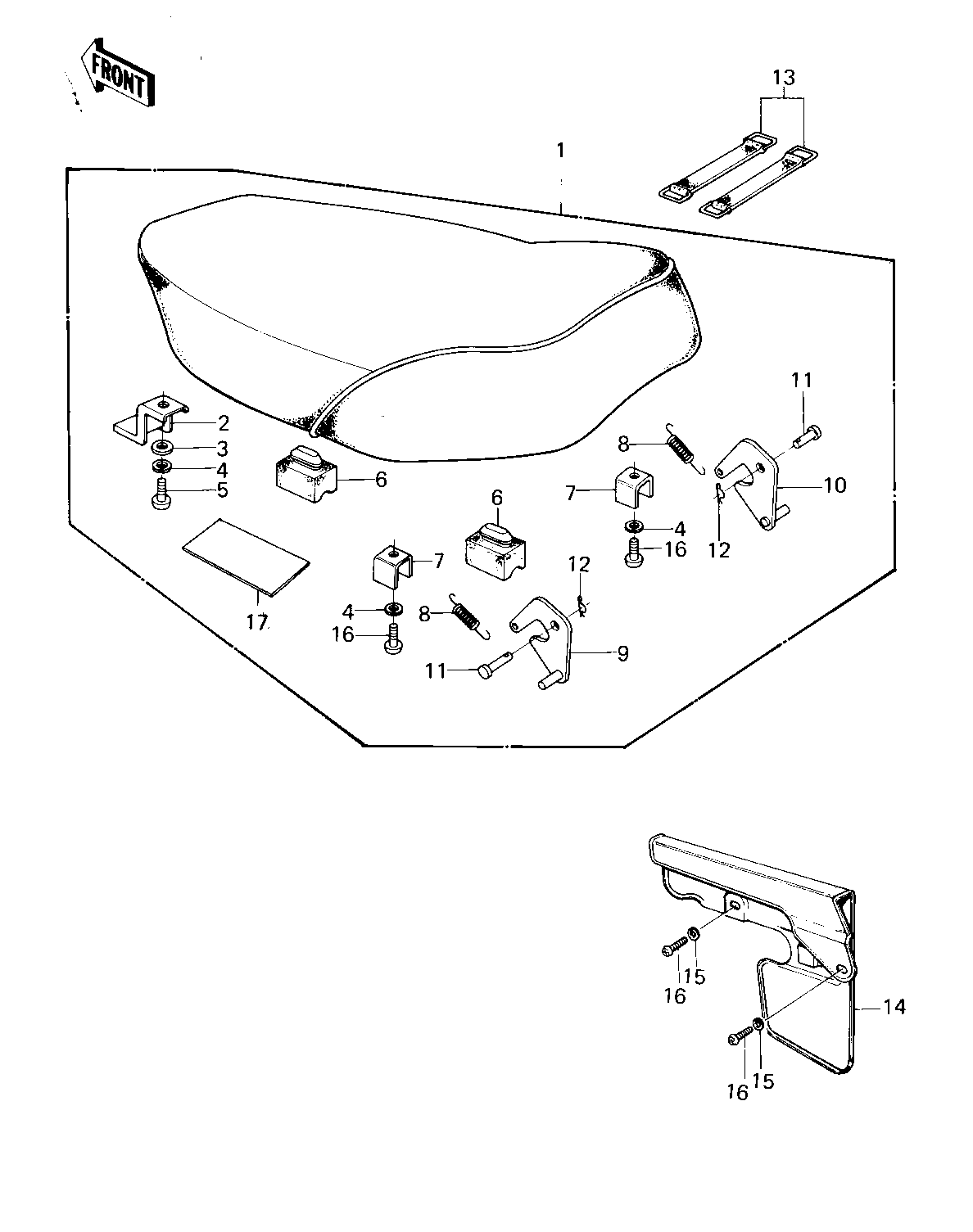

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY 1 53001-1460 1
BRACKET,SEAT 2 53032-004 1
WASHER 6.5X20X1.6T 3 92022-125 1
WASHER SPRING 6MM 4 461F0600 3
SCREW PAN HEAD 6X14 5 220B0614 1
DAMPER RUBBER 6 92075-099 6
SPRING,SEAT HOOK 7 53012-012 2
SPRING,HOOK 8 53012-013 2
HOOK,L.H SEAT 9 53008-031 1
HOOK,R.H SEAT 10 53008-032 1
PIN DUAL SEAT PIVOT 11 53011-001 2
PIN,SNAP 12 554A0600 2
BAND,TOOL 13 92072-066 2
CASE-CHAIN 14 36014-1024 1
WASHER SPRING 6MM 15 461F0600 2
SCREW PAN HEAD 6X12 16 220B0612 4
DAMPER RUBBER,BATERY 17 92075-224 1
