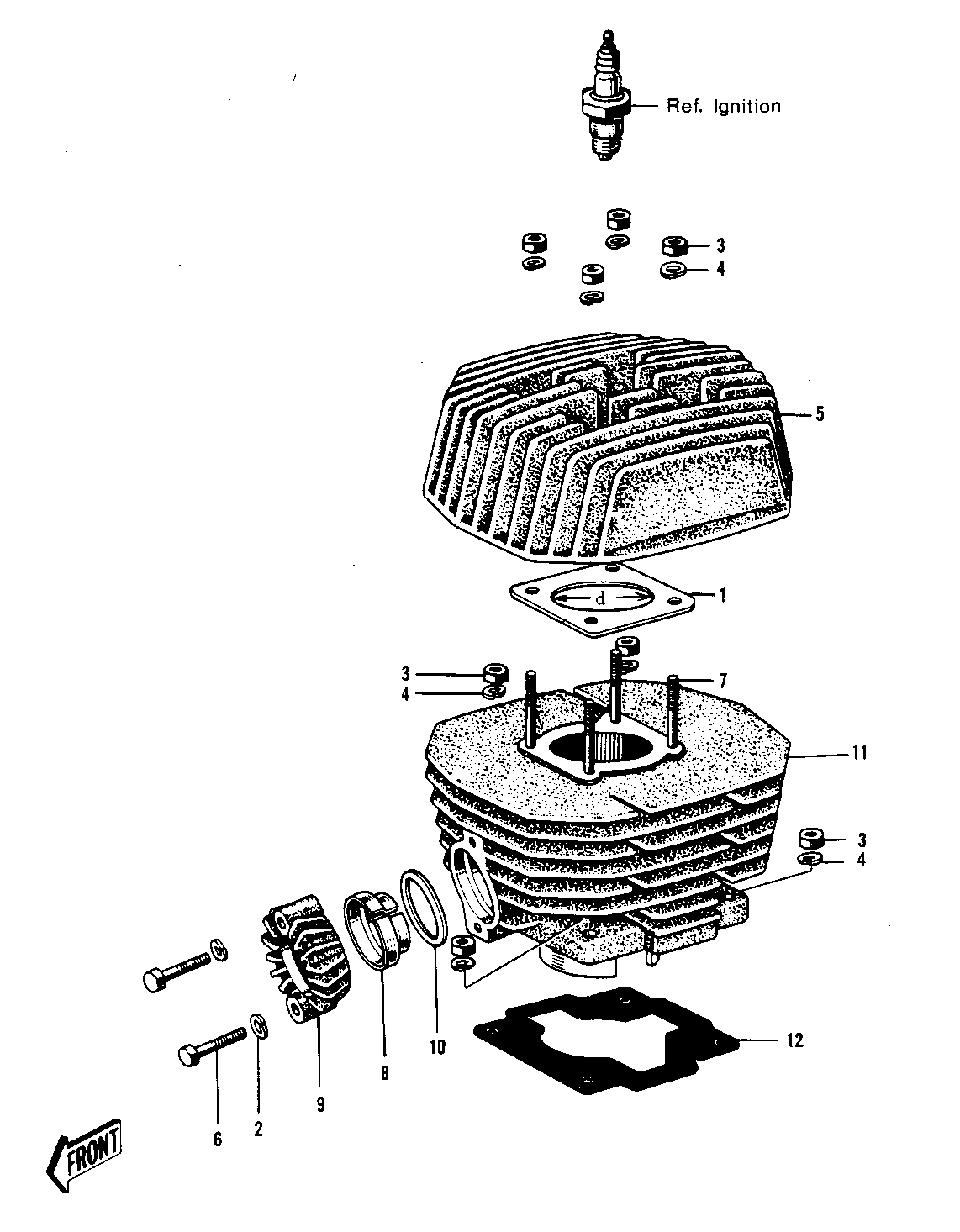

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET CYLINDER HEAD 1 11004-021 1 ID = 63
WASHER SPRING 6MM 2 461F0600 2
NUT,8MM 3 311B0800 8
WASHER SPRING 8MM 4 461F0800 8
WASHER SPRING 8MM 4 461F0800 AL
WASHER SPRING 8MM 4 461F0800 AL
CYLINDER HEAD 5 11001-031 1
BOLT-UPSET,6X40 6 112G0640 2
STUD 8X40 7 92004-003 4
INSERT EXH PIPE HOLD 8 18070-001 1
HOLDER EXHAUST PIPE 9 18069-017 1
GASKET EXHAUST PIPE 10 18067-008 1
CYLINDER 11 11005-041 1
GASKET CYLINDER BASE 12 11009-012 1
