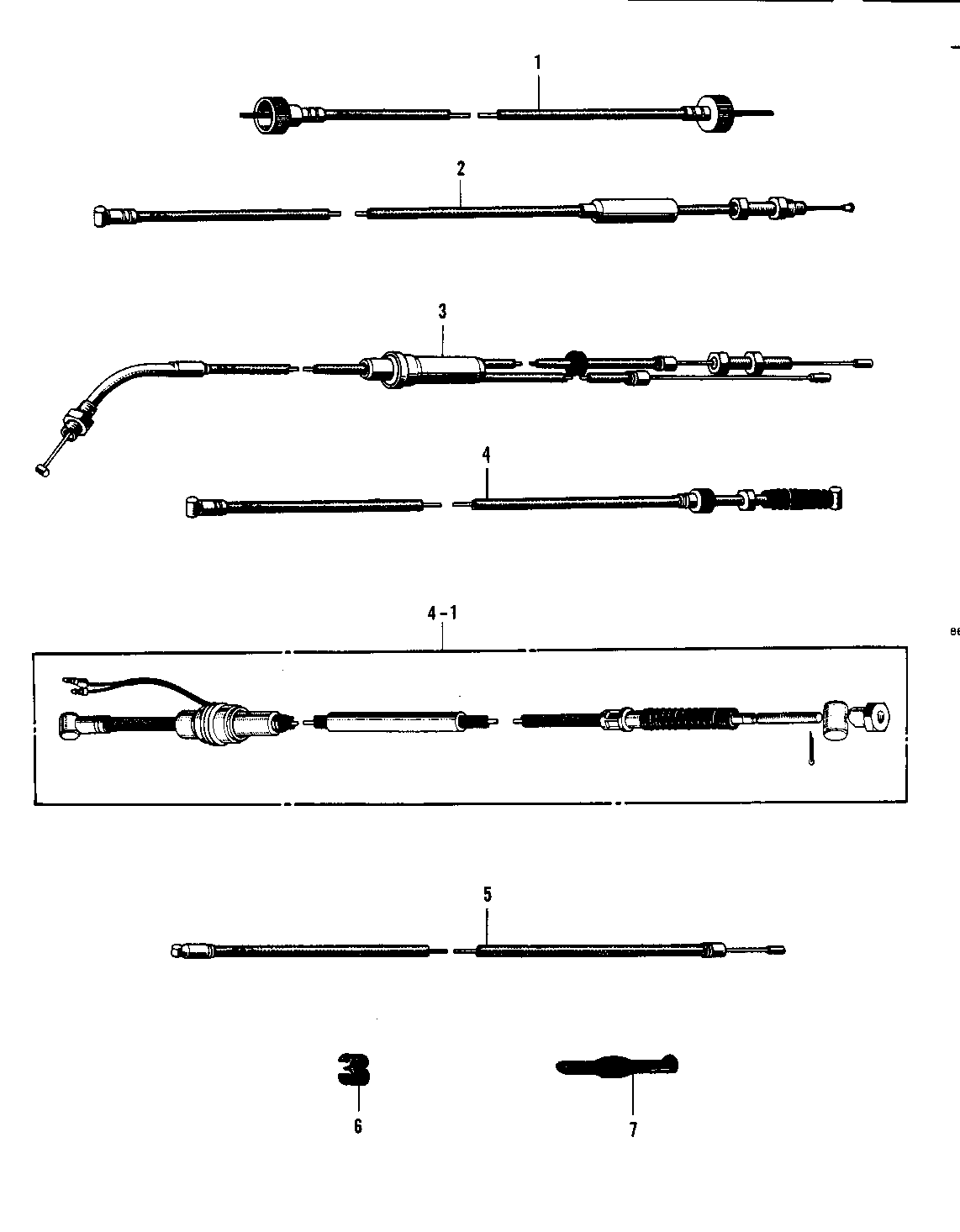

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,SPEEDOMETER 1 54001-028 (1 '68-'69,F.3.M
CABLE,SPEEDOMETER 1 54001-028 1 '70,N.F.3
CABLE CLTCH 2 54011-029 1 F.3.C
CABLE CONTROL 3 54012-036 1 F.3.A
CABLE FRONT BRAKE 4 54005-037 1 F.3.B., '68 MODEL
CABLE FRONT BRAKE 4-1 54005-037 (1 F.E.B., 69 MODEL
CABLE FRONT BRAKE 4-1 54005-037 1 N.F.3.B., '70 MODEL
CABLE STARTER 5 54017-017 1 F.3.S.
CLAMP-CABLE 6 92037-069 3
BAND RUBBER 7 92072-013 1
