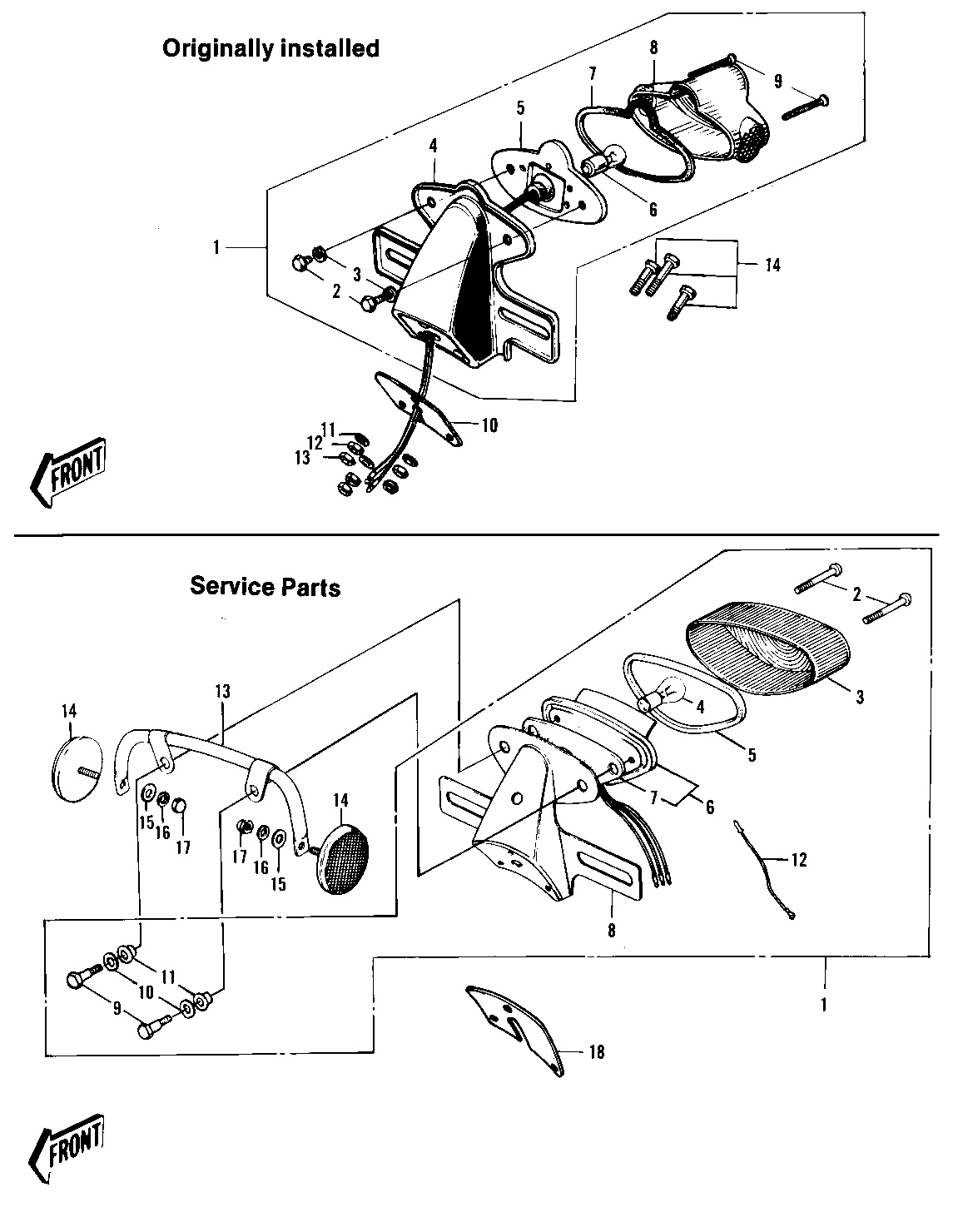

1968 Sidewinder - TAILLIGHT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP ASSY TAIL 1 23025-027 1 '69 ORIGINAL EQUIP.
LAMP ASSY TAIL BLACK 1 23025-029-10 1 '70 ORIGINAL EQUIP.
BOLT HEX HEAD 5X12 2 110N0512 2
BOLT HEX HEAD 2 110N0512A 2 I.S.O.
WASHER SPRING 5MM 3 461F0500 2
BKT LICENSE PLT 4 23036-002 1 '69
BKT LICENSE PLT BLACK 4 23036-007-10 1 '70
SOCKET TAIL LAMP 5 23027-009 1
BULB,12V 32/3CP 6 92069-059 1
UNAVAILABLE IN PRICE BOOK 7 23028-006 1
LENS TAIL LAMP 8 23026-010 1
SCREW PAN HEAD 4X50 9 220E0450 2
DAMPER TAIL LAMP SHCK 10 35039-001 1 6T
DAMPER-TAIL LAMP SHCK 10 35039-005 1 12T
DAMPER-TAIL LAMP SHCK 10 35039-005 1 8T
WASHER SPRING 6MM 11 461F0600 3
NUT 6MM 12 311B0600 3
NUT 6MM 13 312B0600 3
BOLT-UPSET,6X20 14 112G0620 3 FOR 35039-001, 005
BOLT-UPSET 14 112G0630 3 FOR 35039-003
TAIL LAMP ASSY, FLAT BLACK 1 23024-020-21 1 SERVICE PARTS ONLY
.SCREW 2 220R0455 4
SCREW 2 220R0455 AL
.LENS-TAIL LAMP 3 23026-022 1
.BULB,12V 32/3CP 4 92069-059 1
.GASKET-TAIL LAMP LENS 5 23028-016 1
.CASE-TAIL LAMP 6 23027-029 1
.GASKET-TAIL LAMP CASE 7 23028-015 1
.BKT-LICENSE PLT,BLACK 8 23036-014-21 1
.BOLT 9 92001-111 2
.WASHER,8.5X20X1.6 10 92022-1561 2
.DAMPER RUBBER 11 92075-091 2
.WIRE IGNITION LEAD 12 26011-014 1
BRACKET-REFLECTOR 13 28013-002 1
REFLECTOR-REFLEX,REAR 14 28012-008 2
WASHER PLAIN 5MM 15 411B0500 2
WASHER SPRING 5MM 16 461F0500 2
NUT-CAP,5MM 17 322N0500 2
DAMPER-TAIL LAMP SHCK 18 35039-005 1 12T
DAMPER-TAIL LAMP SHCK 18 35039-005 1 81
