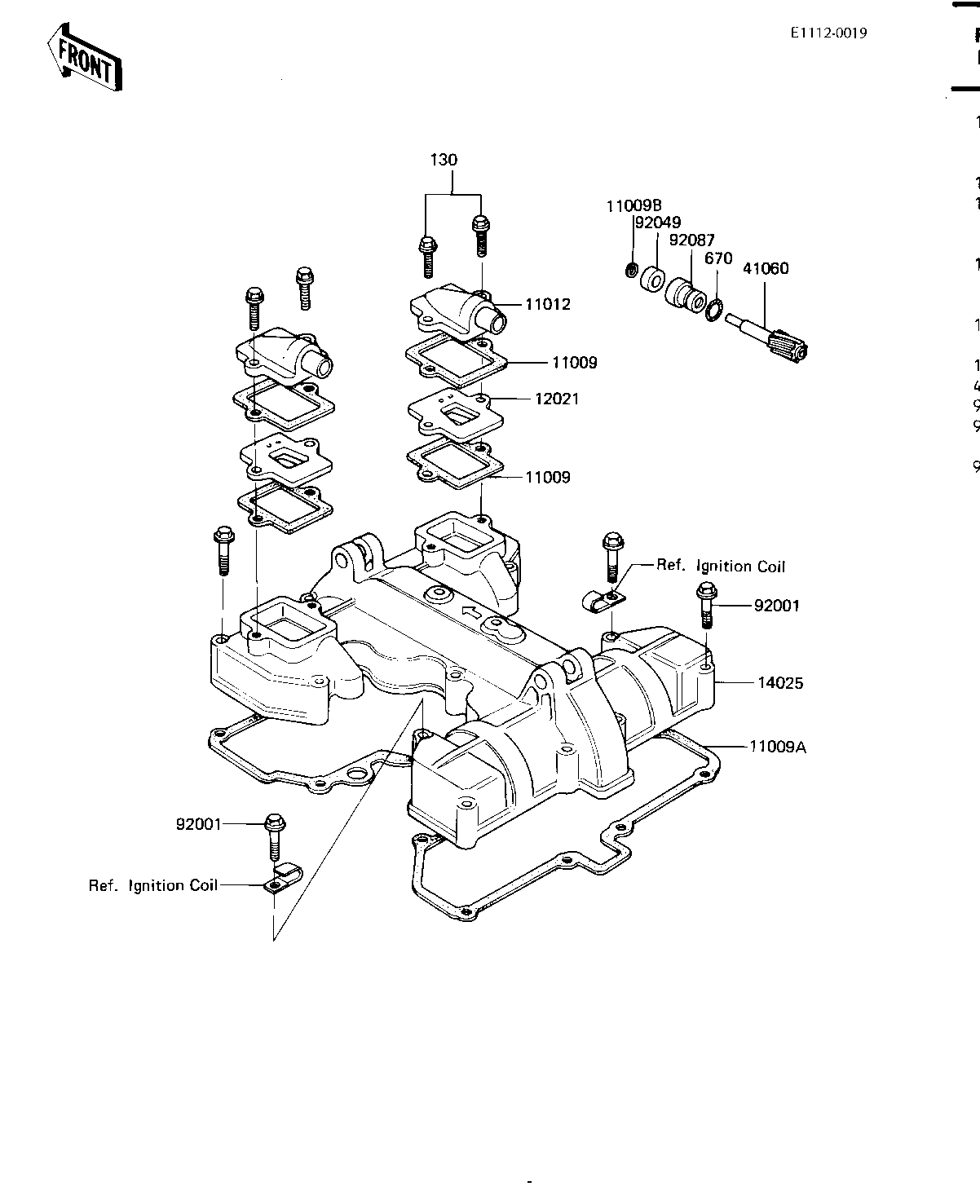

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,REED VALVE 11009 11009-1879 4
GASKET,CYLINDER HEAD 11009A 11009-1247 1
GASKET,TACHOMETER GE 11009B 92065-103 1
CAP,REED VALVE 11012 11012-5003 2
VALVE-ASSY-REED 12021 12021-1011 2
COVER 14025 14025-1333 1
GEAR,TACHOMETER 41060 13223-013 1
BOLT,HEX HEAD,6X45 92001 92003-092 14
OIL SEAL 92049 92050-075 1
GUIDE,TACHOMETER GEA 92087 92087-009 1
BOLT,FLANGED,6X20 130 130G0620 4
"O"RING 10MM 670 670B1510 1
