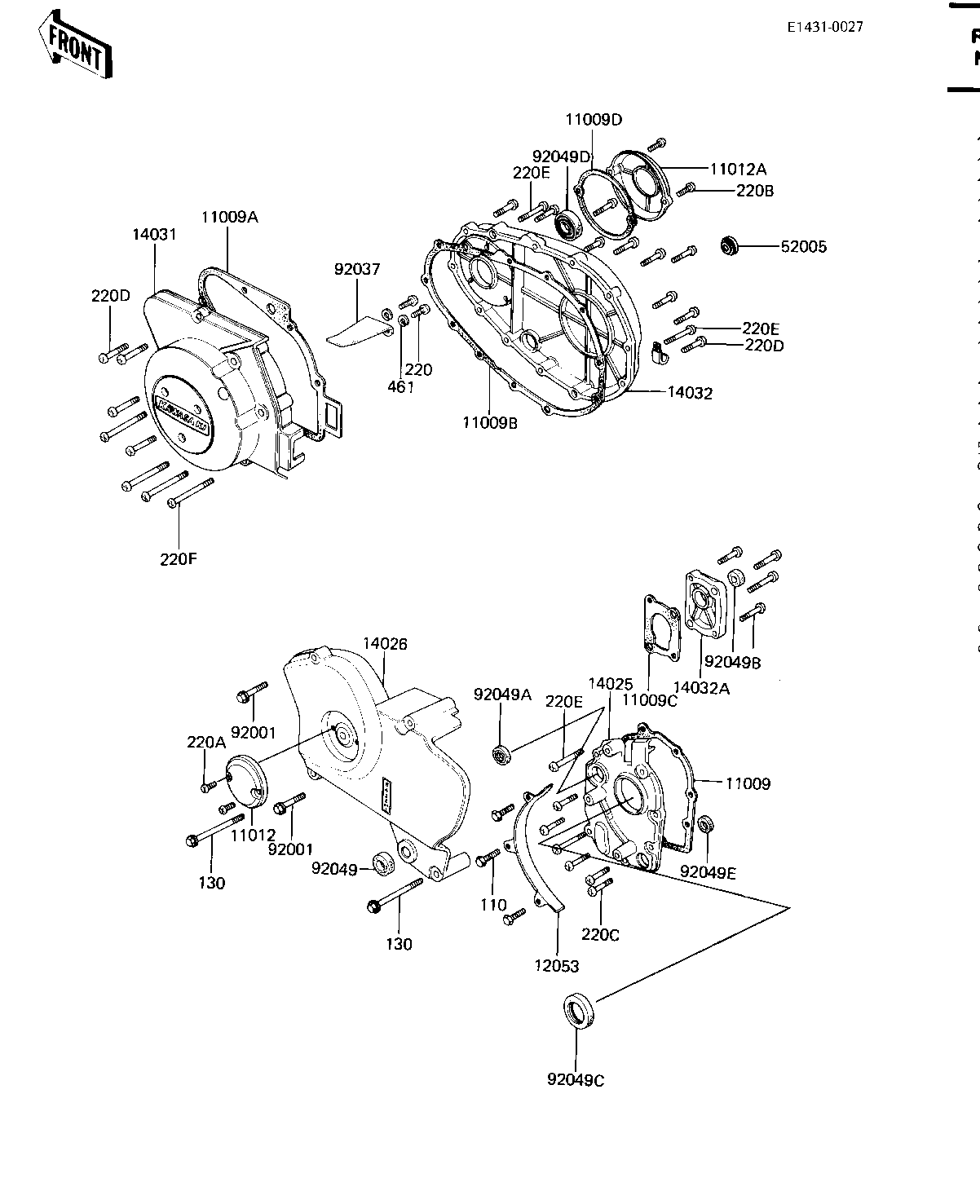

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TRANSMISSION | 11009 | 11060-1056 | 1 | ||
GASKET,GENERATOR COV | 11009A | 11009-1328 | 1 | ||
GASKET,R.H ENGINE CO | 11009B | 14046-033 | 1 | ||
GASKET,KICK COVER | 11009C | 14046-034 | 1 | ||
GASKET,BREAKER COVER | 11009D | 14050-010 | 1 | ||
CAP | 11012 | 11012-1210 | 1 | ||
COVERBRK POINT,BUFF | 11012A | 14027-019-80 | 1 | ||
GUIDE,CHAIN | 12053 | 12053-1006 | 1 | ||
COVER,MISSION | 14025 | 14024-011 | 1 | ||
COVER-CHAIN | 14026 | 14026-1058 | 1 | ||
COVER,GENERATOR | 14031 | 14031-1044 | 1 | ||
COVER,CLUTCH | 14032 | 14032-1031 | 1 | ||
COVER,KICK | 14032A | 14032-112-2H | 1 | ||
GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
BOLT, HEX HEAD, 6X34 | 92001 | 92003-159 | 2 | ||
CLAMP,GENERATOR WIRE | 92037 | 92037-1122 | 1 | ||
OIL SEAL,CLUTCH RELE | 92049 | 92049-1003 | 1 | ||
OIL SEAL,SD-8187 | 92049A | 92049-1017 | 1 | ||
OIL SEAL,SC22325 | 92049B | 92049-1048 | 1 | ||
OIL SEAL SC325210 | 92049C | 92050-024 | 1 | ||
OIL SEAL,R.H CRNKSFT | 92049D | 92050-065 | 1 | ||
OIL SEAL,TB13225.5 | 92049E | 92051-005 | 1 | ||
BOLT-UPSET 6X14 | 110 | 112B0614 | 3 | ||
BOLT-FLANGED,6X95 | 130 | 130G0695 | 2 | ||
SCREW PAN HEAD 5X12 | 220 | 220B0512 | 2 | ||
SCREW PAN HEAD 6X16 | 220A | 220B0616 | 2 | ||
SCREW PAN HEAD 6X18 | 220B | 220B0618 | 2 | ||
SCREW PAN HEAD 6X20 | 220C | 220B0620 | 5 | ||
SCREW PAN HEAD 6X30 | 220D | 220B0630 | 16 | ||
SCREW PAN HEAD 6X40 | 220E | 220B0640 | 6 | ||
SCREW PAN HEAD 6X60 | 220F | 220B0660 | 4 | ||
WASHER SPRING 5MM | 461 | 461F0500 | 2 |
