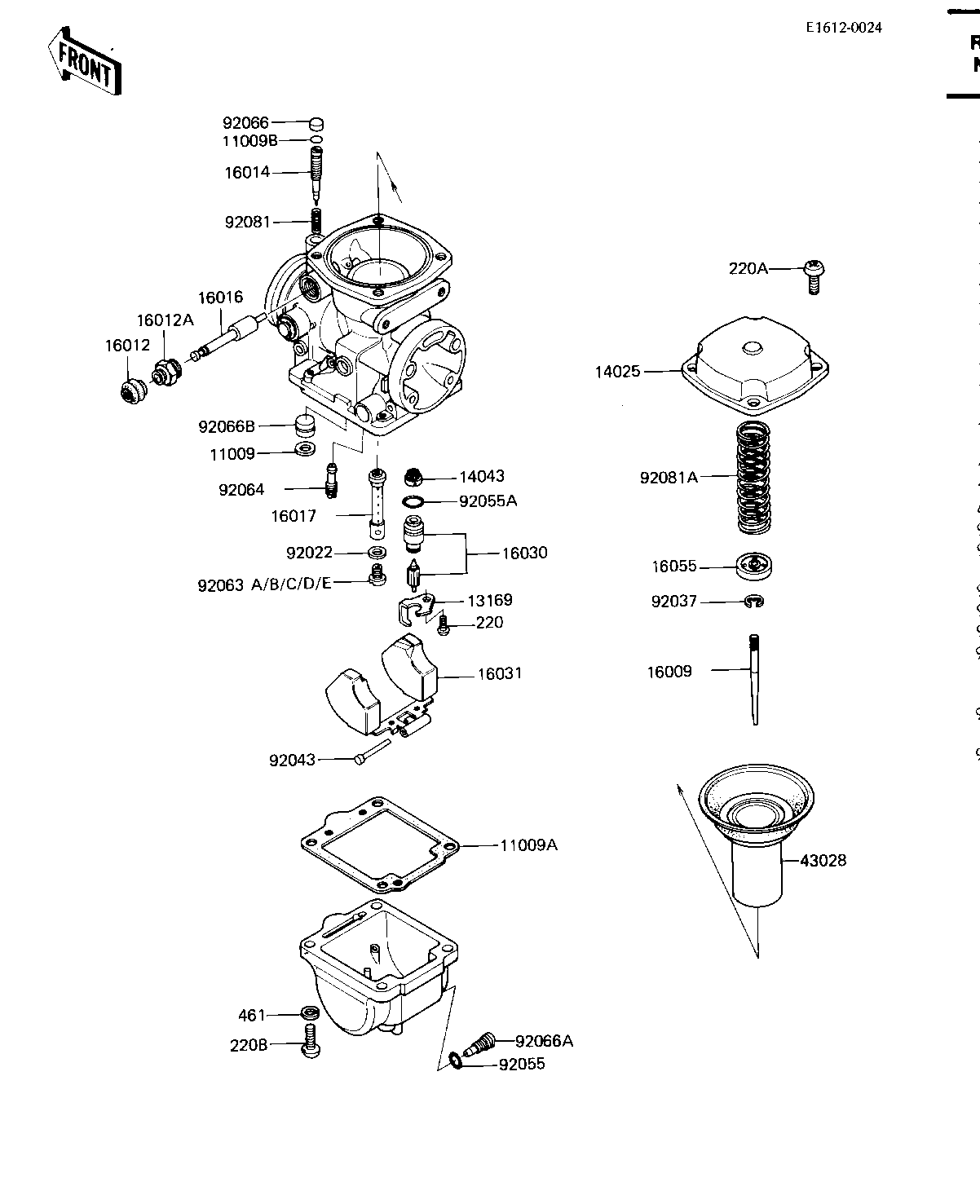

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,CARB. PLUG | 11009 | 11009-1240 | 2 | ||
GASKET,FLOAT CHAMBER | 11009A | 11009-1241 | 2 | ||
"O" RING | 11009B | 16038-022 | 2 | ||
PLATE | 13169 | 13169-1482 | 2 | ||
COVER | 14025 | 14025-1395 | 2 | ||
FILTER,FLOAT VALVE | 14034 | 14043-1010 | 2 | ||
NEEDLE-JET-5C50 | 16009 | 16009-1100 | 2 | ||
CAP-STARTER PLUNGER | 16012 | 16012-1010 | 2 | ||
CAP-STARTER PLUNGER | 16012A | 16012-1011 | 2 | ||
SCREW-PILOT AIR | 16014 | 16014-1014 | 2 | ||
PLUNGER | 16016 | 16016-1019 | 2 | ||
JET-NEEDLE,Y-9 | 16017 | 16017-1099 | 2 | ||
VALVE-FLOAT | 16030 | 16030-1016 | 2 | ||
FLOAT | 16031 | 16031-1013 | 2 | ||
PLATE,NEEDLE | 16055 | 16055-010 | 2 | ||
DIAPHRAGM | 43028 | 43028-1032 | 2 | ||
WASHER MAIN JET | 92022 | 16034-001 | 2 | ||
CIRCLIP | 92037 | 16008-014 | 2 | ||
PIN,FLOAT | 92043 | 16032-008 | 2 | ||
"0" RING | 92055 | 92055-044 | 2 | ||
"0" RING | 92055A | 92055-1105 | 2 | ||
MAIN JET,#110R | 92063A | 92063-1038 | 2 | (RACING USE ONLY) | |
JET-MAIN,#A120 | 92063B | 92063-1106 | 2 | (RACING USE ONLY) | |
JET-MAIN,#117.5 | 92063C | 92063-1107 | 2 | (RACING USE ONLY) | |
MAIN JET,A115 | 92063D | 92063-1109 | 2 | ||
JET-PILOT | 92064 | 92064-1039 | 2 | ||
PLUG,PILOT SCREW | 92066 | 92066-1051 | 2 | ||
SCREW,DRAIN | 92066A | 92066-1064 | 2 | ||
PLUG,CARBURETOR | 92066B | 92066-1086 | 2 | ||
SPRING,PILOT SCREW | 92081 | 16022-016 | 2 | ||
SPRING,DPHRGM VALVE | 92081A | 92081-1363 | 2 | ||
SCREW PAN HEAD 4X6 | 220 | 220B0406 | 2 | ||
SCREW PAN HEAD 5X10 | 220A | 220B0510 | 8 | ||
UNAVAILABLE IN PRICE BOOK | 220B | 214B0516A | 8 | ||
WASHER SPRING 5MM | 461 | 461F0500 | 8 |
