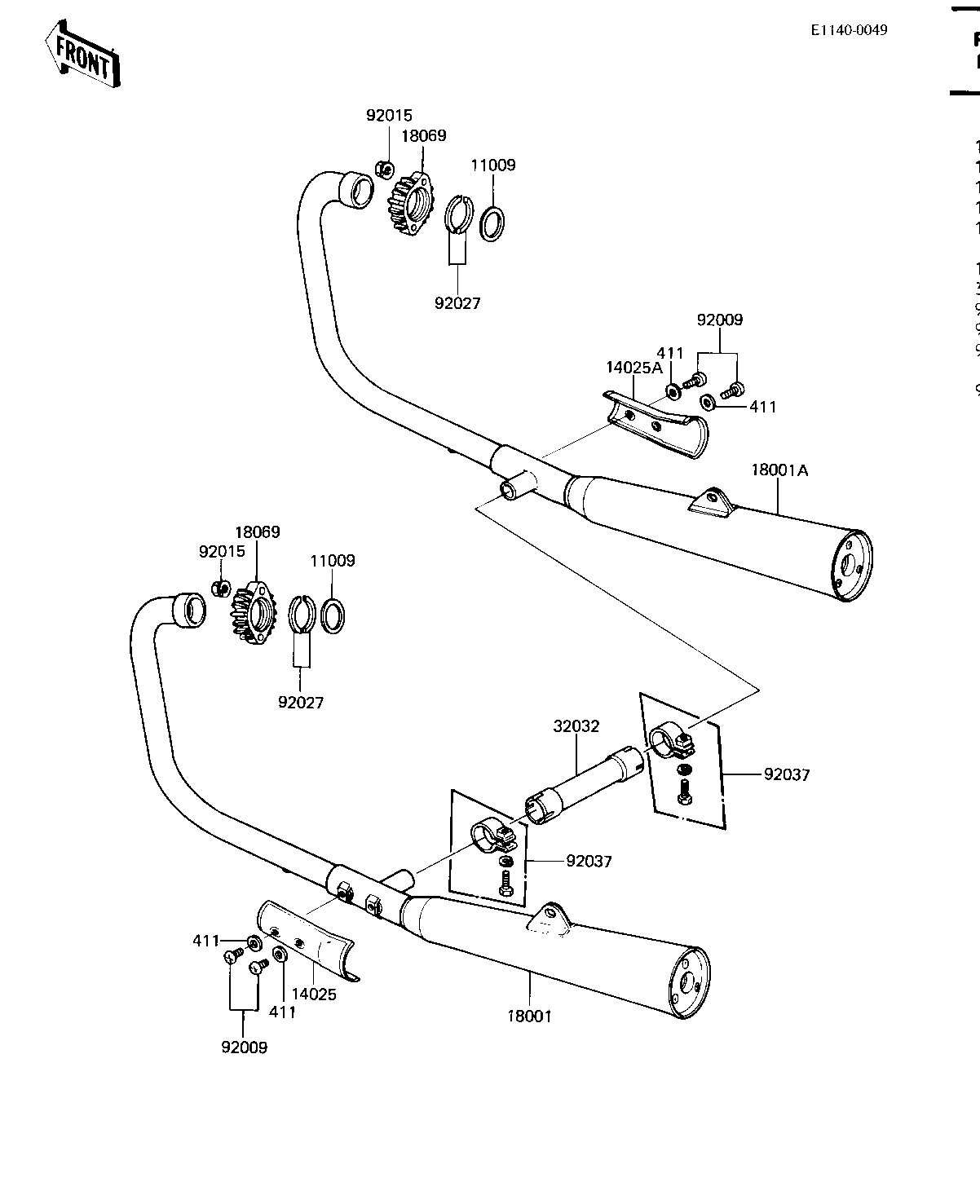

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11009 11009-1840 2
COVER,MUFFLER L.H 14025 14025-1194 1
COVER,MUFFLER R.H 14025A 14025-1195 1
MUFFLER,LH,KHI K041 18001 18001-1301 1
MUFFLER,RH,KHI K041 18001A 18001-1302 1
HOLDER,EXHAUST PIPE 18069 18069-060 2
PIPE 32032 32032-1752 1
SCREW,PAN HEAD,6X8 92009 92011-039 4
NUT-8MM 92015 92015-1143 4
COLLAR,EXHAUST PIPE 92027 92027-1241 4
CLAMP,MUFFLER,37MM 92037 92037-1243 2
WASHER-PLAIN,6MM 411 411D0600 4
