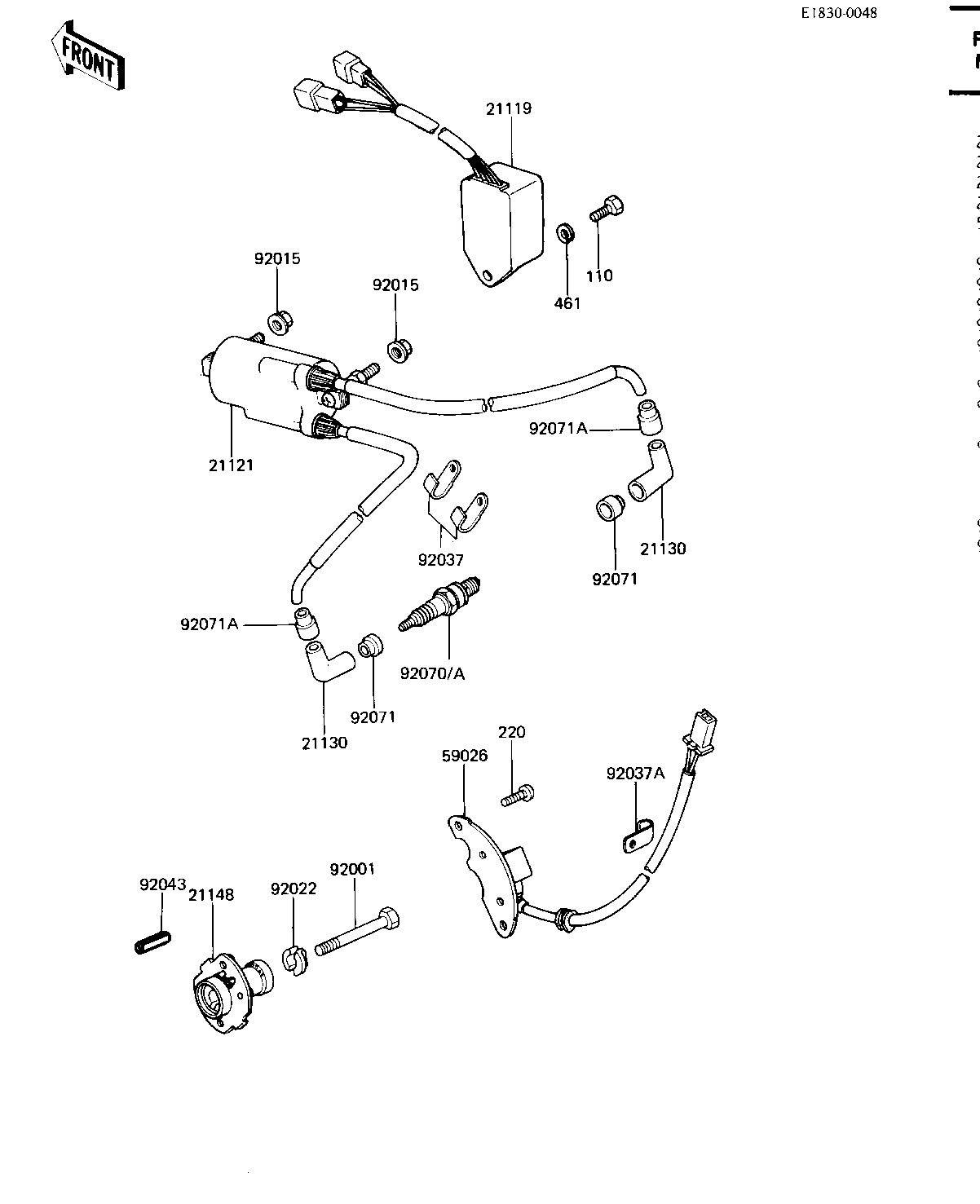

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
IGNITER 21119 21119-1022 1
COIL-IGNITION 21121 21121-1041 1
CAP-SPARK PLUG,RTFM2 21130 21130-1007 2
GOVERNOR-BREAKER 21148 21148-1024 1
COIL-PULSING 59026 59026-1010 1
BOLT-8X63 92001 92001-1397 1
NUT-6MM 92015 92015-1078 2
WASHER,SPARK ADVANCE 92022 92022-244 1
CLAMP,WIRING HARNESS 92037 21126-008 2
CLAMP,WIRING HARNESS 92037A 21126-008 2
PIN-SPRING,4X8 92043 555A0408 1
SPARK PLUG B6ES 92070 B6ES 2
GROMMET-PLUG CAP,A 92071 21131-004 2
GROMMET,SPARK PLG CA 92071A 21132-005 2
BOLT-UPSET,6X16 110 112G0616 1
SCREW PAN HEAD 5X12 220 220B0512 2
WASHER SPRING 6MM 461 461F0600 1
