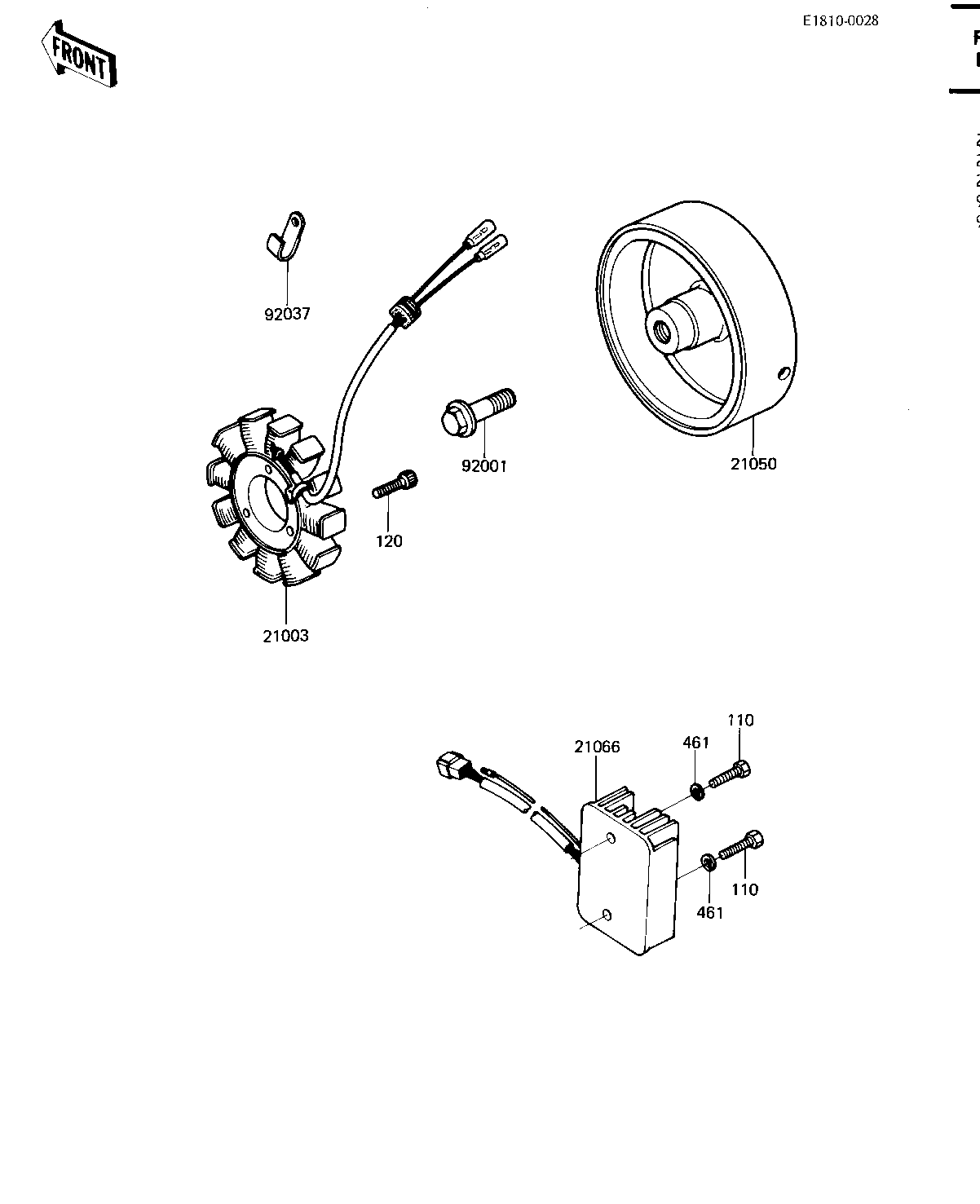

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR ASSY 21003 21003-1006 1
FLYWHEEL 21050 21050-1004 1
REGULATOR,VOLTAGE 21066 21066-1014 1
BOLT 92001 92001-1012 1
CLAMP,WIRING HARNESS 92037 21126-008 1
BOLT-UPSET,6X16 110 112G0616 2
BOLT,ALLEN,6X28 120 120P0628 3
WASHER SPRING 6MM 461 461F0600 2
